Shadowless lights · 9 models · from $99.00

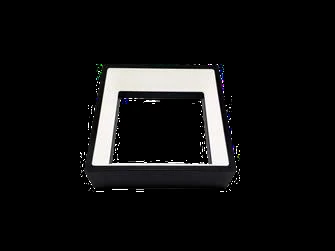

Square shadowless light (LS-FIF)
The Square shadowless light (LS-FIF) is a range of 9 shadowless lights from LumaSpec Vision, from $99.00. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Colour | Red, Green, Blue, White, Infrared, UV |
|---|---|
| Size | Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm, 400 mm + |
| Voltage | 24 V |
Features
- Higher uniformity
- Special diffuser plate for shadowless illumination
- Size can be customized according to different needs
Typical uses
- Detection of appearance defects in plastic parts, detection of bottle mouth defects
- Edge positioning of hardware parts
- Detection of surface dents, scratches and indentations
All 9 models in the Square shadowless light (LS-FIF)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-FIF4640 | 2.7 W | $99.00 | 15 in stock | View | ||
| LS-FIF5050 | 3.5 W | $109.00 | 24 in stock | View | ||
| LS-FIF78100 | 3.8 W | $209.00 | 19 in stock | View | ||
| LS-FIF100100 | 5 W | $209.00 | 25 in stock | View | ||
| LS-FIF120120 | 6.7 W | $269.00 | 27 in stock | View | ||
| LS-FIF80150 | 7.7 W | $369.00 | 20 in stock | View | ||
| LS-FIF100240 | 18.6 W | $709.00 | 23 in stock | View | ||
| LS-FIF300300 | 42.3 W | $1,009.00 | 26 in stock | View | ||
| LS-FIF200400 | 38.2 W | $1,629.00 | 20 in stock | View |
