Shadowless lights · 8 models · from $109.00

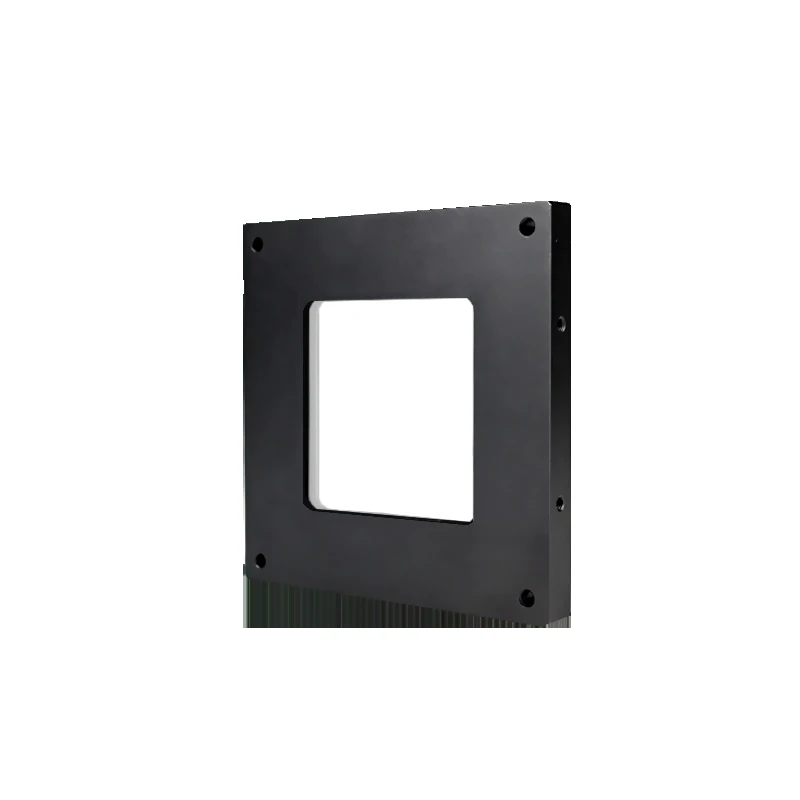

Flat shadowless light (FLS series)
The Flat shadowless light (FLS series) is a range of 8 shadowless lights from LumaSpec Vision, from $109.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 50 x 50 mm, 100 x 100 mm, 150 x 150 mm, 200 x 150 mm, 200 x 200 mm |
|---|---|
| Colour | Red, Blue, White |
| Voltage | 24 V |
| Connector | 3-pin flat |
Features
- Thin square body, 10-12.5 mm high, with a central viewing window
- FLS (dot) and 2FLS (no dot) versions (application example: bottle body character)
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
- Luminous size: 50mm*50mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
- Suitable for defect detection of objects with uneven surfaces, arc object surface feature detection,packaging text recognition and print detection,etc.
Typical uses
- Defect detection of objects with uneven surfaces
- Appearance inspection of electronic components
- Arc surface character detection, cylinder surface detection
- Packaging character recognition, canned surface printing detection
All 8 models in the Flat shadowless light (FLS series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-FLS5050 | 50 x 50 mm | 5.5 W | $109.00 | 9 in stock | View | |
| LS-2FLS5050 | 50 x 50 mm | 5.5 W | $109.00 | 12 in stock | View | |
| LS-FLS100100 | 100 x 100 mm | 8.5 W | $209.00 | 12 in stock | View | |
| LS-2FLS100100 | 100 x 100 mm | 8.5 W | $209.00 | 11 in stock | View | |
| LS-FLS150150 | 150 x 150 mm | 11 W | $359.00 | 7 in stock | View | |
| LS-2FLS150150 | 150 x 150 mm | 11 W | $359.00 | 9 in stock | View | |
| LS-FLS200150 | 200 x 150 mm | 12.5 W | $539.00 | 12 in stock | View | |
| LS-FLS200200 | 200 x 200 mm | 14 W | $539.00 | 9 in stock | View |
