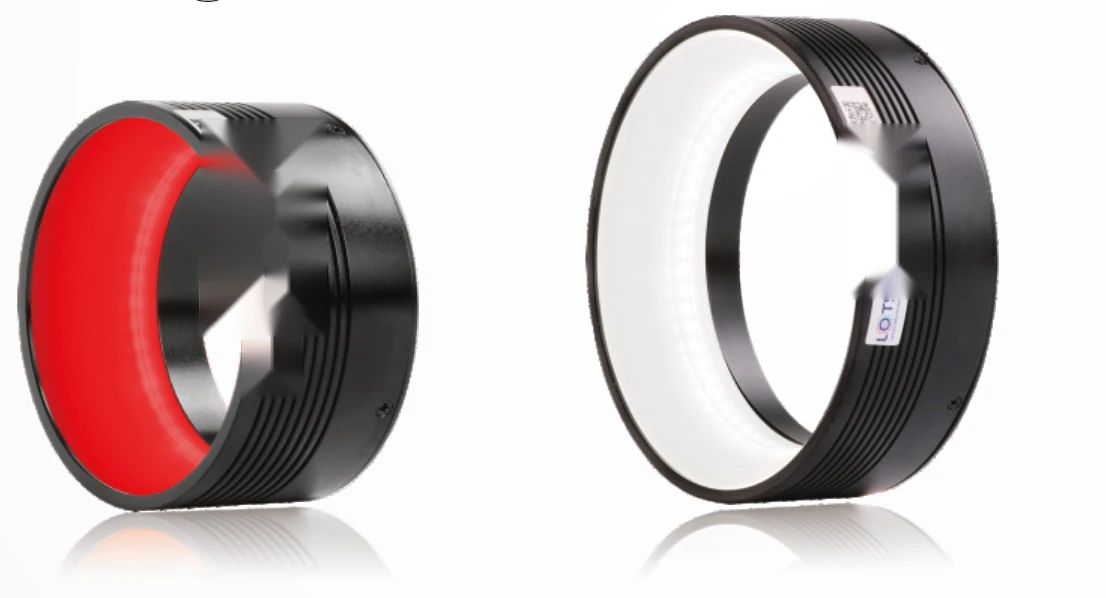

113 mm Low angle shadowless light (FPR) (LS-FPR120)
Model LS-FPR120
Low-angle shadowless ring light with a special emitting structure for uniform emission; efficient low-angle illumination strengthens surface characteristics, highlights defect contrast and reduces reflections and flare.
Features
- Special emitting structure, uniform emission
- Efficient low-angle illumination, strengthens surface characteristics
- Highlights defect contrast
- Reduces reflected light and flare
- Wire jacket covers the cable exit, anti-pull
- Customizable: Outer & inner diameter, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
Specifications
| Model | LS-FPR120 |
|---|---|
| Voltage | 24 V |
| Min. diameter | dia. 80 |
| Max. diameter | dia. 180 |
| Recommended working distance | 10~100 mm |
| FOV | 1~150 mm |
| Colour temperature of white | 6600 K |
| Cable length (drawing) | 500 mm |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life-span | 50000 h (to 50% of factory default luminance) |
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
| Power (R) | 3.4W |
| Power (G/B/W) | 5.0W |
| Weight | 253g |
| Common model | Y |
| Dimension drawing no. | 4 |
| Emitting surface dia. (mm) | 113 |
Applications
- BGA/QFP position inspection
- Integrated circuit material strap inspection
- Connection lead pin pitch and excursion inspection
- Bottle cap crack inspection
- Imaging example: battery packing inspection (LS-FPR120-W), low-angle emission reduces metal reflection and shows the defect clearly
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Low angle shadowless light (FPR) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-FPR80 | 73 mm | 1.9 W | $139.00 | 10 in stock | View | |
| LS-FPR94 | 87 mm | 8.6 W | $149.00 | 12 in stock | View | |
| LS-FPR100 | 80 mm | 3.6 W | $159.00 | 15 in stock | View | |
| LS-FPR150 | 142 mm | 19.2 W | $229.00 | 13 in stock | View | |
| LS-FPR160 | 150 mm | 6.7 W | $239.00 | 15 in stock | View | |
| LS-FPR180 | 170 mm | 8.4 W | $269.00 | 12 in stock | View |
