Smart cameras & vision sensors · 112 models · from $1,249.00

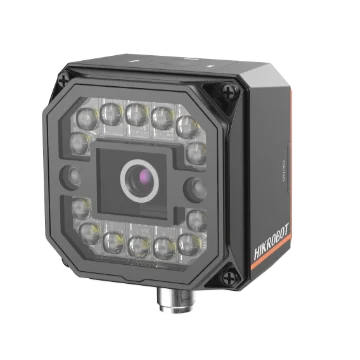

SC3000 Series Vision Sensor
The SC3000 Series Vision Sensor is a range of 112 smart cameras & vision sensors from Hikrobot, from $1,249.00. It comes in 48 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
| Sizes / versions | 1.2 MP, 1/1.45", 12 mm lens, Color, 1.2 MP, 1/1.45", 12 mm lens, Mono, 1.2 MP, 1/1.45", 16 mm lens, Color, 1.2 MP, 1/1.45", 16 mm lens, Mono, 1.2 MP, 1/1.45", 5 mm lens, Color, 1.2 MP, 1/1.45", 6 mm lens, Color, 1.2 MP, 1/1.45", 8 mm lens, Color, 1.2 MP, 1/1.45", 8 mm lens, Mono, 1.4 MP, 1/2.9", 12 mm lens, Color, 1.4 MP, 1/2.9", 12 mm lens, Mono, 1.4 MP, 1/2.9", 12.4 mm lens, Color, 1.4 MP, 1/2.9", 14.8 mm lens, Color, 1.4 MP, 1/2.9", 14.8 mm lens, Mono, 1.4 MP, 1/2.9", 6 mm lens, Color, 1.4 MP, 1/2.9", 6 mm lens, Mono, 1.4 MP, 1/3", 1.75 mm lens, Color and 32 more |
|---|---|
| Interface | GigE |
| Resolution | Up to 3 MP, 5 MP, 6-10 MP |
| Shutter | Global, Rolling |
| Colour | Color, Mono |
| Lens mount | M12 |
| Series | SC3000 series |
| Sensor format | 1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3" |
Features
- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to detect object's existence, quantity, location, etc.
- Multiple IO interfaces for input and output signals.
- Multiple indicators for displaying device status.
- Adopts light source to ensure uniform brightness in the illuminated area.
- Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, and EtherNet/IP.
- Adopts embedded hardware platform to realize high-speed image processing.
- Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.
All 112 models in the SC3000 Series Vision Sensor
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| MV-SC3016M-06M-WBN | 1.4 MP, 1/2.9", 6 mm lens, Mono | $1,249.00 | 5 in stock | View |
| MV-SC3013XM-08M-WBN | 1.2 MP, 1/1.45", 8 mm lens, Mono | $1,529.00 | 4 in stock | View |
| CT-SCC03080 | 1.2 MP, 1/1.45", 8 mm lens, Color | $1,599.00 | 2 in stock | View |
| MV-TD1216XC-60M-WBN | 1.2 MP, 1/1.45", 12 mm lens, Color | $1,599.00 | 4 in stock | View |
| HT-FN4127D-06M-WBH | 1.4 MP, 1/2.9", 6 mm lens, Color | $1,699.00 | 5 in stock | View |
| HT-FN4127D-12M-WBH | 1.4 MP, 1/2.9", 12.4 mm lens, Color | $1,699.00 | 4 in stock | View |
| HT-FN4127D-15M-WBH | 1.4 MP, 1/2.9", 14.8 mm lens, Color | $1,699.00 | 3 in stock | View |
| MV-SC3013XM-12M-WBN | 1.2 MP, 1/1.45", 12 mm lens, Mono | $1,809.00 | 4 in stock | View |
| MV-SC3013XM-16M-WBN | 1.2 MP, 1/1.45", 16 mm lens, Mono | $1,809.00 | 3 in stock | View |
| MV-SC3013XC-08M-WBN | 1.2 MP, 1/1.45", 8 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3013XC-12M-WBN | 1.2 MP, 1/1.45", 12 mm lens, Color | $1,809.00 | 5 in stock | View |
| MV-SC3013XC-16M-WBN | 1.2 MP, 1/1.45", 16 mm lens, Color | $1,809.00 | 5 in stock | View |
| MV-SC3020XM-08M-WBN | 1.9 MP, 1/2.53", 16 mm lens, Mono | $1,809.00 | 2 in stock | View |
| MV-SC3020XM-12M-WBN | 1.9 MP, 1/2.53", 12 mm lens, Mono | $1,809.00 | 4 in stock | View |
| MV-SC3020XM-16M-WBN | 1.9 MP, 1/2.53", 8 mm lens, Mono | $1,809.00 | 5 in stock | View |
| MV-SC3020XC-08M-WBN | 1.9 MP, 1/2.53", 8 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3020XC-12M-WBN | 1.9 MP, 1/2.53", 12 mm lens, Color | $1,809.00 | 5 in stock | View |
| MV-SC3020XC-16M-WBN | 1.9 MP, 1/2.53", 16 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3030XM-12M-WBN | 3.1 MP, 1/1.8", 12 mm lens, Mono | $1,809.00 | 5 in stock | View |
| MV-SC3030XM-16M-WBN | 3.1 MP, 1/1.8", 16 mm lens, Mono | $1,809.00 | 3 in stock | View |
| MV-SC3030XC-08M-WBN | 3.1 MP, 1/1.8", 8 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3030XC-12M-WBN | 3.1 MP, 1/1.8", 12 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3030XC-16M-WBN | 3.1 MP, 1/1.8", 16 mm lens, Color | $1,809.00 | 2 in stock | View |
| MV-SC3050XM-12M-WBN | 5 MP, 1/1.45", 12 mm lens, Mono | $1,809.00 | 4 in stock | View |
| MV-SC3050XM-16M-WBN | 5 MP, 1/1.45", 16 mm lens, Mono | $1,809.00 | 3 in stock | View |
| MV-SC3050XC-08M-WBN | 5 MP, 1/1.45", 8 mm lens, Color | $1,809.00 | 5 in stock | View |
| MV-SC3050XC-12M-WBN | 5 MP, 1/1.45", 12 mm lens, Color | $1,809.00 | 5 in stock | View |
| MV-SC3050XC-16M-WBN | 5 MP, 1/1.45", 16 mm lens, Color | $1,809.00 | 5 in stock | View |
| MV-SC3050XM-08M-WBN-S | 5 MP, 1/1.45", 8 mm lens, Mono | $1,809.00 | 3 in stock | View |
| MV-SC3050XM-12M-WBN-S | 5 MP, 1/1.45", 12 mm lens, Mono | $1,809.00 | 2 in stock | View |
| MV-SC3050XM-16M-WBN-S | 5 MP, 1/1.45", 16 mm lens, Mono | $1,809.00 | 4 in stock | View |
| MV-SC3050XC-08M-WBN-S | 5 MP, 1/1.45", 8 mm lens, Color | $1,809.00 | 5 in stock | View |
| MV-SC3050XC-12M-WBN-S | 5 MP, 1/1.45", 12 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3050XC-16M-WBN-S | 5 MP, 1/1.45", 16 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3060XC-08M-WBN | 6.1 MP, 1/2.4", 8 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3060XC-12M-WBN | 6.1 MP, 1/2.4", 12 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3060XC-16M-WBN | 6.1 MP, 1/2.4", 16 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3060XM-08M-WBN | 6.1 MP, 1/2.4", 8 mm lens, Mono | $1,809.00 | 5 in stock | View |
| MV-SC3060XM-12M-WBN | 6.1 MP, 1/2.4", 12 mm lens, Mono | $1,809.00 | 5 in stock | View |
| MV-SC3060XM-16M-WBN | 6.1 MP, 1/2.4", 16 mm lens, Mono | $1,809.00 | 2 in stock | View |
| MV-SC3016M-12M-WBN | 1.4 MP, 1/2.9", 12 mm lens, Mono | $1,809.00 | 4 in stock | View |
| MV-SC3016M-15M-WBN | 1.4 MP, 1/2.9", 14.8 mm lens, Mono | $1,809.00 | 5 in stock | View |
| MV-SC3016C-06M-WBN | 1.4 MP, 1/2.9", 6 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3016C-15M-WBN | 1.4 MP, 1/2.9", 14.8 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3050M-16M-WBN V4 | 5 MP, 2/3", 16 mm lens, Mono | $1,809.00 | 2 in stock | View |
| MV-SC3050M-12M-WBN V4 | 5 MP, 2/3", 12 mm lens, Mono | $1,809.00 | 2 in stock | View |
| MV-SC3050M-08M-WBN V4 | 5 MP, 2/3", 8 mm lens, Mono | $1,809.00 | 2 in stock | View |
| MV-SC3013XC-05M-MED | 1.2 MP, 1/1.45", 5 mm lens, Color | $1,809.00 | 2 in stock | View |
| MV-SC3013XC-06M-MED | 1.2 MP, 1/1.45", 6 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3030XC-05M-MED | 3.1 MP, 1/1.8", 5 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3150X-08CM-CT | 5 MP, 1/1.45", 8 mm lens, Color | $1,809.00 | 5 in stock | View |
| MV-SC3013XC-12M-ATN-H | 1.2 MP, 1/1.45", 12 mm lens, Color | $1,809.00 | 2 in stock | View |
| MV-SC3013XC-16M-ATN-H | 1.2 MP, 1/1.45", 16 mm lens, Color | $1,809.00 | 2 in stock | View |
| MV-SC3013XC-08M-ATN-H | 1.2 MP, 1/1.45", 8 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3013XM-08M-ATN-H | 1.2 MP, 1/1.45", 8 mm lens, Mono | $1,809.00 | 2 in stock | View |
| MV-SC3030XM-08M-ATN-H | 3.1 MP, 1/1.8", 8 mm lens, Mono | $1,809.00 | 2 in stock | View |
| MV-SC3013XM-12M-ATN-H | 1.2 MP, 1/1.45", 12 mm lens, Mono | $1,809.00 | 3 in stock | View |
| MV-SC3013XM-16M-ATN-H | 1.2 MP, 1/1.45", 16 mm lens, Mono | $1,809.00 | 4 in stock | View |
| MV-SC3030XM-12M-ATN-H | 3.1 MP, 1/1.8", 12 mm lens, Mono | $1,809.00 | 4 in stock | View |
| MV-SC3030XM-16M-ATN-H | 3.1 MP, 1/1.8", 16 mm lens, Mono | $1,809.00 | 3 in stock | View |
| MV-SC3050XC-08M-ATN-H | 5 MP, 1/1.45", 8 mm lens, Color | $1,809.00 | 5 in stock | View |
| MV-SC3030XC-08M-ATN-H | 3.1 MP, 1/1.8", 8 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3050XC-12M-ATN-H | 5 MP, 1/1.45", 12 mm lens, Color | $1,809.00 | 5 in stock | View |
| MV-SC3050XC-25M-ATN-H | 5 MP, 1/1.45", 25 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3050XC-16M-ATN-H | 5 MP, 1/1.45", 16 mm lens, Color | $1,809.00 | 2 in stock | View |
| MV-SC3050XM-08M-ATN-H | 5 MP, 1/1.45", 8 mm lens, Mono | $1,809.00 | 4 in stock | View |
| MV-SC3030XC-12M-ATN-H | 3.1 MP, 1/1.8", 12 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3050XM-12M-ATN-H | 5 MP, 1/1.45", 12 mm lens, Mono | $1,809.00 | 5 in stock | View |
| MV-SC3050XM-16M-ATN-H | 5 MP, 1/1.45", 16 mm lens, Mono | $1,809.00 | 5 in stock | View |
| MV-SC3030XC-16M-ATN-H | 3.1 MP, 1/1.8", 16 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3030XC-25M-ATN-H | 3.1 MP, 1/1.8", 25 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3004C-02S-NNN | 1.4 MP, 1/3", 2 mm lens, Color | $1,809.00 | 4 in stock | View |
| MV-SC3004C-175FS-NNN | 1.4 MP, 1/3", 1.75 mm lens, Color | $1,809.00 | 3 in stock | View |
| MV-SC3030XM-08M-WBN | 3.1 MP, 1/1.8", 8 mm lens, Mono | $1,899.00 | 3 in stock | View |
| MV-SCC005XC-12M-WBN | 1.2 MP, 1/1.45", 12 mm lens, Color | $1,989.00 | 5 in stock | View |
| MV-SCC005XC-08M-WBN | 1.2 MP, 1/1.45", 8 mm lens, Color | $1,989.00 | 5 in stock | View |
| MV-SCC005XC-16M-WBN | 1.2 MP, 1/1.45", 16 mm lens, Color | $1,989.00 | 5 in stock | View |
| MV-SCC005XM-16M-WBN | 1.2 MP, 1/1.45", 16 mm lens, Mono | $1,989.00 | 2 in stock | View |
| MV-SCC005XM-08M-WBN | 1.2 MP, 1/1.45", 8 mm lens, Mono | $1,989.00 | 4 in stock | View |
| MV-SCC005XM-12M-WBN | 1.2 MP, 1/1.45", 12 mm lens, Mono | $1,989.00 | 3 in stock | View |
| MV-SCC009XC-08M-WBN | 3.1 MP, 1/1.8", 8 mm lens, Color | $1,989.00 | 5 in stock | View |
| MV-SCC009XC-16M-WBN | 3.1 MP, 1/1.8", 16 mm lens, Color | $1,989.00 | 3 in stock | View |
| MV-SCC009XC-12M-WBN | 3.1 MP, 1/1.8", 12 mm lens, Color | $1,989.00 | 3 in stock | View |
| MV-SCC009XM-16M-WBN | 3.1 MP, 1/1.8", 16 mm lens, Mono | $1,989.00 | 5 in stock | View |
| MV-SCC009XM-08M-WBN | 3.1 MP, 1/1.8", 8 mm lens, Mono | $1,989.00 | 4 in stock | View |
| MV-SCC009XM-12M-WBN | 3.1 MP, 1/1.8", 12 mm lens, Mono | $1,989.00 | 4 in stock | View |
| MV-SCC010XC-08M-WBN | 5 MP, 1/1.45", 8 mm lens, Color | $1,989.00 | 5 in stock | View |
| MV-SCC010XC-12M-WBN | 5 MP, 1/1.45", 12 mm lens, Color | $1,989.00 | 3 in stock | View |
| MV-SCC010XC-16M-WBN | 5 MP, 1/1.45", 16 mm lens, Color | $1,989.00 | 5 in stock | View |
| MV-SCC010XM-08M-WBN | 5 MP, 1/1.45", 8 mm lens, Mono | $1,989.00 | 5 in stock | View |
| MV-SCC010XM-12M-WBN | 5 MP, 1/1.45", 12 mm lens, Mono | $1,989.00 | 3 in stock | View |
| MV-SCC010XM-16M-WBN | 5 MP, 1/1.45", 16 mm lens, Mono | $1,989.00 | 4 in stock | View |
| MV-SCT16C-H-WX-06M-WBN | 1.4 MP, 1/2.9", 6 mm lens, Color | $1,989.00 | 5 in stock | View |
| MV-SCT16C-H-WX-12M-WBN | 1.4 MP, 1/2.9", 12.4 mm lens, Color | $1,989.00 | 3 in stock | View |
| MV-SCT16C-H-WX-15M-WBN | 1.4 MP, 1/2.9", 14.8 mm lens, Color | $1,989.00 | 4 in stock | View |
| MV-SCT5XC-H-WX-08M-WBN | 5 MP, 1/1.45", 8 mm lens, Color | $1,989.00 | 2 in stock | View |
| MV-SCT5XC-H-WX-12M-WBN | 5 MP, 1/1.45", 12 mm lens, Color | $1,989.00 | 5 in stock | View |
| MV-SCT5XC-H-WX-16M-WBN | 5 MP, 1/1.45", 16 mm lens, Color | $1,989.00 | 4 in stock | View |
| SC016M-12M-01 | 1.4 MP, 1/2.9", 12 mm lens, Mono | $1,989.00 | 4 in stock | View |
| MV-SCC010M-16M-WBN V4 | 5 MP, 2/3", 16 mm lens, Mono | $1,989.00 quote | 3 in stock | View |
| MV-SCC010M-12M-WBN V4 | 5 MP, 2/3", 12 mm lens, Mono | $1,989.00 quote | 4 in stock | View |
| MV-SCC010M-08M-WBN V4 | 5 MP, 2/3", 8 mm lens, Mono | $1,989.00 quote | 5 in stock | View |
| MV-SC3050XM-08M-WBN | 5 MP, 1/1.45", 8 mm lens, Mono | $2,069.00 | 5 in stock | View |
| HIK-YJ7001 | 4.2 MP, 1/1.7", 8 mm lens, Mono | $2,159.00 | 3 in stock | View |
| CT-SCB0139 | 5 MP, 1/1.45", 8 mm lens, Color | $2,359.00 | 3 in stock | View |
| HY-ZXJX7106XC | 5 MP, 1/1.45", 16 mm lens, Color | $2,359.00 | 3 in stock | View |
| HIK-S3000-BN | 5 MP, 1/1.45", 16 mm lens, Color | $2,359.00 | 4 in stock | View |
| CY-CB50XC-08MW | 5 MP, 1/1.45", 8 mm lens, Color | $2,359.00 | 2 in stock | View |
| CY-CB50XC-12MW | 5 MP, 1/1.45", 16 mm lens, Color | $2,359.00 | 3 in stock | View |
| CY-CB50XC-16MW | 5 MP, 1/1.45", 12 mm lens, Color | $2,359.00 | 4 in stock | View |
| MV-SC3016C-12M-WBN | 1.4 MP, 1/2.9", 12 mm lens, Color | $2,689.00 quote | 2 in stock | View |
| MV-SC685-08M-WBN | 5 MP, 1/1.45", 8 mm lens, Mono | $3,449.00 quote | 2 in stock | View |
