Home / Code readers & vision sensors / Smart cameras & vision sensors / SC3000 Series Vision Sensor

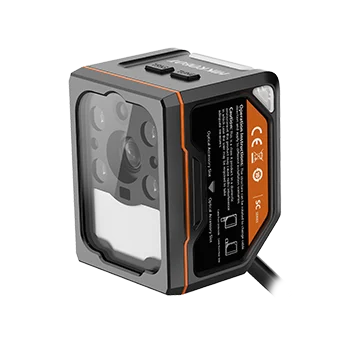

Hikrobot MV-SC3050XM-16M-WBN-S SC3000X series vision sensor, 5MP, Mono, 16mm focal length, One Cable

Smart cameras & vision sensors

Hikrobot MV-SC3050XM-16M-WBN-S SC3000X series vision sensor, 5MP, Mono, 16mm focal length, One Cable

Model MV-SC3050XM-16M-WBN-S

Hikrobot MV-SC3050XM-16M-WBN-S SC3000X series vision sensor, 5MP, Mono, 16mm focal length, One Cable. Adopts embedded hardware platform to realize high-speed image processing. Provides built-in algorithms for high-precision positioning, measurement, and recognition which can be applied in applications such as counting, defect detection, existence, and positioning.

$1,799.00 USDIn stock · 4 available

Inventory updated Oct 14, 2026

0.38 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - MV-SC3050XM-16M-WBN-SQuick start guide (PDF) - MV-SC3050XM-16M-WBN-SCAD: 3D STEP + 2D DXF (ZIP) - MV-SC3050XM-16M-WBN-S

Features

  • Adopts embedded hardware platform to realize high-speed image processing.
  • Provides built-in algorithms for high-precision positioning, measurement, and recognition which can be applied in applications such as counting, defect detection, existence, and positioning.
  • Adopts multiple IO interfaces for input and output signals.
  • Supports viewing the device's status in real time via multi-angle visual indicator, convenient for debugging and maintenance.
  • Adopts polarized, diffuser, and full-transparent multiple optical lighting with good environmental adaptability.
  • Supports RS-232, TCP, UDP, FTP, ModBus, PROFINET, EtherNet/IP and other communication modes.

Specifications

ModelMV-SC3050XM-16M-WBN-S
BrandHikrobot
Vision toolMeasurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle; Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection; Count: Spot count, edge count, contour count, pattern count, learning-based count; Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection; Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture; Deep learning: DL classification, DL object detection; Defect detection: Anomaly detection; Industry tools: OCR and defect detection
Solution capacitySupports importing and exporting project, up to 32 projects can be stored
Communication protocolRS-232, TCP, UDP, FTP, PROFINET, ModBus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/1.45"
Resolution2432 × 2048
Max. frame rate40 fps
Gain0 dB to 15 dB
Exposure time6 μs to 1 sec
Pixel formatMono 8
Mono/colorMono
Data interfaceFast Ethernet (100 Mbit/s)
Digital I/O17-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1; Supports triggering device via pressing top trigger button
Power supply24 VDC
Power consumptionAvg. 7 W @ 24 VDC (light source enabled); Max. 22 W @ 24 VDC (light source enabled)
Lens mountM12-mount, mechanical autofocus supported
Focal length16 mm
Lens capPolarized + diffuser + full-transparent lens cap
Light sourceWhite spot light source. Red/blue/IR point light source is optional
Aiming system1 LED
IndicatorMulti-angle visual indicator
Dimension43 mm × 57 mm × 45.9 mm (1.7" × 2.2" × 1.8")
WeightApprox. 200 g (0.4 lb.)
Ingress protectionIP65
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Vibration resistanceMeets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistanceMeets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Client softwareSCMVS
CertificationCE, KC
Shipping weight (estimated)0.38 kg
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the SC3000 Series Vision Sensor series

ModelSizePriceAvailability
MV-SC3030XM-12M-WBN3.1 MP, 1/1.8", 12 mm lens, Mono $1,799.00 5 in stockView
MV-SC3030XM-16M-WBN3.1 MP, 1/1.8", 16 mm lens, Mono $1,799.00 3 in stockView
MV-SC3030XC-08M-WBN3.1 MP, 1/1.8", 8 mm lens, Color $1,799.00 3 in stockView
MV-SC3030XC-12M-WBN3.1 MP, 1/1.8", 12 mm lens, Color $1,799.00 4 in stockView
MV-SC3030XC-16M-WBN3.1 MP, 1/1.8", 16 mm lens, Color $1,799.00 2 in stockView
MV-SC3050XM-12M-WBN5 MP, 1/1.45", 12 mm lens, Mono $1,799.00 4 in stockView
MV-SC3050XM-16M-WBN5 MP, 1/1.45", 16 mm lens, Mono $1,799.00 3 in stockView
MV-SC3050XC-08M-WBN5 MP, 1/1.45", 8 mm lens, Color $1,799.00 5 in stockView
MV-SC3050XC-12M-WBN5 MP, 1/1.45", 12 mm lens, Color $1,799.00 5 in stockView
MV-SC3050XC-16M-WBN5 MP, 1/1.45", 16 mm lens, Color $1,799.00 5 in stockView
MV-SC3050XM-08M-WBN-S5 MP, 1/1.45", 8 mm lens, Mono $1,799.00 3 in stockView
MV-SC3050XM-12M-WBN-S5 MP, 1/1.45", 12 mm lens, Mono $1,799.00 2 in stockView
MV-SC3050XC-08M-WBN-S5 MP, 1/1.45", 8 mm lens, Color $1,799.00 5 in stockView
MV-SC3050XC-12M-WBN-S5 MP, 1/1.45", 12 mm lens, Color $1,799.00 3 in stockView
MV-SC3050XC-16M-WBN-S5 MP, 1/1.45", 16 mm lens, Color $1,799.00 3 in stockView
MV-SC3060XC-08M-WBN6.1 MP, 1/2.4", 8 mm lens, Color $1,799.00 4 in stockView
MV-SC3060XC-12M-WBN6.1 MP, 1/2.4", 12 mm lens, Color $1,799.00 3 in stockView
MV-SC3060XC-16M-WBN6.1 MP, 1/2.4", 16 mm lens, Color $1,799.00 3 in stockView
MV-SC3060XM-08M-WBN6.1 MP, 1/2.4", 8 mm lens, Mono $1,799.00 5 in stockView
MV-SC3060XM-12M-WBN6.1 MP, 1/2.4", 12 mm lens, Mono $1,799.00 5 in stockView
MV-SC3060XM-16M-WBN6.1 MP, 1/2.4", 16 mm lens, Mono $1,799.00 2 in stockView
MV-SC3016M-12M-WBN1.4 MP, 1/2.9", 12 mm lens, Mono $1,799.00 4 in stockView
MV-SC3016M-15M-WBN1.4 MP, 1/2.9", 14.8 mm lens, Mono $1,799.00 5 in stockView
MV-SC3016C-06M-WBN1.4 MP, 1/2.9", 6 mm lens, Color $1,799.00 4 in stockView

See all 45 models in the SC3000 Series Vision Sensor series
