Home / Code readers & vision sensors / Smart cameras & vision sensors / SC3000 Series Vision Sensor

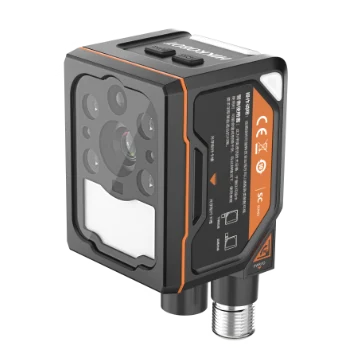

Hikrobot MV-SC3030XM-16M-WBN SC3000X series vision sensor, 3MP, Mono, 16mm focal length

Smart cameras & vision sensors

Hikrobot MV-SC3030XM-16M-WBN SC3000X series vision sensor, 3MP, Mono, 16mm focal length

Model MV-SC3030XM-16M-WBN

Hikrobot MV-SC3030XM-16M-WBN SC3000X series vision sensor, 3MP, Mono, 16mm focal length. Adopts embedded hardware platform to realize high-speed image processing. Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.

$1,799.00 USDIn stock · 3 available

Inventory updated Oct 14, 2026

0.37 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - MV-SC3030XM-16M-WBNQuick start guide (PDF) - MV-SC3030XM-16M-WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-SC3030XM-16M-WBN

Features

  • Adopts embedded hardware platform to realize high-speed image processing.
  • Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.
  • Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes.
  • Adopts multiple IO interfaces for input and output signals.
  • Supports viewing the device's status in real time via 360° visual indicator, convenient for debugging and maintenance.
  • Rotatable cable tail design, suitable for narrow space.
  • Adopts polarized, diffuser, and full-transparent multiple optical lighting with good environmental adaptability.
  • IP67 protection without fear of harsh industrial application environments.

Specifications

ModelMV-SC3030XM-16M-WBN
BrandHikrobot
Vision toolMeasurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle; Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection; Count: Spot count, edge count, contour count, pattern count, learning-based count; Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection; Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture; Deep learning: DL classification, DL object detection; Defect detection: Anomaly detection; Industry tools: OCR and defect detection
Solution capacitySupports importing and exporting project, up to 32 projects can be stored
Communication protocolRS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/1.8"
Resolution2048 × 1536
Max. frame rate40 fps
Gain0 dB to 15 dB
Exposure time6 μs to 1 sec
Pixel formatMono 8
Mono/colorMono
Data interfaceFast Ethernet (100 Mbit/s)
Digital I/O12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1; Supports triggering device via pressing top trigger button
Power supply24 VDC
Power consumptionAvg. 7 W @ 24 VDC (light source enabled); Max. 22 W @ 24 VDC (light source enabled)
Lens mountM12-mount, mechanical autofocus supported
Focal length16 mm
Lens capPolarized + diffuser + full-transparent lens cap
Light sourceWhite spot light source. Red/blue/IR point light source is optional
Aiming system1 LED
Indicator360° visual indicator
DimensionStraight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
WeightApprox. 190 g (0.4 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Vibration resistanceMeets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistanceMeets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Client softwareSCMVS
CertificationCE, KC
Shipping weight (estimated)0.37 kg
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the SC3000 Series Vision Sensor series

ModelSizePriceAvailability
MV-SC3013XM-12M-WBN1.2 MP, 1/1.45", 12 mm lens, Mono $1,799.00 4 in stockView
MV-SC3013XM-16M-WBN1.2 MP, 1/1.45", 16 mm lens, Mono $1,799.00 3 in stockView
MV-SC3013XC-08M-WBN1.2 MP, 1/1.45", 8 mm lens, Color $1,799.00 3 in stockView
MV-SC3013XC-12M-WBN1.2 MP, 1/1.45", 12 mm lens, Color $1,799.00 5 in stockView
MV-SC3013XC-16M-WBN1.2 MP, 1/1.45", 16 mm lens, Color $1,799.00 5 in stockView
MV-SC3020XM-08M-WBN1.9 MP, 1/2.53", 16 mm lens, Mono $1,799.00 2 in stockView
MV-SC3020XM-12M-WBN1.9 MP, 1/2.53", 12 mm lens, Mono $1,799.00 4 in stockView
MV-SC3020XM-16M-WBN1.9 MP, 1/2.53", 8 mm lens, Mono $1,799.00 5 in stockView
MV-SC3020XC-08M-WBN1.9 MP, 1/2.53", 8 mm lens, Color $1,799.00 4 in stockView
MV-SC3020XC-12M-WBN1.9 MP, 1/2.53", 12 mm lens, Color $1,799.00 5 in stockView
MV-SC3020XC-16M-WBN1.9 MP, 1/2.53", 16 mm lens, Color $1,799.00 3 in stockView
MV-SC3030XM-12M-WBN3.1 MP, 1/1.8", 12 mm lens, Mono $1,799.00 5 in stockView
MV-SC3030XC-08M-WBN3.1 MP, 1/1.8", 8 mm lens, Color $1,799.00 3 in stockView
MV-SC3030XC-12M-WBN3.1 MP, 1/1.8", 12 mm lens, Color $1,799.00 4 in stockView
MV-SC3030XC-16M-WBN3.1 MP, 1/1.8", 16 mm lens, Color $1,799.00 2 in stockView
MV-SC3050XM-12M-WBN5 MP, 1/1.45", 12 mm lens, Mono $1,799.00 4 in stockView
MV-SC3050XM-16M-WBN5 MP, 1/1.45", 16 mm lens, Mono $1,799.00 3 in stockView
MV-SC3050XC-08M-WBN5 MP, 1/1.45", 8 mm lens, Color $1,799.00 5 in stockView
MV-SC3050XC-12M-WBN5 MP, 1/1.45", 12 mm lens, Color $1,799.00 5 in stockView
MV-SC3050XC-16M-WBN5 MP, 1/1.45", 16 mm lens, Color $1,799.00 5 in stockView
MV-SC3050XM-08M-WBN-S5 MP, 1/1.45", 8 mm lens, Mono $1,799.00 3 in stockView
MV-SC3050XM-12M-WBN-S5 MP, 1/1.45", 12 mm lens, Mono $1,799.00 2 in stockView
MV-SC3050XM-16M-WBN-S5 MP, 1/1.45", 16 mm lens, Mono $1,799.00 4 in stockView
MV-SC3050XC-08M-WBN-S5 MP, 1/1.45", 8 mm lens, Color $1,799.00 5 in stockView

See all 45 models in the SC3000 Series Vision Sensor series
