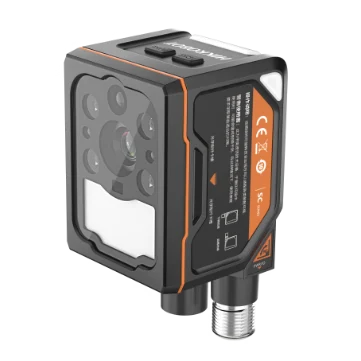

Hikrobot MV-SC3030XC-08M-WBN SC3000X series vision sensor, 3MP, Color, 08mm focal length
Model MV-SC3030XC-08M-WBN
Hikrobot MV-SC3030XC-08M-WBN SC3000X series vision sensor, 3MP, Color, 08mm focal length. Adopts embedded hardware platform to realize high-speed image processing. Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.
Datasheet (PDF) - MV-SC3030XC-08M-WBNQuick start guide (PDF) - MV-SC3030XC-08M-WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-SC3030XC-08M-WBN
Features
- Adopts embedded hardware platform to realize high-speed image processing.
- Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.
- Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes.
- Adopts multiple IO interfaces for input and output signals.
- Supports viewing the device's status in real time via 360° visual indicator, convenient for debugging and maintenance.
- Rotatable cable tail design, suitable for narrow space.
- Adopts polarized, diffuser, and full-transparent multiple optical lighting with good environmental adaptability.
- IP67 protection without fear of harsh industrial application environments.
Specifications
| Model | MV-SC3030XC-08M-WBN |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, color measurement, color size, diameter measurement, line angle; Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection; Count: Spot count, edge count, contour count, pattern count, learning-based count, color count; Recognition: Multi-object count, code recognition, color contrast, color recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection; Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture; Deep learning: DL classification, DL object detection; Defect detection: Anomaly detection; Industry tools: OCR and defect detection |
| Solution capacity | Supports importing and exporting project, up to 32 projects can be stored |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/1.8" |
| Resolution | 2048 × 1536 |
| Max. frame rate | 40 fps |
| Gain | 0 dB to 15 dB |
| Exposure time | 6 μs to 1 sec |
| Pixel format | RGB 8, Mono 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1; Supports triggering device via pressing top trigger button |
| Power supply | 24 VDC |
| Power consumption | Avg. 7 W @ 24 VDC (light source enabled); Max. 22 W @ 24 VDC (light source enabled) |
| Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 8 mm |
| Lens cap | Polarized + diffuser + full-transparent lens cap |
| Light source | White spot light source. Red/blue/IR point light source is optional |
| Aiming system | 1 LED |
| Indicator | 360° visual indicator |
| Dimension | Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6") |
| Weight | Approx. 190 g (0.4 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Bare device withstands 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.37 kg |
