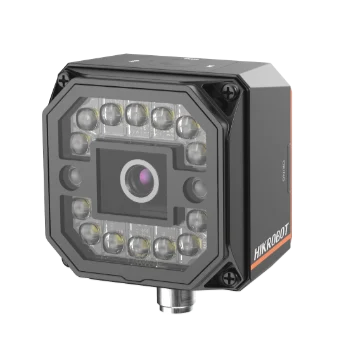

Hikrobot MV-SC3016M-15M-WBN SC3000 series vision sensor, 1.6MP, Mono, 15mm focal length
Model MV-SC3016M-15M-WBN
Hikrobot MV-SC3016M-15M-WBN SC3000 series vision sensor, 1.6MP, Mono, 15mm focal length. Adopts embedded hardware platform for high-speed image processing. Adopts built-in positioning and measurement algorithms to detect object's existence, quantity, location, etc.
Datasheet (PDF) - MV-SC3016M-15M-WBNQuick start guide (PDF) - MV-SC3016M-15M-WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-SC3016M-15M-WBN
Features
- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to detect object's existence, quantity, location, etc.
- Multiple IO interfaces for input and output signals.
- Multiple indicators for displaying device status.
- Adopts light source to ensure uniform brightness in the illuminated area.
- Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, and EtherNet/IP.
Specifications
| Model | MV-SC3016M-15M-WBN |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle; Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection; Count: Spot count, edge count, contour count, pattern count, learning-based count; Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection; Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture; Deep learning: DL classification, DL object detection; Defect detection: Anomaly detection; Industry tools: OCR and defect detection;Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle; Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection; Count: Spot count, edge count, contour count, pattern count, learning-based count; Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR; Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture; Deep learning: DL classification, DL object detection; Defect detection: Anomaly detection |
| Solution capacity | Supports importing and exporting project, up to 32 projects can be stored |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max. frame rate | 60 fps |
| Gain | 0 dB to 15 dB |
| Exposure time | 16 μs to 1 sec;35 μs to 1 sec |
| Pixel format | Mono 8 |
| Mono/color | Mono |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP. |
| Power supply | 24 VDC |
| Power consumption | Avg.: 13.8 W @ 24 VDC (light source enabled); Max.: 42 W @ 24 VDC (light source enabled) |
| Lens mount | M12-mount, mechanical focus supported |
| Focal length | 14.8 mm |
| Lens cap | Transparent lens cap by default. Half-polarized or fully-polarized lens cap is optional. |
| Light source | 14 LEDs, white light by default. Red, blue or IR is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Dimension | 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9") |
| Weight | Approx. 280 g (0.6 lb.) |
| Ingress protection | IP67 (under proper installation of lens and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Bare device withstands 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Bare device withstands 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.49 kg |
