Home / Code readers & vision sensors / Smart cameras & vision sensors / SC3000 Series Vision Sensor

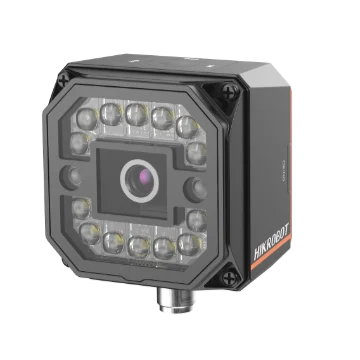

Hikrobot MV-SC3050M-08M-WBN V4 SC3000 series vision sensor, 5MP, Mono, 8mm focal length

Smart cameras & vision sensors

Hikrobot MV-SC3050M-08M-WBN V4 SC3000 series vision sensor, 5MP, Mono, 8mm focal length

Model MV-SC3050M-08M-WBN V4

Hikrobot MV-SC3050M-08M-WBN V4 SC3000 series vision sensor, 5MP, Mono, 8mm focal length. Adopts embedded hardware platform for high-speed image processing. Adopts built-in positioning and measurement algorithms to object's existence, quantity, location, etc.

$1,809.00 USDIn stock · 2 available

Inventory updated Oct 14, 2026

0.49 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - MV-SC3050M-08M-WBN V4Quick start guide (PDF) - MV-SC3050M-08M-WBN V4CAD: 3D STEP + 2D DXF (ZIP) - MV-SC3050M-08M-WBN V4

Features

  • Adopts embedded hardware platform for high-speed image processing.
  • Adopts built-in positioning and measurement algorithms to object's existence, quantity, location, etc.
  • Multiple IO interfaces for input and output signals.
  • Multiple indicators for displaying device status.
  • Adopts light source to ensure uniform brightness in the illuminated area.
  • Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, and EtherNet/IP.

Specifications

ModelMV-SC3050M-08M-WBN V4
BrandHikrobot
Vision toolMeasurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle; Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection; Count: Spot count, edge count, contour count, pattern count, learning-based count; Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection; Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture; Deep learning: DL classification, DL object detection; Defect detection: Anomaly detection; Industry tools: OCR and defect detection
Solution capacitySupports importing and exporting project, up to 32 projects can be stored
Communication protocolRS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Sensor typeCMOS, global shutter
Pixel size3.4 μm × 3.4 μm
Sensor size2/3"
Resolution2432 × 2048
Max. frame rate50 fps
Gain0 dB to 24 dB
Exposure time60 μs to 1 sec
Pixel formatMono 8
Mono/colorMono
Data interfaceFast Ethernet (100 Mbit/s)
Digital I/O17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP.
Power supply24 VDC
Power consumptionAvg. 9.6 W @ 24 VDC; Max. 48 W @ 24 VDC
Lens mountM12-mount, mechanical autofocus lens
Focal length8 mm
Lens capTransparent lens cap by default. Half-polarized and fully-polarized caps are optional
Light source14 LED lamps, white light by default. Red, blue, and near infrared lights are optional
IndicatorPower indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Dimension65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
WeightApprox. 280 g (0.6 lb.)
Ingress protectionIP67 (under proper installation of lens and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Shock resistanceMeets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Vibration resistanceMeets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Client softwareSCMVS
CertificationCE, KC
Shipping weight (estimated)0.49 kg
