Hikrobot MV-SCT16C-H-WX-06M-WBN 1.6 MP 1/2.9" vision sensor
Model MV-SCT16C-H-WX-06M-WBN

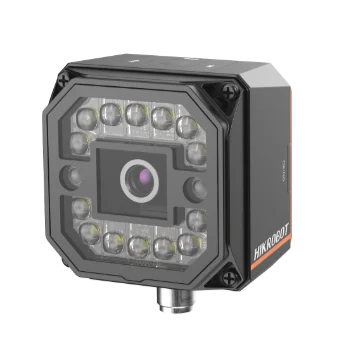

Hikrobot MV-SCT16C-H-WX-06M-WBN 1.6 MP 1/2.9" vision sensor. Embedded hardware platform for high-speed image processing High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning
Features
- Embedded hardware platform for high-speed image processing
- High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning
- Rich I/O interface supports multiple input and output signals
- Comprehensive status indicators show device status in real time for easy setup and maintenance
- Well-designed light ensures uniform brightness across the illuminated area
- Supports RS-232, TCP, UDP, FTP, ModBus, PROFINET, EtherNet/IP and other communication modes
Specifications
| Model | MV-SCT16C-H-WX-06M-WBN |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: point-point measurement, Point-line measurement, Contrast measurement, Grayscale area, Pitch measurement, Width measurement, Mean brightness, Line-line angle, Color measurement, Color area, Diameter measurement, Line angle; Presence: blob presence, Edge presence, Contour presence, Pattern presence, Circle presence, Line presence, Anomaly judgment, Presence inspection; Count: blob count, Edge count, Contour count, Pattern count, Learned count, Color count; Recognition: multi-object count, Code recognition, Color comparison, Color recognition, Type recognition, Registration classification, Registration object detection, Character recognition; Logic: variable calculation, Branch control, Logic judgment, Data formatting, Condition judgment, Character comparison, Combined judgment; Positioning: calibration conversion, Single-point alignment, Single-point deviation correction, Single-point picking, Unit conversion, Position correction; Deep learning: classification, Object detection; Defect tools: anomaly detection |
| Solution capacity | Solution import/export supported, Up to 32 solutions stored, 40 modules |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max. frame rate | 60 fps |
| Dynamic range | 71.4 dB |
| SNR | 41 dB |
| Gain | 0~15 dB |
| Exposure time | 16 μs~1 sec |
| Pixel format | RGB 8, Mono 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet(100Mbit/s) |
| Digital I/O | 17-pin M12 connector for power, Ethernet, Digital I/O, Serial port function: 2 input signals (Line0/1), 3 output signals (Line5/6/7), 3 configurable I/O (Line2/3/4), 1 external button input (BUTTON); Output signal type configurable as NPN or PNP |
| Power supply | 24 VDC |
| Max. power consumption | 48 W@24 VDC |
| Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 6 mm |
| Lens cap | Transparent lens cap by default. Half-polarized or fully-polarized lens cap is optional. |
| Light source | 14 LEDs, white light by default. Red, blue or IR is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Dimension | 65.2 mm × 65.2 mm × 47 mm |
| Weight | Approx. 280 g (0.6 lb.) |
| Ingress protection | IP67 (under proper installation of lens and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | SCMVS |
| Certification | CE, FCC, KC |
| Shipping weight (estimated) | 0.49 kg |
