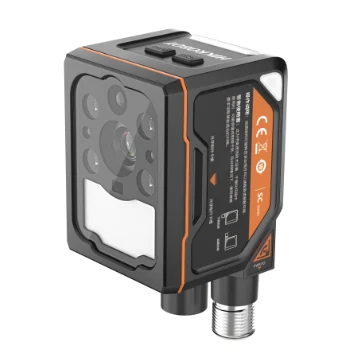

Hikrobot HIK-S3000-BN 5 MP color vision sensor
Model HIK-S3000-BN
Hikrobot HIK-S3000-BN 5 MP color vision sensor. Embedded hardware platform for high-speed image processing High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning
Features
- Embedded hardware platform for high-speed image processing
- High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning
- Rich I/O interface supports multiple input and output signals
- 360° visible body indicator shows device status in real time for easy setup and maintenance
- Rotatable tail cable design adapts flexibly to tight spaces
- Polarized, diffuse and clear multi-mode illumination for outstanding environmental adaptability
- IP67 protection for harsh industrial environments
- Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes
Specifications
| Model | HIK-S3000-BN |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: point-point measurement, Point-line measurement, Contrast measurement, Grayscale area, Pitch measurement, Width measurement, Mean brightness, Line-line angle, Color measurement, Color area, Diameter measurement, Line angle; Presence: blob presence, Edge presence, Contour presence, Pattern presence, Circle presence, Line presence, Anomaly judgment, Presence inspection; Count: blob count, Edge count, Contour count, Pattern count, Learned count, Color counting; Recognition: multi-object counting, Code recognition, Color comparison, Color recognition, Type recognition, Registration classification, Registration object detection, Character recognition; Logic: variable calculation, Branch control, Logic judgment, Data formatting, Condition judgment, Character comparison, Combined judgment; Positioning: calibration conversion, Single-point alignment, Single-point deviation correction, Single-point picking, Unit conversion, Position correction; Deep learning: classification, Object detection; Defect tools: anomaly detection |
| Solution capacity | Supports importing and exporting project, up to 32 projects can be stored |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/1.45" |
| Resolution | 2432 × 2048 |
| Max. frame rate | 40 fps |
| Dynamic range | 77.8 dB |
| SNR | 43 dB |
| Gain | 0 dB ~ 15 dB |
| Exposure time | 6 μs ~ 1 sec |
| Pixel format | RGB 8, Mono 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 12-pin M12 connector for power and I/O: 3 opto-isolated inputs (LINE0/1/2 input), 3 opto-isolated outputs (LINE3/4/5 output), 1× RS-232 interface; Device trigger via top button supported |
| Power supply | 24 VDC |
| Power consumption | 6.5 W@24 VDC |
| Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 16 mm |
| Lens cap | Polarized + diffuser + full-transparent lens cap |
| Light source | White spot light source. Red/blue/IR point light source is optional |
| Aiming system | Orange LED |
| Indicator | 360° visual indicator |
| Dimension | Straight: 80.1 mm × 43 mm × 44.3 mm; Right-angle: 58.5 mm × 43 mm × 65.4 mm |
| Weight | Approx. 190 g (0.4 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.37 kg |
