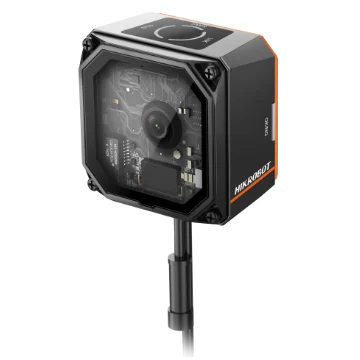

Hikrobot MV-SC3004C-175FS-NNN SC3000 vision sensor for logistics traceability, 0.4MP, Color, 1.75 mm lens, Fixed focus
Model MV-SC3004C-175FS-NNN
Hikrobot MV-SC3004C-175FS-NNN SC3000 vision sensor for logistics traceability, 0.4MP, Color, 1.75 mm lens, Fixed focus. Embedded hardware platform for high-speed image processing Built-in measurement and recognition algorithms for package location and identification
Datasheet (PDF, Chinese) - MV-SC3004C-175FS-NNNUser manual (PDF, Chinese) - MV-SC3004C-175FS-NNNCAD: 3D STEP + 2D DXF (ZIP) - MV-SC3004C-175FS-NNN
Features
- Embedded hardware platform for high-speed image processing
- Built-in measurement and recognition algorithms for package location and identification
- Comprehensive status indicators show device status in real time for easy setup and maintenance
- Powerful ISP algorithms for sharper images
Specifications
| Model | MV-SC3004C-175FS-NNN |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: mean brightness; Deep learning: object detection |
| Solution capacity | Solution import/export supported, Up to 32 solutions stored, 40 modules |
| Communication protocol | FTP, TCP, etc. |
| SoC computing power | 3.2T, Algorithm time < 40 ms (with fewer than 5 objects) |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 5.8 μm × 5.8 μm |
| Sensor size | 1/3" |
| Resolution | Max. 2MP, Optional 1408 × 1024, 864 × 536 |
| Max. frame rate | 30 fps |
| Gain | 0 dB ~ 48 dB |
| Exposure time | 30 μs ~ 28 ms |
| Mono/color | Color |
| Pixel format | RGB 8, Mono 8 |
| Image functions | True WDR algorithm supported |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Power supply | 12 VDC to 24 VDC, supports PoE |
| Power consumption | Typical power: 2.0 W @ 24 VDC; Max. power: 4.1 W @ 24 VDC |
| Lens mount | M12-mount |
| Focal length | 1.75 mm |
| Lens cap | Transparent lens cap |
| Light source | None |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Dimension | 65.2 mm × 65.2 mm × 41.9 mm |
| Weight | 409.3 g |
| Ingress protection | IP65 (with lens and cables properly installed) |
| Temperature | Operating temperature -30 to 70°C (with accessories) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Shipping weight (estimated) | 0.67 kg |
