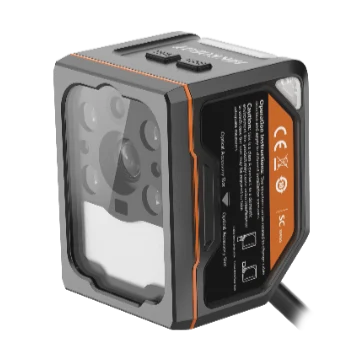

Hikrobot MV-SC3030XC-05M-MED SC3000X medical-dedicated vision sensor, 3MP, Color, 5 mm lens, Motorized focus
Model MV-SC3030XC-05M-MED
Hikrobot MV-SC3030XC-05M-MED SC3000X medical-dedicated vision sensor, 3MP, Color, 5 mm lens, Motorized focus. Embedded hardware platform for high-speed image processing High-precision algorithms with high read rates, plus tube-cap presence detection, liquid level detection and blood quality inspection
Datasheet (PDF, Chinese) - MV-SC3030XC-05M-MEDUser manual (PDF, Chinese) - MV-SC3030XC-05M-MEDCAD: 3D STEP + 2D DXF (ZIP) - MV-SC3030XC-05M-MED
Features
- Embedded hardware platform for high-speed image processing
- High-precision algorithms with high read rates, plus tube-cap presence detection, liquid level detection and blood quality inspection
- Rich I/O interface supports multiple input and output signals
- Body indicators visible from multiple angles show device status in real time for easy setup and maintenance
- Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes
Specifications
| Model | MV-SC3030XC-05M-MED |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: point-point measurement, Liquid level measurement, Contrast measurement, Grayscale area, Pitch measurement, Width measurement, Mean brightness, Line-line angle, Color measurement, Color area, Diameter measurement, Line angle; Presence: blob presence, Edge presence, Contour presence, Pattern presence, Circle presence, Line presence; Count: blob count, Edge count, Contour count, Pattern count, Color counting; Recognition: code recognition, Blood quality recognition, Color comparison, Color recognition, Registration classification, Registration object detection, Character recognition; Logic: Json format output, Variable calculation, Branch control, Logic judgment, Condition judgment, Character comparison, Combined judgment; Positioning: unit conversion, Position correction; Deep learning: classification, Object detection |
| Solution capacity | Supports importing and exporting project, up to 32 projects can be stored |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/1.8" |
| Resolution | 2048 × 1536 |
| Max. frame rate | 40 fps |
| Gain | 0 dB ~ 15 dB |
| Exposure time | 16 μs ~1 sec |
| Pixel format | RGB 8, Mono 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O: 3 opto-isolated inputs (LINE 0/1/2), 3 opto-isolated outputs (LINE 3/4/5), 1 RS-232 interface; Output signal type configurable as NPN or PNP |
| Power supply | 24 VDC |
| Power consumption | 6.5 W@24 VDC |
| Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 5 mm |
| Lens cap | Fully polarized lens cover |
| Light source | White spot light source. Red/blue/IR point light source is optional |
| Aiming system | 1 LED |
| Indicator | Multi-angle visual indicator |
| Dimension | 43 mm × 57 mm × 45.9 mm |
| Weight | Approx. 200 g (0.4 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.38 kg |
