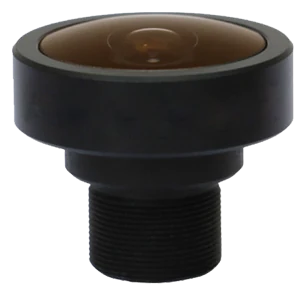

1.7 mm, 1/1.8", 8 MP, M12-mount Fisheye Lens (LS-CTV-0031)
  • 1.7 mm, 1/1.8", 8 MP, M12-mount Fisheye Lens (LS-CTV-0031)

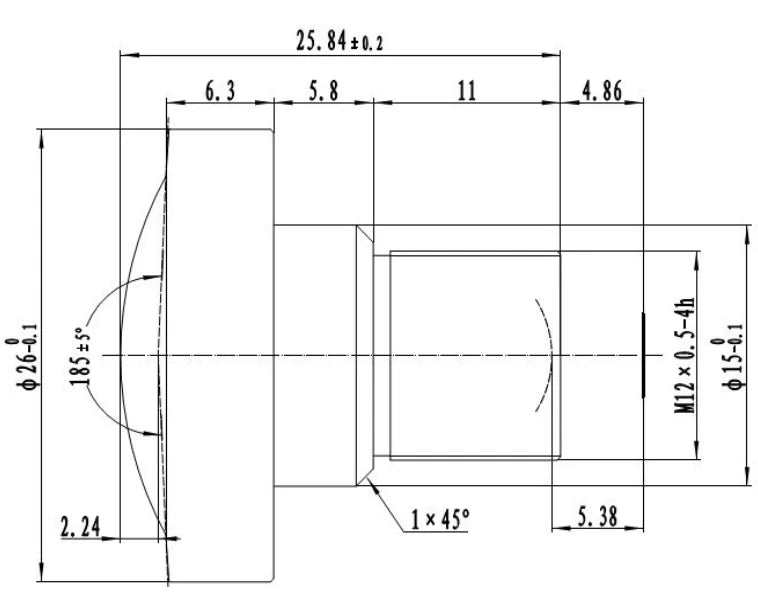

  • LS-CTV-0031 dimensions (mm)

CCTV lenses

1.7 mm, 1/1.8", 8 MP, M12-mount Fisheye Lens (LS-CTV-0031)

Model LS-CTV-0031

  • Focal length1.7mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF2.0 Fixed iris
  • Resolution8 Megapixel
$89.00

Ships in 2-3 weeks

0.13 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.7 mm, 1/1.8", 8 MP, M12-mount Fisheye Lens (LS-CTV-0031)LS-CTV-0031

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.7 mm, 1/1.8", 8 MP, M12-mount Fisheye Lens. A 1.7 mm F2.0 IR M12 fisheye lens for 1/1.8" 8-megapixel sensors with a 185-188 degree field of view. At a glance: focal length 1.7mm; format 1/1.8" dia. 4.82@180°; resolution 8 Megapixel; aperture F2.0 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0031
Format1/1.8" dia. 4.82@180°
IR correctedIR
Angle of view (1/1.8")185 x 185 x 185 deg
Angle of view (1/2")185 x 185 x 180 deg
Angle of view (1/2.3" 4:3)185 x 185 x 174 deg
Notes-30°~ +80°
IR correctionIR
Angle of view (1/1.8", DxHxV)185 x 185 x 185 deg
Angle of view (1/2", DxHxV)185 x 185 x 180 deg
Angle of view (1/2.3" 4:3, DxHxV)185 x 185 x 174 deg

Optics

Focal length1.7mm
ApertureF2.0 Fixed iris
M.O.D.0.15m
Distortion-97.5%
Back focal length5.38mm ( in air)
Mechanical back focal length4.86mm ( in air )
Total track length (TTL)30.7mm
Back focal length (optical)5.38mm (in air)

Sensor and imaging

Resolution8 Megapixel

Mechanical

Sizedia. 26 x 25.8mm
MountM12
Weight20g
Shipping weight (estimated)0.13 kg
