Fisheye lenses
  • Fisheye lenses

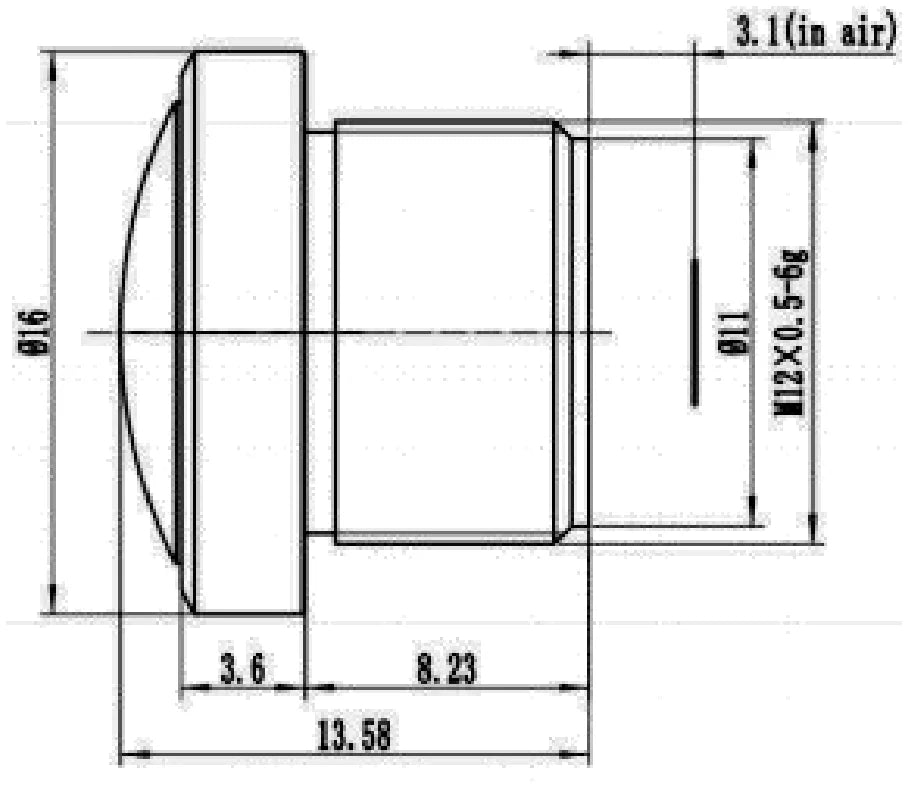

  • LS-CTV-0027 dimensions (mm)

CCTV lenses

1.5 mm, 1/2", 5 MP, M12-mount Fisheye Lens (LS-CTV-0027)

Model LS-CTV-0027

  • Focal length1.5mm
  • MountM12
  • Sensor1/2"
  • ApertureF2.0 Fixed Iris
  • Resolution5 Megapixel
$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.5 mm, 1/2", 5 MP, M12-mount Fisheye Lens (LS-CTV-0027)LS-CTV-0027

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.5 mm, 1/2", 5 MP, M12-mount Fisheye Lens. A 1.5 mm F2.0 IP67 waterproof M12 fisheye lens for 1/2" 5-megapixel sensors with a 185-210 degree field of view, available as a lens only or with an ICR holder. At a glance: focal length 1.5mm; format 1/2"; resolution 5 Megapixel; aperture F2.0 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0027
IR correctedIR
Format1/2"
Angle of view (1/2", DxHxV)210 x 210 x 210 deg
Angle of view (1/2.5", DxHxV)210 x 210 x 210 deg
CRA<9.93°
IR correctionIR
WaterproofIP67

Optics

Image circledia. 4.2
Focal length1.5mm
ApertureF2.0 Fixed Iris
M.O.D.0.3m
Back focal length3.31mm
Total track length (TTL)16.68mm
Distortion-6.1%
Back focal length (optical)3.31mm

Sensor and imaging

Resolution5 Megapixel

Environment and compliance

Ingress protectionIP67

Mechanical

Sizedia. 16 x 13.58
MountM12
Weight10g ( Default No holder )
Image heightdia. 4.2
Shipping weight (estimated)0.11 kg
