1.5 mm, 1/2.5", 5 MP, M12-mount Fisheye Lens (LS-CTV-0026)
  • 1.5 mm, 1/2.5", 5 MP, M12-mount Fisheye Lens (LS-CTV-0026)

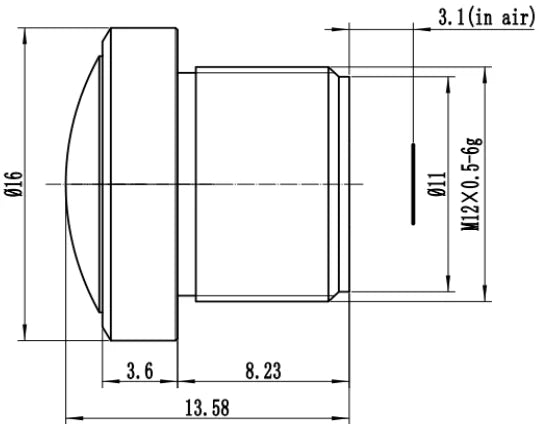

  • LS-CTV-0026 dimensions (mm)

CCTV lenses

1.5 mm, 1/2.5", 5 MP, M12-mount Fisheye Lens (LS-CTV-0026)

Model LS-CTV-0026

  • Focal length1.5 mm
  • MountM12
  • Sensor1/2.5"
  • ApertureF2.0 Fixed iris
  • Resolution5 Megapixel
$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.5 mm, 1/2.5", 5 MP, M12-mount Fisheye Lens (LS-CTV-0026)LS-CTV-0026

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.5 mm, 1/2.5", 5 MP, M12-mount Fisheye Lens. A 1.5 mm, 1/2.5" format, 5 megapixel M12 (S-mount) fisheye lens with a 210 degree field of view for panoramic security cameras. At a glance: focal length 1.5 mm; format 1/2.5" dia. 4.1; resolution 5 Megapixel; aperture F2.0 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0026
Format1/2.5" dia. 4.1
Angle of view (1/2.5", DxHxV)210 x 210 x 210 deg
CRA<9.93°
B.F.L.3.31 mm ( in air)
M.F.L.3.1 mm ( in air )
T.T.L.14.68 mm
IRDay & night (IR)
IR correctionIR

Optics

Focal length1.5 mm
ApertureF2.0 Fixed iris
M.O.D.0.3 m
F-theta distortion-6.1%
Back focal length (optical)3.31mm (in air)
Mechanical back focal length3.1mm (in air)
Total track length (TTL)14.68mm

Sensor and imaging

Resolution5 Megapixel

Mechanical

Sizedia. 16 x 13.58 mm
MountM12
Weight4.5 g
Shipping weight (estimated)0.11 kg
