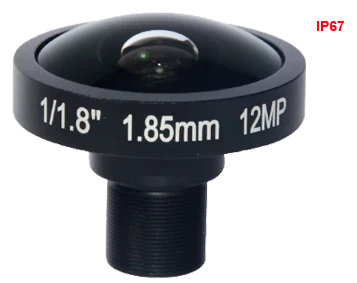

1.85 mm, 1/1.8", 12 MP, M12-mount Fisheye Lens, 1.85mm (LS-CTV-0049)
  • 1.85 mm, 1/1.8", 12 MP, M12-mount Fisheye Lens, 1.85mm (LS-CTV-0049)

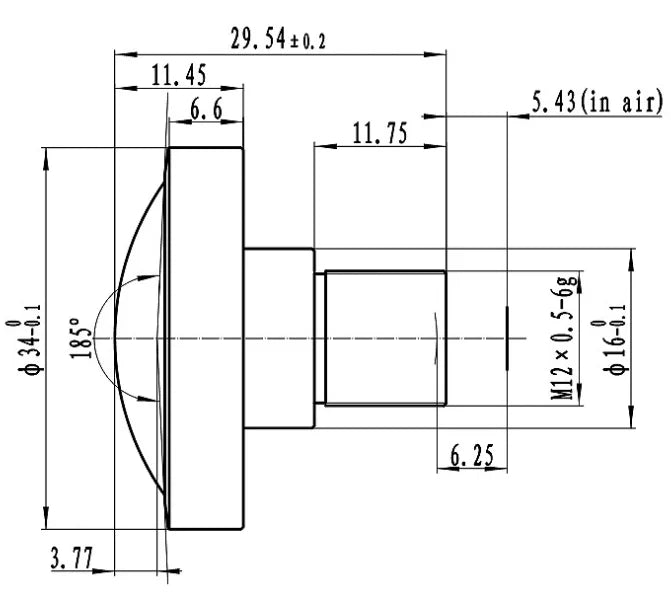

  • LS-CTV-0048 dimensions (mm)

CCTV lenses

1.85 mm, 1/1.8", 12 MP, M12-mount Fisheye Lens, 1.85mm (LS-CTV-0049)

Model LS-CTV-0049

  • Focal length1.85mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF2.0 Fixed iris
  • Resolution12 Megapixel
$89.00

Ships in 2-3 weeks

0.14 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.85 mm, 1/1.8", 12 MP, M12-mount Fisheye Lens, 1.85mm (LS-CTV-0049)LS-CTV-0049

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.85 mm, 1/1.8", 12 MP, M12-mount Fisheye Lens. A 1.85 mm F2.0 IP67 waterproof M12 fisheye lens for 1/1.8" 12-megapixel sensors with a 185 degree field of view. At a glance: focal length 1.85mm; format 1/1.8" (Max dia. 5.6); resolution 12 Megapixel; aperture F2.0 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0049
Format1/1.8" (Max dia. 5.6)
Angle of view (1/1.8", DxHxV)185 x 185 x 185 deg
Angle of view (1/2", DxHxV)185 x 185 x 155 deg
Angle of view (1/2.5", DxHxV)185 x 185 x 127 deg
NotesWater-proof IP67
IR correctionIR
Angle of view (1/1.7", DxHxV)185 x 185 x 185 deg
WaterproofIP67

Optics

Focal length1.85mm
Back focal length6.25mm
ApertureF2.0 Fixed iris
M.O.D.0.15m
Distortion-97%
Total track length (TTL)35.05mm

Sensor and imaging

Resolution12 Megapixel

Mechanical

Sizedia. 34 x 29.27mm
MountM12
Weight31g
Shipping weight (estimated)0.14 kg
