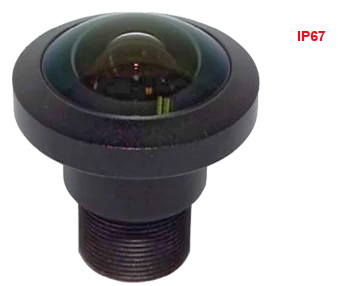

1.13 mm, 1/2.7", 8 MP, M12-mount Fisheye Lens (LS-CTV-0039)
  • 1.13 mm, 1/2.7", 8 MP, M12-mount Fisheye Lens (LS-CTV-0039)

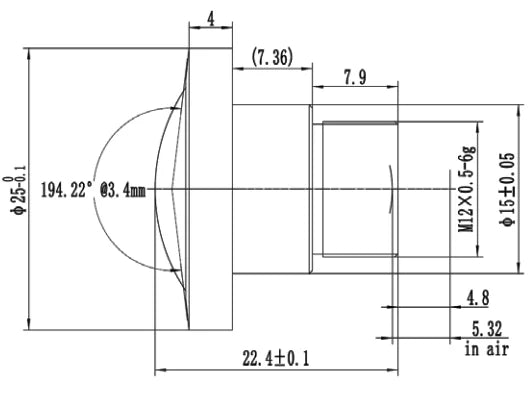

  • LS-CTV-0039 dimensions (mm)

CCTV lenses

1.13 mm, 1/2.7", 8 MP, M12-mount Fisheye Lens (LS-CTV-0039)

Model LS-CTV-0039

  • Focal length1.13mm
  • MountM12
  • Sensor1/2.7"
  • ApertureF2.0 Fixed Iris
  • Resolution8 Megapixel
$89.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.13 mm, 1/2.7", 8 MP, M12-mount Fisheye Lens (LS-CTV-0039)LS-CTV-0039

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.13 mm, 1/2.7", 8 MP, M12-mount Fisheye Lens. A 1.13 mm F2.0 IP67 waterproof M12 fisheye lens for 1/2.7" 8-megapixel sensors with a 195 degree field of view. At a glance: focal length 1.13mm; format 1/2.7"; resolution 8 Megapixel; aperture F2.0 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0039
IR correctedIR
Format1/2.7"
Angle of view (1/2.7", DxHxV)195 x 195 x 195 deg
Angle of view (1/3", DxHxV)195 x 195 x 195 deg
Angle of view (1/3.2", DxHxV)195 x 195 x 195 deg
CRA<7.7°
IR correctionIR
WaterproofIP67

Optics

Image circledia. 3.6
Focal length1.13mm
ApertureF2.0 Fixed Iris
M.O.D.0.15m
Back focal length5.32m
Total track length (TTL)27.72mm
Distortion-97.51%
Back focal length (optical)5.32mm

Sensor and imaging

Resolution8 Megapixel

Environment and compliance

Ingress protectionIP67

Mechanical

Sizedia. 25 x 22.4mm
MountM12
Weight15g
Image heightdia. 3.6
Shipping weight (estimated)0.12 kg
