5 mm, 1", 10 MP, C-mount Fisheye Lens (LS-CTV-0021)
  • 5 mm, 1", 10 MP, C-mount Fisheye Lens (LS-CTV-0021)

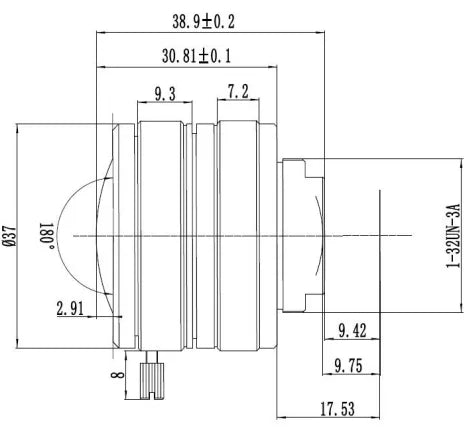

  • LS-CTV-0021 dimensions (mm)

CCTV lenses

5 mm, 1", 10 MP, C-mount Fisheye Lens (LS-CTV-0021)

Model LS-CTV-0021

  • Focal length5.0 mm
  • MountC-mount
  • Sensor1"
  • ApertureF2.2 Fixed iris
  • Resolution10 Megapixel
$89.00

Ships in 2-3 weeks

0.21 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

5 mm, 1", 10 MP, C-mount Fisheye Lens (LS-CTV-0021)LS-CTV-0021

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

5 mm, 1", 10 MP, C-mount Fisheye Lens. 5.0 mm, 10 megapixel 180-degree fisheye lens for 1" sensors with F2.2 aperture and IP67 water-proof housing. At a glance: focal length 5.0 mm; format 1" (dia. 14.2 mm @180°); resolution 10 Megapixel; aperture F2.2 Fixed iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0021
Format1" (dia. 14.2 mm @180°)
Angle of view (1", DxHxV)180 x 151 x 118 deg
Angle of view (1/1.6", DxHxV)119.3 x 95 x 70.2 deg
Angle of view (1/1.8", DxHxV)105 x 85 x 62 deg
CRA<9.9°
NotesIP67 Water-proof ; -30°C ~ +70°C

Optics

Focal length5.0 mm
ApertureF2.2 Fixed iris
M.O.D.0.1 m
Distortion-97%
Back focal length9.75 mm
Mechanical back focus9.43 mm
Back focal length (optical)9.75mm
Mechanical back focal length9.43mm

Sensor and imaging

Resolution10 Megapixel

Mechanical

Sizedia. 37 x 38.9 mm
MountC
Shipping weight (estimated)0.21 kg
