0.9 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0022)
  • 0.9 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0022)

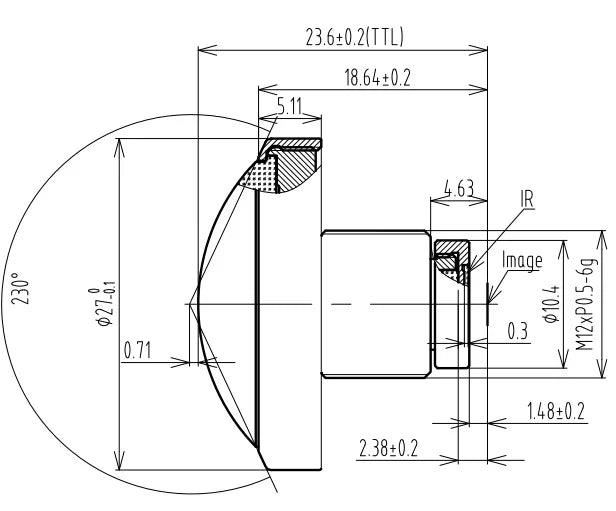

  • LS-CTV-0022 dimensions (mm)

CCTV lenses

0.9 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0022)

Model LS-CTV-0022

  • Focal length0.9 mm
  • MountM12
  • Sensor1/3.2"
  • ApertureF2.0 Fixed iris
  • Resolution8.0 Megapixel
$89.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.9 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0022)LS-CTV-0022

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.9 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens. High resolution: 8.0 megapixel covering 4K,1080P. Focal length: 0.9mm support wide FOV. Small format: 1/3.2". At a glance: focal length 0.9 mm; format 1/3.2" (Max image circle dia. 3.4); resolution 8.0 Megapixel; aperture F2.0 Fixed iris; mount M12 x 0.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0022
Format1/3.2" (Max image circle dia. 3.4)
Angle of view (1/3.2")230 x 230 x 230 deg
CRA16°
NotesElement 7G
Angle of view (1/3.2", DxHxV)230 x 230 x 230 deg

Optics

Focal length0.9 mm
ApertureF2.0 Fixed iris
M.O.D.0.05 m
Distortion<3%
Relative illumination60%
Total track length (TTL)23.6mm

Sensor and imaging

Resolution8.0 Megapixel

Mechanical

Sizedia. 27 x 18.97 mm
Optical total length23.6 mm
MountM12 x 0.5
Weight15 g
Shipping weight (estimated)0.12 kg
