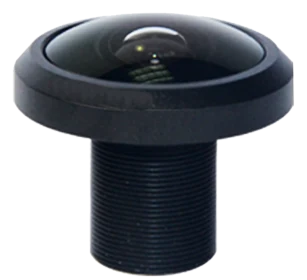

1.55 mm, 1/2.3", 12 MP, M12-mount Fisheye Lens (LS-CTV-0045)
  • 1.55 mm, 1/2.3", 12 MP, M12-mount Fisheye Lens (LS-CTV-0045)

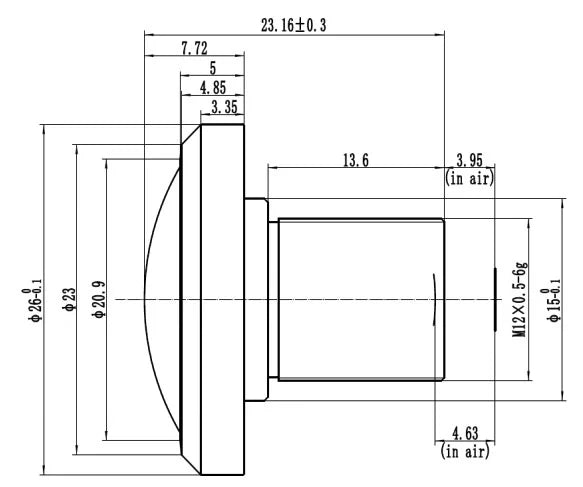

  • LS-CTV-0045 dimensions (mm)

CCTV lenses

1.55 mm, 1/2.3", 12 MP, M12-mount Fisheye Lens (LS-CTV-0045)

Model LS-CTV-0045

  • Focal length1.55mm
  • MountM12
  • Sensor1/2.3"
  • ApertureF2.0 Fixed iris
  • Resolution12 Megapixel
$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.55 mm, 1/2.3", 12 MP, M12-mount Fisheye Lens (LS-CTV-0045)LS-CTV-0045

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.55 mm, 1/2.3", 12 MP, M12-mount Fisheye Lens. 1.55 mm 1/2.3" 12 megapixel M12 fisheye lens with 195° field of view (dia. 4.7 mm image), for ITS crossings, panoramic surveillance and door intercoms. At a glance: focal length 1.55mm; format 1/2.3" dia. 4.7@195°; resolution 12 Megapixel; aperture F2.0 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0045
Format1/2.3" dia. 4.7@195°
Angle of view (1/2.3", DxHxV)195 x 195 x 195 deg
Angle of view (1/2.5", DxHxV)195 x 195 x 172 deg
Angle of view (1/2.7", DxHxV)195 x 195 x 157 deg
CRA<11.6%
Notes8G Element ; -30°~ +70°
IR correctionYes (day & night)

Optics

Focal length1.55mm
ApertureF2.0 Fixed iris
M.O.D.0.15m
Distortion-98%
Back focal length (optical)4.63mm ( in air)
Mechanical back focal length3.95mm ( in air )
Relative illumination50% @180°
Total track length (TTL)27.11mm

Sensor and imaging

Resolution12 Megapixel

Mechanical

Optical total length27.11mm
Sizedia. 26 x 23.16mm
MountM12
Weight8g
Shipping weight (estimated)0.11 kg
