2.1 mm, 1/1.7", 8 MP, M12-mount Fisheye Lens (LS-CTV-0036)
  • 2.1 mm, 1/1.7", 8 MP, M12-mount Fisheye Lens (LS-CTV-0036)

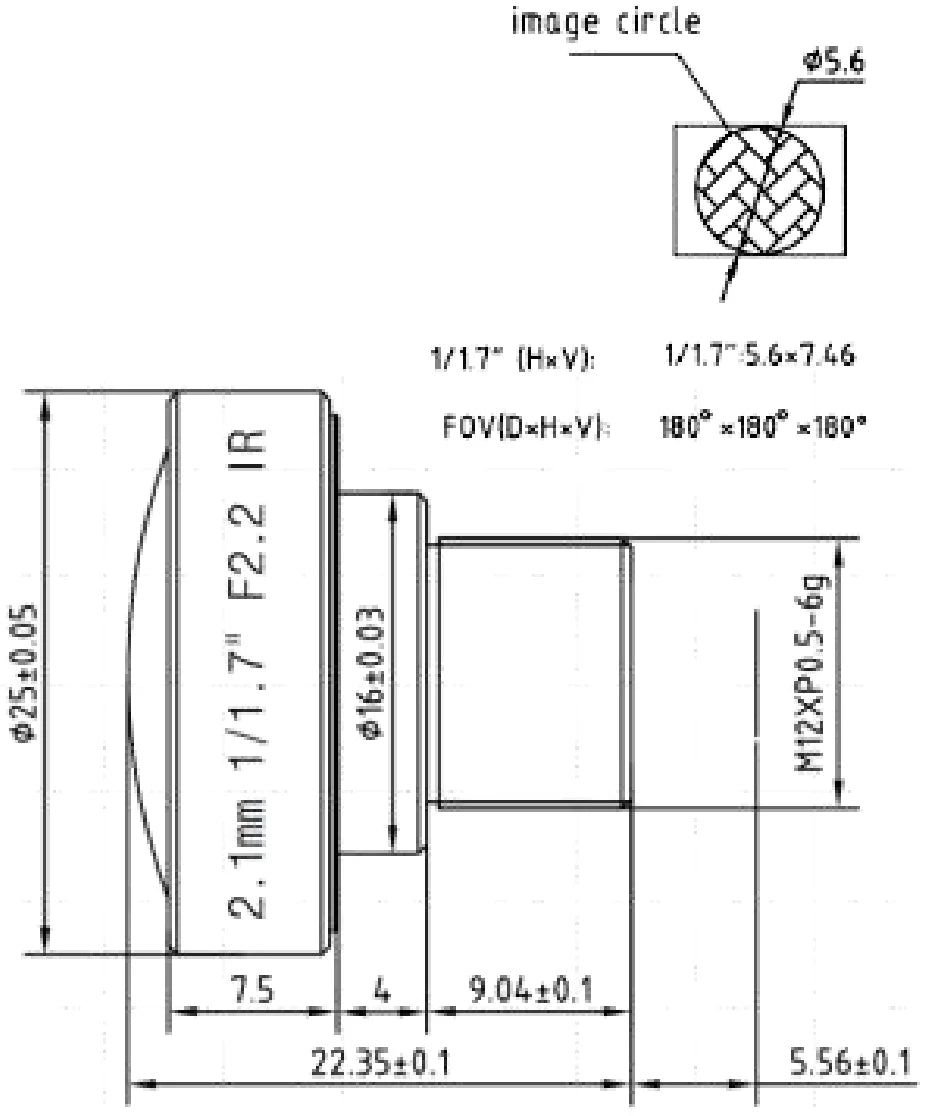

  • LS-CTV-0036 dimensions (mm)

CCTV lenses

2.1 mm, 1/1.7", 8 MP, M12-mount Fisheye Lens (LS-CTV-0036)

Model LS-CTV-0036

  • Focal length2.1mm
  • MountM12
  • Sensor1/1.7"
  • ApertureF2.2 Fixed iris
  • Resolution8 Megapixel
$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2.1 mm, 1/1.7", 8 MP, M12-mount Fisheye Lens (LS-CTV-0036)LS-CTV-0036

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2.1 mm, 1/1.7", 8 MP, M12-mount Fisheye Lens. A 2.1 mm F2.2 IR M12 fisheye lens for 1/1.7" 8-megapixel sensors with a 180 degree field of view. At a glance: focal length 2.1mm; format 1/1.7"(dia. 5.6); resolution 8 Megapixel; aperture F2.2 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0036
Format1/1.7"(dia. 5.6)
IR correctedIR
Angle of view (1/1.7")180 x 180 x 180 deg
IR correctionIR
Angle of view (1/1.7", DxHxV)180 x 180 x 180 deg

Optics

Focal length2.1mm
ApertureF2.2 Fixed iris
M.O.D.0.1m
Distortion-99.5%
Back focal length6.12mm ( in air)
Total track length (TTL)27.9mm
Back focal length (optical)6.12mm (in air)

Sensor and imaging

Resolution8 Megapixel

Mechanical

Sizedia. 25 x 22.35mm
MountM12
Weight10g
Shipping weight (estimated)0.11 kg
