0.85 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0038)
  • 0.85 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0038)

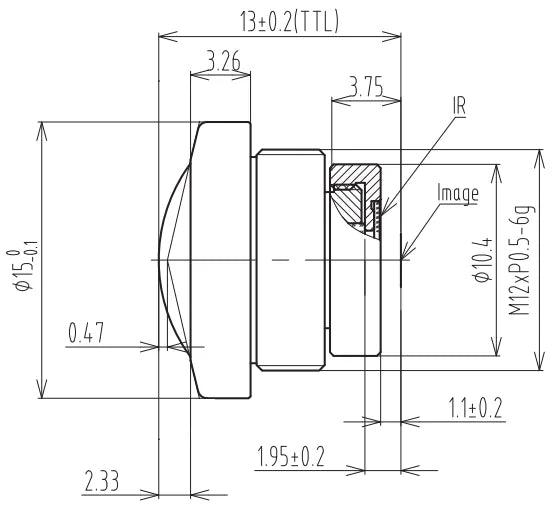

  • LS-CTV-0038 dimensions (mm)

CCTV lenses

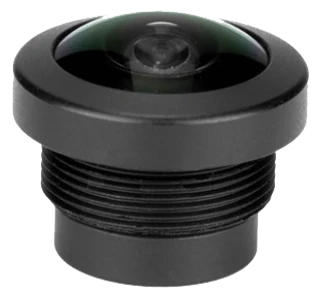

0.85 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0038)

Model LS-CTV-0038

  • Focal length0.85mm
  • MountM12
  • Sensor1/3.2"
  • ApertureF2.4 Fixed iris
  • Resolution8.0 Megapixel
$89.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.85 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0038)LS-CTV-0038

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.85 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens. A 0.85 mm F2.4 M12 fisheye lens for 1/3.2" 8-megapixel sensors with a 210 degree super-wide field of view. At a glance: focal length 0.85mm; format 1/3.2"; resolution 8.0 Megapixel; aperture F2.4 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0038
Format1/3.2"
Angle of view (1/3.2")210 x 210 x 210 deg
CRA14°
Angle of view (1/3.2", DxHxV)210 x 210 x 210 deg

Optics

Focal length0.85mm
Image circledia. 3.04
ApertureF2.4 Fixed iris
Relative illumination90%
Distortion<-4.5%
Back focal length1.95mm
Total track length (TTL)13mm
Max image circledia. 3.04
Back focal length (optical)1.95mm

Sensor and imaging

Resolution8.0 Megapixel

Mechanical

Sizedia. 18.7 x 29.27mm
MountM12
Weight15g ( 7G element )
Shipping weight (estimated)0.12 kg
