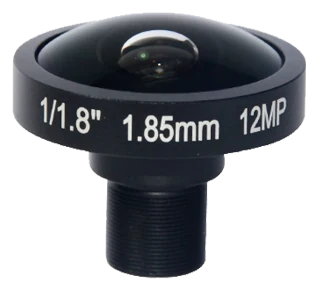

1.85 mm, 1/1.8", 12 MP, M12-mount Fisheye Lens (LS-CTV-0048)
  • 1.85 mm, 1/1.8", 12 MP, M12-mount Fisheye Lens (LS-CTV-0048)
  • LS-CTV-0048 dimensions (mm)

CCTV lenses

1.85 mm, 1/1.8", 12 MP, M12-mount Fisheye Lens (LS-CTV-0048)

Model LS-CTV-0048

  • Focal length1.85 mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF2.0 Fixed iris
  • Resolution12 Megapixel
$89.00

Ships in 2-3 weeks

0.14 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.85 mm, 1/1.8", 12 MP, M12-mount Fisheye Lens (LS-CTV-0048)LS-CTV-0048

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.85 mm, 1/1.8", 12 MP, M12-mount Fisheye Lens. High resolution: 12 megapixel covering 4K,1080P. Focal length: 1.85mm support wide FOV. Large format: 1/1.8" can cover 1/2", 1/2.8", 1/3". At a glance: focal length 1.85 mm; format 1/1.8" (Max dia. 5.6); resolution 12 Megapixel; aperture F2.0 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0048
Format1/1.8" (Max dia. 5.6)
Angle of view (1/1.8", DxHxV)185 x 185 x 185 deg
Angle of view (1/2", DxHxV)185 x 185 x 158 deg
Angle of view (1/2.3", DxHxV)185 x 185 x 151 deg
NotesImage circle max dia. 5.6
IR correctionIR
Angle of view (1/1.7", DxHxV)185 x 185 x 185 deg

Optics

Focal length1.85 mm
Back focal length6.25 mm
ApertureF2.0 Fixed iris
M.O.D.0.15 m
Distortion-97%
Total track length (TTL)23.9mm

Sensor and imaging

Resolution12 Megapixel

Mechanical

Sizedia. 34 x 29.27 mm
Optical total length35.05 mm
MountM12
Weight31 g
Shipping weight (estimated)0.14 kg
