CCTV lenses

1.6 mm, 1/1.8", 5 MP, M12-mount Fisheye Lens (LS-CTV-0030)

Model LS-CTV-0030

Focal length1.6 mm
MountM12
Sensor1/1.8"
ApertureF2.0 Fixed iris
Resolution5 Megapixel

$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

1.6 mm, 1/1.8", 5 MP, M12-mount Fisheye Lens. 1.6 mm, 5 megapixel IR-corrected M12 fisheye lens for 1/1.8" sensors (image circle dia. 4.6 mm at 180 deg) with a 180-degree field of view. At a glance: focal length 1.6 mm; format 1/1.8" dia. 4.6@180°; resolution 5 Megapixel; aperture F2.0 Fixed iris; mount M12.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0030
Format	1/1.8" dia. 4.6@180°
IR corrected	IR
Angle of view (1/1.8", DxHxV)	180 x 180 x 180 deg
Angle of view (1/2", DxHxV)	180 x 180 x 180 deg
Angle of view (1/2.5", DxHxV)	180 x 180 x 132 deg
Notes	-30°~ +80°
IR correction	IR

Optics

Focal length	1.6 mm
Aperture	F2.0 Fixed iris
M.O.D.	0.3 m
Distortion	-97.5%
Back focal length	4.88 mm ( in air)
Mechanical back focus	4.26 mm ( in air )
Back focal length (optical)	4.88mm (in air)
Mechanical back focal length	4.26mm (in air)
Total track length (TTL)	20.66mm

Sensor and imaging

Resolution	5 Megapixel

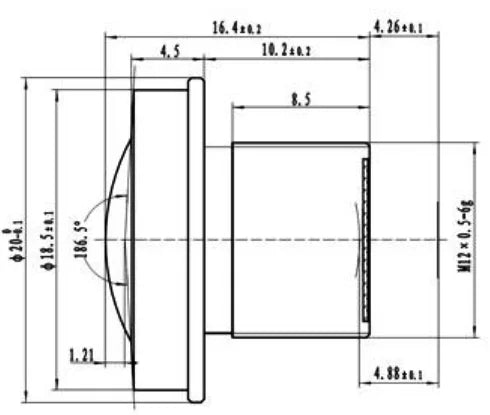

Mechanical

Total track length	20.66 mm
Size	dia. 20 x 16.4 mm
Mount	M12
Weight	7 g
Shipping weight (estimated)	0.11 kg
