1.5 mm, 1/2.3", 12 MP, M12-mount Fisheye Lens (LS-CTV-0029)
  • 1.5 mm, 1/2.3", 12 MP, M12-mount Fisheye Lens (LS-CTV-0029)

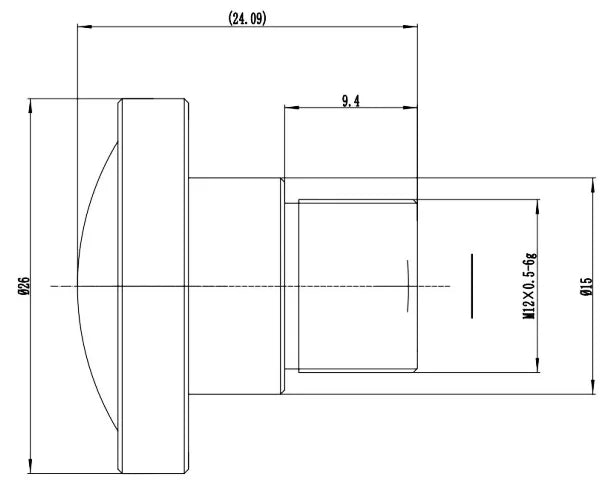

  • LS-CTV-0029 dimensions (mm)

CCTV lenses

1.5 mm, 1/2.3", 12 MP, M12-mount Fisheye Lens (LS-CTV-0029)

Model LS-CTV-0029

  • Focal length1.5mm
  • MountM12
  • Sensor1/2.3"
  • ApertureF2.2 Fixed iris
  • Resolution12 Megapixel
$89.00

Ships in 2-3 weeks

0.13 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.5 mm, 1/2.3", 12 MP, M12-mount Fisheye Lens (LS-CTV-0029)LS-CTV-0029

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.5 mm, 1/2.3", 12 MP, M12-mount Fisheye Lens. A 1.5 mm F2.2 IR M12 fisheye lens for 1/2.3" 12-megapixel sensors with a 180 degree field of view. At a glance: focal length 1.5mm; format 1/2.3" dia. 4.3@180°; resolution 12 Megapixel; aperture F2.2 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0029
Format1/2.3" dia. 4.3@180°
IR correctedIR
Angle of view (1/2.3")180 x 180 x 180 deg
Angle of view (1/2.5")180 x 180 x 149 deg
Angle of view (1/2.8")180 x 180 x 128 deg
CRA<13.53%
IR correctionIR
Angle of view (1/2.3", DxHxV)180 x 180 x 180 deg
Angle of view (1/2.5", DxHxV)180 x 180 x 149 deg
Angle of view (1/2.8", DxHxV)180 x 180 x 128 deg

Optics

Focal length1.5mm
ApertureF2.2 Fixed iris
M.O.D.0.3m
Distortion-98%
Back focal length4.51mm ( in air)
Mechanical back focal length3.88mm ( in air )
Total track length (TTL)27.11mm
Back focal length (optical)4.51mm (in air)

Sensor and imaging

Resolution12 Megapixel

Mechanical

Sizedia. 26 x 24.09mm
MountM12
Weight20g
Shipping weight (estimated)0.13 kg
