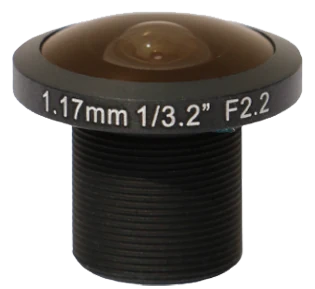

1.17 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0040)
  • 1.17 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0040)

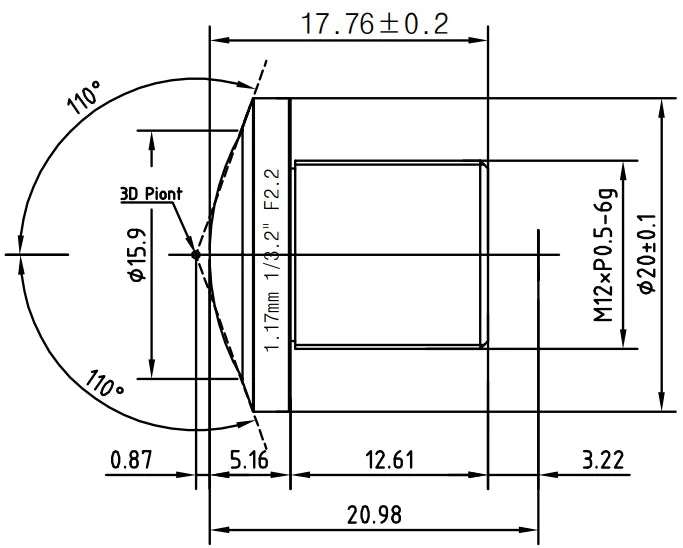

  • LS-CTV-0040 dimensions (mm)

CCTV lenses

1.17 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0040)

Model LS-CTV-0040

  • Focal length1.17mm
  • MountM12
  • Sensor1/3.2"
  • ApertureF2.2 Fixed iris
  • Resolution8 Megapixel
$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.17 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-CTV-0040)LS-CTV-0040

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.17 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens. A 1.17 mm F2.2 M12 fisheye lens for 1/3.2" 8-megapixel sensors with a 220 degree field of view. At a glance: focal length 1.17mm; format 1/3.2"(dia. 3.2); resolution 8 Megapixel; aperture F2.2 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0040
Format1/3.2"(dia. 3.2)
Angle of view (1/3.2")220 x 220 x 220 deg
Notes-20°C ~ +80°C
Angle of view (1/3.2", DxHxV)220 x 220 x 220 deg

Optics

Focal length1.17mm
ApertureF2.2 Fixed iris
M.O.D.0.1m
Distortion-147.6%
Back focal length3.72mm ( in air)
Total track length (TTL)20.98mm
Back focal length (optical)3.72mm (in air)

Sensor and imaging

Resolution8 Megapixel

Mechanical

Sizedia. 20 x 17.76mm
MountM12
Weight10g
Shipping weight (estimated)0.11 kg
