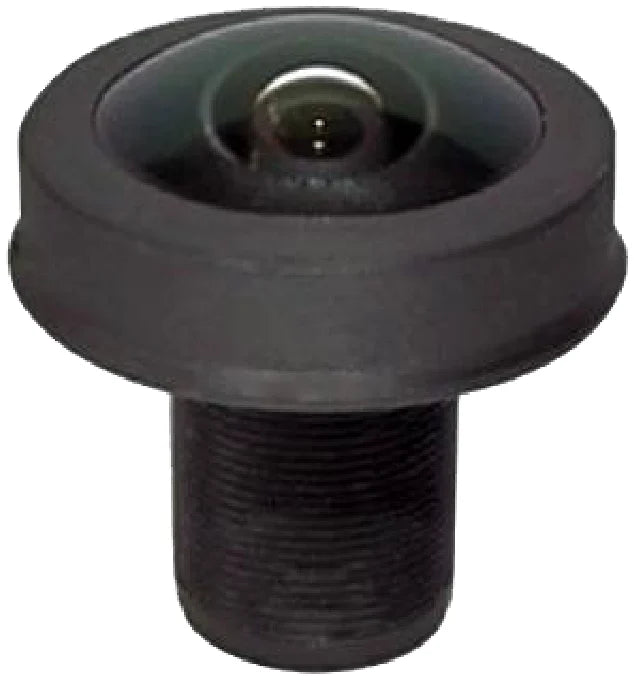

1.1 mm, 1/2.6", 10 MP, M12-mount Fisheye Lens (LS-CTV-0024)
  • 1.1 mm, 1/2.6", 10 MP, M12-mount Fisheye Lens (LS-CTV-0024)

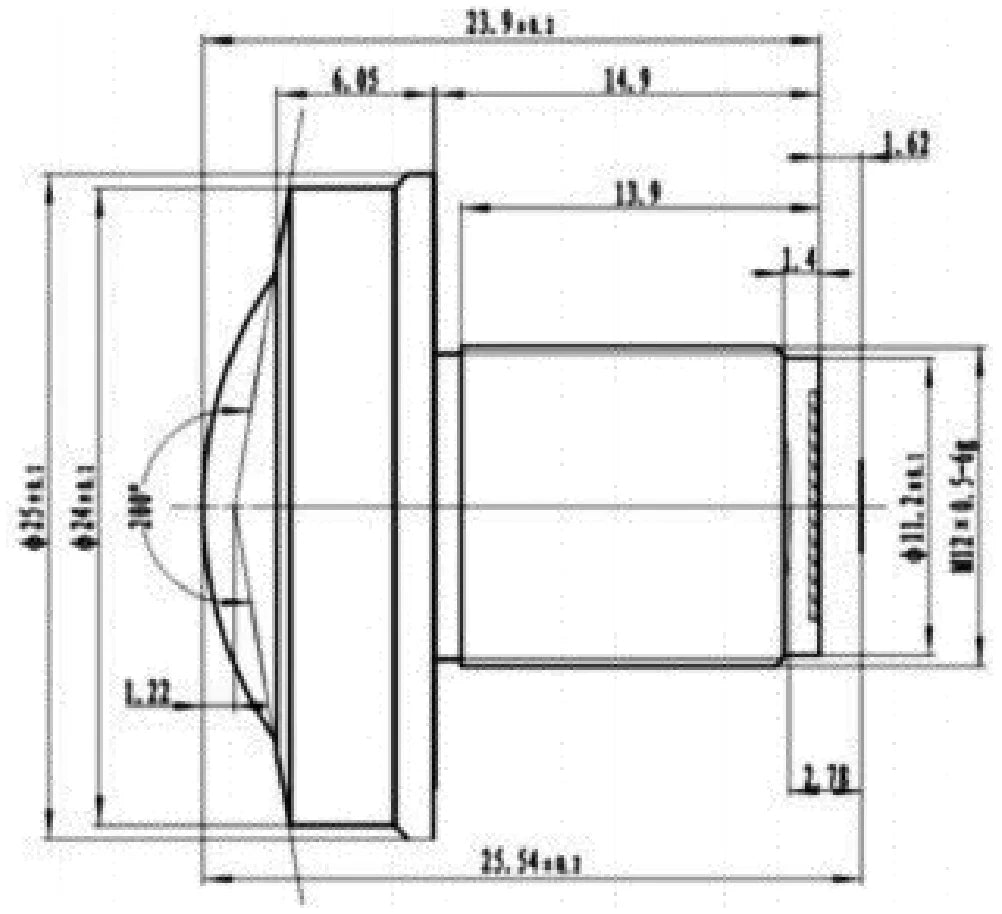

  • LS-CTV-0024 dimensions (mm)

CCTV lenses

1.1 mm, 1/2.6", 10 MP, M12-mount Fisheye Lens (LS-CTV-0024)

Model LS-CTV-0024

  • Focal length1.1 mm
  • MountM12
  • Sensor1/2.6"
  • ApertureF22 Fixed Iris
  • Resolution10 Megapixel
$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.1 mm, 1/2.6", 10 MP, M12-mount Fisheye Lens (LS-CTV-0024)LS-CTV-0024

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.1 mm, 1/2.6", 10 MP, M12-mount Fisheye Lens. 1.1 mm, 10 megapixel IR-corrected M12 fisheye lens for 1/2.6" sensors (image circle dia. 3.6 mm at 200 deg) with a 200-degree field of view. At a glance: focal length 1.1 mm; format 1/2.6"; resolution 10 Megapixel; aperture F22 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0024
IR correctedIR
Format1/2.6"
Angle of view (1/2.6", DxHxV)200 x 200 x 200 deg
Angle of view (1/3", DxHxV)200 x 200 x 200 deg
Angle of view (1/4", DxHxV)200 x 200 x 146 deg
Notes-30°C~+80°C
IR correctionIR

Optics

Image circledia. 3.6 @200°
Focal length1.1 mm
ApertureF22 Fixed Iris
M.O.D.0.3 m
Back focal length2.78 mm
Distortion-97.5%
Back focal length (optical)2.78mm
Total track length (TTL)25.54mm

Sensor and imaging

Resolution10 Megapixel

Mechanical

Total track length25.54 mm
Sizedia. 25 x 22.76 mm
MountM12
Weight9 g
Image heightdia. 3.6 @200°
Shipping weight (estimated)0.11 kg
