2 mm, 1/1.7", 12 MP, M12-mount Fisheye Lens (LS-CTV-0035)

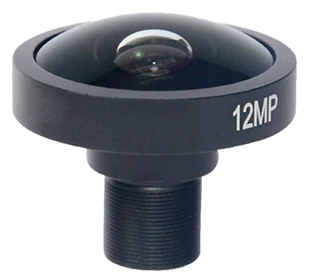

  • 2 mm, 1/1.7", 12 MP, M12-mount Fisheye Lens (LS-CTV-0035)

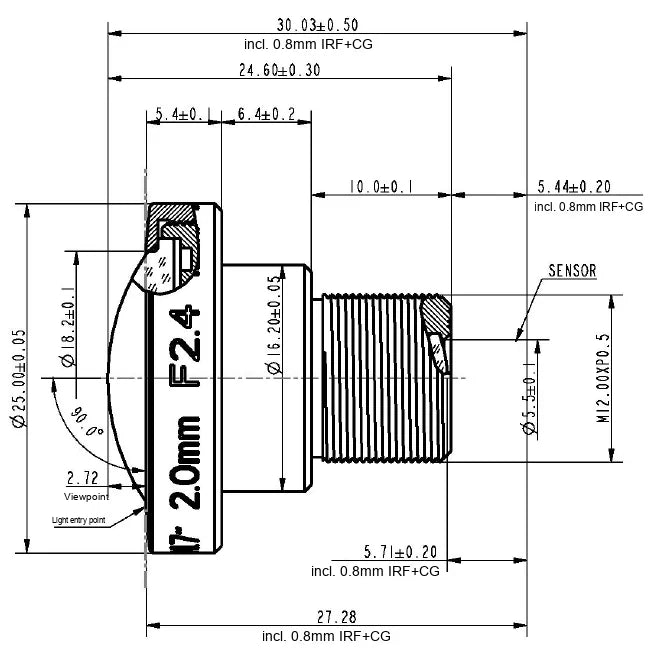

  • LS-CTV-0035 dimensions (mm)

CCTV lenses

2 mm, 1/1.7", 12 MP, M12-mount Fisheye Lens (LS-CTV-0035)

Model LS-CTV-0035

  • Focal length2.0 mm
  • MountM12
  • Sensor1/1.7"
  • ApertureF2.4 Fixed Iris
  • Resolution12 Megapixel
$89.00

Ships in 2-3 weeks

0.15 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2 mm, 1/1.7", 12 MP, M12-mount Fisheye Lens (LS-CTV-0035)LS-CTV-0035

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2 mm, 1/1.7", 12 MP, M12-mount Fisheye Lens. 2.0 mm F2.4 12 megapixel fisheye lens with a 185° angle of view and >93.87% relative illumination, M12 mount; the 1/1.7" format covers 1/1.8", 1/2" and 1/2.5" cameras. At a glance: focal length 2.0 mm; format 1/1.7"; resolution 12 Megapixel; aperture F2.4 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0035
IR correctionIR corrected (day/night)
Format1/1.7"
Angle of view (1/1.7")185 x 185 x 185 deg
Angle of view (1/1.7", DxHxV)185 x 185 x 185 deg

Optics

Image circledia. 5.6 mm
Focal length2.0 mm
ApertureF2.4 Fixed Iris
M.O.D.0.1 m
Relative illumination>93.87%
Total track length (TTL)30.03 mm
Distortion-10.6 %

Sensor and imaging

Resolution12 Megapixel

Mechanical

Sizedia. 26.5 x 30.47 mm
MountM12
Weight35 g
Shipping weight (estimated)0.15 kg
