16 mm, 2/3", 10 MP, C-mount motorized-focus lens
LS-FFL-1515
- Focal length 16.0 +/-0.3 mm (at 0.20 m)
- Mount C-mount
- Sensor 2/3"
$1,089.00
Ships in 2-3 weeks
Lenses
C-mount machine vision lenses
Choose the lens beyond its mountChoose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.
Products

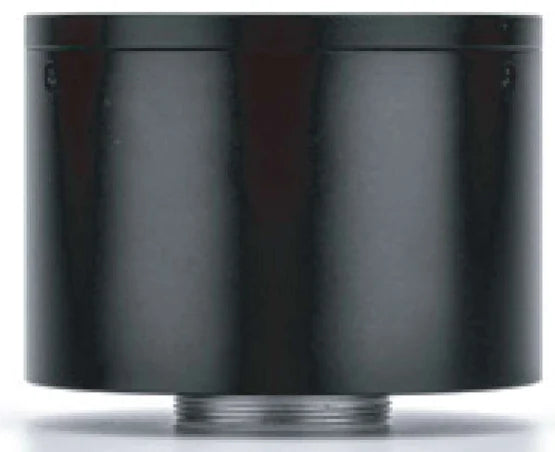

25 mm, 2/3", 10 MP, C-mount motorized-focus lens, 0.3348x
LS-FFL-1514
- Focal length 25 mm
- Mount C-mount
- Sensor 2/3"
$1,099.00
Ships in 2-3 weeks

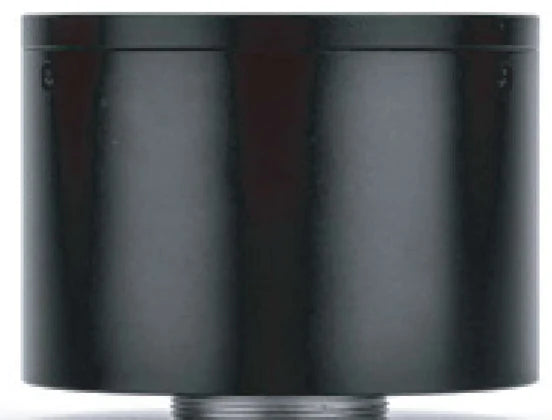

16 mm, 2/3", 10 MP, C-mount motorized-focus lens, 2/3" (dia. 13 mm)
LS-FFL-1513
- Focal length 16 mm
- Mount C-mount
- Sensor 2/3"
$1,089.00
Ships in 2-3 weeks
12 mm, 2/3", 5 MP, C-mount motorized-focus lens
LS-FFL-1512
- Focal length 12 mm
- Mount C-mount
- Sensor 2/3"
$959.00
Ships in 2-3 weeks

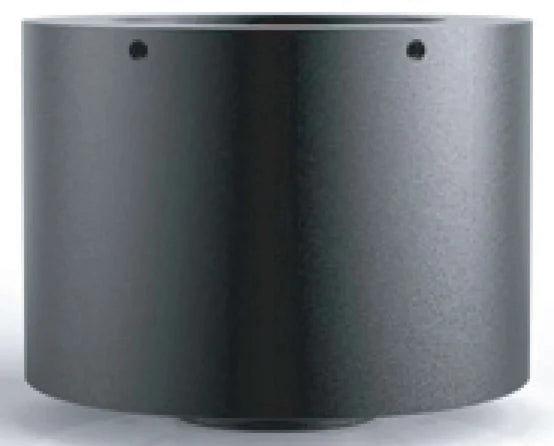

9 mm, 2/3", 5 MP, C-mount motorized-focus lens
LS-FFL-1511
- Focal length 9 mm
- Mount C-mount
- Sensor 2/3"
$959.00
Ships in 2-3 weeks
35 mm, 1.2", 25 MP, C-mount motorized-focus lens
LS-FFL-1510
- Focal length 35 mm
- Mount C-mount
- Sensor 1.2"
$1,449.00
Ships in 2-3 weeks
90 mm, 1.2", 20 MP, C-mount macro lens
LS-FFL-1448
- Focal length 90 mm
- Magnification 0.45x-0.33x
- Mount C-mount
$849.00
Ships in 2-3 weeks
75 mm, 1.1", 12 MP, C-mount macro lens, 0.18x
LS-FFL-1453
- Focal length 75 mm
- Magnification 0.18x-0.38x
- Mount C-mount
$589.00
Ships in 2-3 weeks
50 mm, 1.1", 12 MP, C-mount macro lens, 0.5x
LS-FFL-1452
- Focal length 50 mm
- Magnification 0.5x-0.8x
- Mount C-mount
$549.00
Ships in 2-3 weeks
35 mm, 1.1", 12 MP, C-mount macro lens, WD 59-150 mm
LS-FFL-1451
- Focal length 35 mm
- Magnification 0.25x-0.7x
- Mount C-mount
$519.00
Ships in 2-3 weeks
25 mm, 1.1", 12 MP, C-mount macro lens, WD 65-206 mm
LS-FFL-1450
- Focal length 25 mm
- Magnification 0.1x-0.4x
- Mount C-mount
$499.00
Ships in 2-3 weeks
16 mm, 1.1", 12 MP, C-mount macro lens
LS-FFL-1449
- Focal length 16 mm
- Magnification 0.25x ~ 0.03x
- Mount C-mount
$489.00
Ships in 2-3 weeks
75 mm, 1.2", 10 MP, C-mount liquid-lens autofocus lens
LS-FFL-1418
- Focal length 75 mm
- Mount C-mount
- Sensor 1.2"
$959.00
Ships in 2-3 weeks
35 mm, 1.1", 10 MP, C-mount liquid-lens autofocus lens
LS-FFL-1417
- Focal length 35 mm
- Mount C-mount
- Sensor 1.1"
$959.00
Ships in 2-3 weeks
18 mm, 1.1", 10 MP, C-mount liquid-lens autofocus lens
LS-FFL-1416
- Focal length 18 mm
- Mount C-mount
- Sensor 1.1"
$959.00
Ships in 2-3 weeks
16 mm, 1.1", 10 MP, C-mount liquid-lens autofocus lens
LS-FFL-1415
- Focal length 16 mm
- Mount C-mount
- Sensor 1.1"
$959.00
Ships in 2-3 weeks
8 mm, 1.1", 5 MP, C-mount anti-vibration machine vision lens
LS-FFL-0427
- Focal length 8 mm
- Mount C-mount
- Sensor 1.1"
$379.00
Ships in 2-3 weeks
50 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens
LS-FFL-0451
- Focal length 50 mm
- Mount C-mount
- Sensor 2/3"
$319.00
Ships in 2-3 weeks
50 mm, 2/3", C-mount anti-vibration machine vision lens
LS-FFL-0446
- Focal length 50 mm
- Mount C-mount
- Sensor 2/3"
$319.00
Ships in 2-3 weeks
35 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens
LS-FFL-0450
- Focal length 35 mm
- Mount C-mount
- Sensor 2/3"
$289.00
Ships in 2-3 weeks
35 mm, 2/3", C-mount anti-vibration machine vision lens
LS-FFL-0445
- Focal length 35 mm
- Mount C-mount
- Sensor 2/3"
$289.00
Ships in 2-3 weeks
25 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens
LS-FFL-0449
- Focal length 25 mm
- Mount C-mount
- Sensor 2/3"
$269.00
Ships in 2-3 weeks
25 mm, 2/3", C-mount anti-vibration machine vision lens
LS-FFL-0444
- Focal length 25 mm
- Mount C-mount
- Sensor 2/3"
$269.00
Ships in 2-3 weeks
16 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens
LS-FFL-0448
- Focal length 16 mm
- Mount C-mount
- Sensor 2/3"
$249.00
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-FFL-151516 mm, 2/3", 10 MP, C-mount motorized-focus lens
| 16.0 +/-0.3 mm (at 0.20 m) | C-mount | 2/3" | F2.0 | 10 MP | - | $1,089.00 | Ships in 2-3 weeks | |
 LS-FFL-151425 mm, 2/3", 10 MP, C-mount motorized-focus lens, 0.3348x
| 25 mm | C-mount | 2/3" | F2.0 | 10 MP | - | $1,099.00 | Ships in 2-3 weeks | |
 LS-FFL-151316 mm, 2/3", 10 MP, C-mount motorized-focus lens, 2/3" (dia. 13 mm)
| 16 mm | C-mount | 2/3" | F2.0 | 10 MP | - | $1,089.00 | Ships in 2-3 weeks | |
 LS-FFL-151212 mm, 2/3", 5 MP, C-mount motorized-focus lens
| 12 mm | C-mount | 2/3" | F1.8 | 5 MP | - | $959.00 | Ships in 2-3 weeks | |
 LS-FFL-15119 mm, 2/3", 5 MP, C-mount motorized-focus lens
| 9 mm | C-mount | 2/3" | F2.0 | 5 MP | - | $959.00 | Ships in 2-3 weeks | |
 LS-FFL-151035 mm, 1.2", 25 MP, C-mount motorized-focus lens
| 35 mm | C-mount | 1.2" | F2.4-16 | 25 MP | - | $1,449.00 | Ships in 2-3 weeks | |
 LS-FFL-144890 mm, 1.2", 20 MP, C-mount macro lens
| 90 mm | C-mount | 1.2" | F2.8 | - | 0.45x-0.33x | $849.00 | Ships in 2-3 weeks | |
 LS-FFL-145375 mm, 1.1", 12 MP, C-mount macro lens, 0.18x
| 75 mm | C-mount | 1.1" | F3.8 Manual Iris | - | 0.18x-0.38x | $589.00 | Ships in 2-3 weeks | |
 LS-FFL-145250 mm, 1.1", 12 MP, C-mount macro lens, 0.5x
| 50 mm | C-mount | 1.1" | F2.8 Manual Iris | - | 0.5x-0.8x | $549.00 | Ships in 2-3 weeks | |
 LS-FFL-145135 mm, 1.1", 12 MP, C-mount macro lens, WD 59-150 mm
| 35 mm | C-mount | 1.1" | F2.8 Manual Iris | - | 0.25x-0.7x | $519.00 | Ships in 2-3 weeks | |
 LS-FFL-145025 mm, 1.1", 12 MP, C-mount macro lens, WD 65-206 mm
| 25 mm | C-mount | 1.1" | F2.8 Manual Iris | - | 0.1x-0.4x | $499.00 | Ships in 2-3 weeks | |
 LS-FFL-144916 mm, 1.1", 12 MP, C-mount macro lens
| 16 mm | C-mount | 1.1" | F2.8~16 (+/-10%) | - | 0.25x ~ 0.03x | $489.00 | Ships in 2-3 weeks | |
 LS-FFL-141875 mm, 1.2", 10 MP, C-mount liquid-lens autofocus lens
| 75 mm | C-mount | 1.2" | F8.7 | 0.3 > @ 75 lp/mm | - | $959.00 | Ships in 2-3 weeks | |
 LS-FFL-141735 mm, 1.1", 10 MP, C-mount liquid-lens autofocus lens
| 35 mm | C-mount | 1.1" | F6.3 | 0.3 > @ 110 lp/mm | - | $959.00 | Ships in 2-3 weeks | |
 LS-FFL-141618 mm, 1.1", 10 MP, C-mount liquid-lens autofocus lens
| 18 mm | C-mount | 1.1" | F5.6 | 0.3 > @ 125 lp/mm | - | $959.00 | Ships in 2-3 weeks | |
 LS-FFL-141516 mm, 1.1", 10 MP, C-mount liquid-lens autofocus lens
| 16 mm | C-mount | 1.1" | F4 | 0.3 > @ 140 lp/mm | - | $959.00 | Ships in 2-3 weeks | |
 LS-FFL-04278 mm, 1.1", 5 MP, C-mount anti-vibration machine vision lens
| 8 mm | C-mount | 1.1" | F1.4 Manual iris | 5.0 Megapixel | - | $379.00 | Ships in 2-3 weeks | |
 LS-FFL-045150 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens
| 50 mm | C-mount | 2/3" | F1.4 Manual iris | 5.0 Megapixel | - | $319.00 | Ships in 2-3 weeks | |
 LS-FFL-044650 mm, 2/3", C-mount anti-vibration machine vision lens
| 50 mm | C-mount | 2/3" | F2.0 | - | - | $319.00 | Ships in 2-3 weeks | |
 LS-FFL-045035 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens
| 35 mm | C-mount | 2/3" | F1.4 | 5.0 Megapixel | - | $289.00 | Ships in 2-3 weeks | |
|
LS-FFL-044535 mm, 2/3", C-mount anti-vibration machine vision lens
| 35 mm | C-mount | 2/3" | F1.6 | - | - | $289.00 | Ships in 2-3 weeks | |
 LS-FFL-044925 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens
| 25 mm | C-mount | 2/3" | F1.4 Manual iris | 5.0 Megapixel | - | $269.00 | Ships in 2-3 weeks | |
|
LS-FFL-044425 mm, 2/3", C-mount anti-vibration machine vision lens
| 25 mm | C-mount | 2/3" | F1.6 | - | - | $269.00 | Ships in 2-3 weeks | |
 LS-FFL-044816 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens
| 16 mm | C-mount | 2/3" | F1.4 Manual iris | 5.0 Megapixel | - | $249.00 | Ships in 2-3 weeks |
Choose the lens beyond its mount
A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.
- Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
- Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
- Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.
