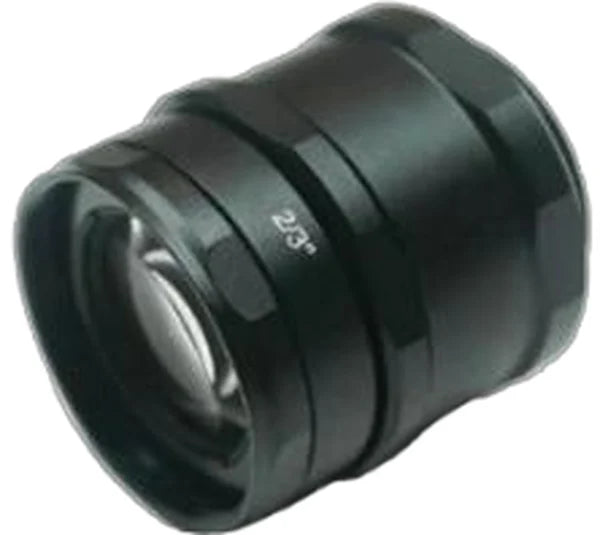

50 mm, 2/3", 5 MP, C-mount Anti-Vibration Machine Vision Lens (LS-FFL-0451)

Model LS-FFL-0451

Focal length50 mm
MountC-mount
Sensor2/3"
ApertureF1.4 Manual iris
Resolution5.0 Megapixel

$319.00

Ships in 2-3 weeks

0.25 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

50 mm, 2/3", 5 MP, C-mount Anti-Vibration Machine Vision Lens. 50 mm F1.4 anti-vibration (anti-shock) lens for 2/3" cameras, rated 5 megapixel, with <-0.8% TV distortion and a compact body. For automation and machine vision in areas with vibration. At a glance: focal length 50 mm; format 2/3"; resolution 5.0 Megapixel; aperture F1.4 Manual iris; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0451
Format	2/3"
Angle of view (2/3")	13 x 10.5 x 7.86 deg
Angle of view (1/2")	9.5 x 7.6 x 5.27 deg
Performance	Anti-shock

Optics

Focal length	50 mm
Aperture	F1.4 Manual iris
M.O.D.	0.3 m
Distortion (TV)	<-0.8%
Iris	Fixed/Manual iris
W.D. / magnification / FOV 2/3" (H x V mm)	2000 mm: 0.025X (352.0 x 264.0); 1000 mm: 0.051X (172.5 x 129.4); 900 mm: 0.057X (154.4 x 115.8); 850 mm: 0.06X (146.7 x 110.0); 800 mm: 0.064X (137.5 x 103.1); 750 mm: 0.068X (129.4 x 97.1); 700 mm: 0.073X (120.5 x 90.4); 650 mm: 0.079X (111.4 x 83.5); 600 mm: 0.0858X (102.6 x 76.9); 550 mm: 0.094X (93.6 x 70.2); 500 mm: 0.104X (85.6 x 63.5); 450 mm: 0.116X (75.9 x 56.9); 400 mm: 0.131X (67.2 x 50.4); 350 mm: 0.15X (58.7 x 44.0); 300 mm: 0.177X (49.7 x 37.3)

Sensor and imaging

Resolution	5.0 Megapixel

Environment and compliance

Operating temperature	-10° ~ +50°

Mechanical

Filter size	M37 x P0.5
Size	dia. 40 x 47.5 mm
Mount	C
Weight	105 g
Shipping weight (estimated)	0.25 kg

Other models in the Anti-Vibration Machine Vision lenses (LS-FFL-S78) series

See all 25 models

Model	Size / key data	Price	Availability	Link
LS-FFL-0441	8 mm, 2/3", C-mount	$239.00	Ships in 2-3 weeks	View
LS-FFL-0442	12 mm, 2/3", C-mount	$239.00	Ships in 2-3 weeks	View
LS-FFL-0431	1/1.8"	$249.00 Quote	Ships in 2-3 weeks	View
LS-FFL-0437	16 mm, 2/3", 8 MP, C-mount	$249.00	Ships in 2-3 weeks	View
LS-FFL-0443	16 mm, 2/3", C-mount	$249.00	Ships in 2-3 weeks	View
LS-FFL-0448	16 mm, 2/3", 5 MP, C-mount	$249.00	Ships in 2-3 weeks	View
LS-FFL-0432	25 mm, 1/1.8", 6 MP, C-mount	$269.00	Ships in 2-3 weeks	View
LS-FFL-0434	25 mm, 1/1.8", 6 MP, C-mount	$269.00	Ships in 2-3 weeks	View
LS-FFL-0436	25 mm, 1/1.8", 6 MP, C-mount	$269.00	Ships in 2-3 weeks	View
LS-FFL-0429	25 mm, 1/1.8", 6 MP, C-mount	$269.00	Ships in 2-3 weeks	View
LS-FFL-0438	25 mm, 2/3", 8 MP, C-mount	$269.00	Ships in 2-3 weeks	View
LS-FFL-0444	25 mm, 2/3", C-mount	$269.00	Ships in 2-3 weeks	View
LS-FFL-0449	25 mm, 2/3", 5 MP, C-mount	$269.00	Ships in 2-3 weeks	View
LS-FFL-0433	35 mm, 1/1.8", 6 MP, C-mount	$289.00	Ships in 2-3 weeks	View
LS-FFL-0435	35 mm, 1/1.8", 6 MP, C-mount	$289.00	Ships in 2-3 weeks	View
LS-FFL-0439	35 mm, 2/3", 8 MP, C-mount	$289.00	Ships in 2-3 weeks	View
LS-FFL-0445	35 mm, 2/3", C-mount	$289.00	Ships in 2-3 weeks	View
LS-FFL-0450	35 mm, 2/3", 5 MP, C-mount	$289.00	Ships in 2-3 weeks	View
LS-FFL-0447	4 mm, 2/3", 5 MP, C-mount	$299.00	Ships in 2-3 weeks	View
LS-FFL-0428	45 mm, 1/1.8", 6 MP, C-mount	$309.00	Ships in 2-3 weeks	View
LS-FFL-0430	43 mm, 1/1.8", 6 MP, C-mount	$309.00	Ships in 2-3 weeks	View
LS-FFL-0440	50 mm, 2/3", 8 MP, C-mount	$319.00	Ships in 2-3 weeks	View
LS-FFL-0446	50 mm, 2/3", C-mount	$319.00	Ships in 2-3 weeks	View
LS-FFL-0427	8 mm, 1.1", 5 MP, C-mount	$379.00	Ships in 2-3 weeks	View
