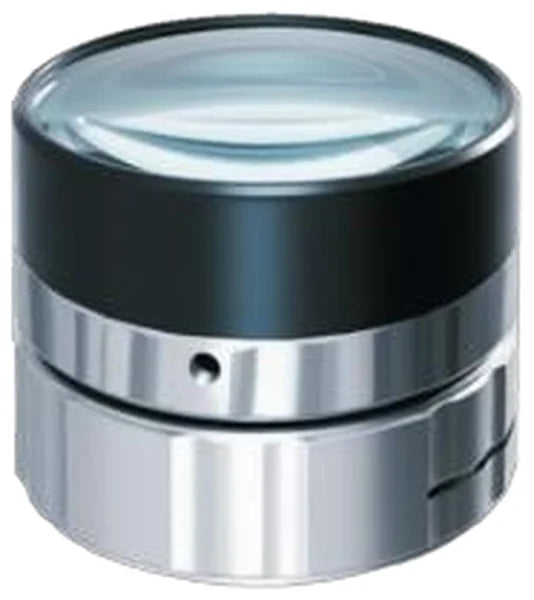

25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens, 0.1x, WD 252 mm (LS-FFL-0432)
  • 25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens, 0.1x, WD 252 mm (LS-FFL-0432)

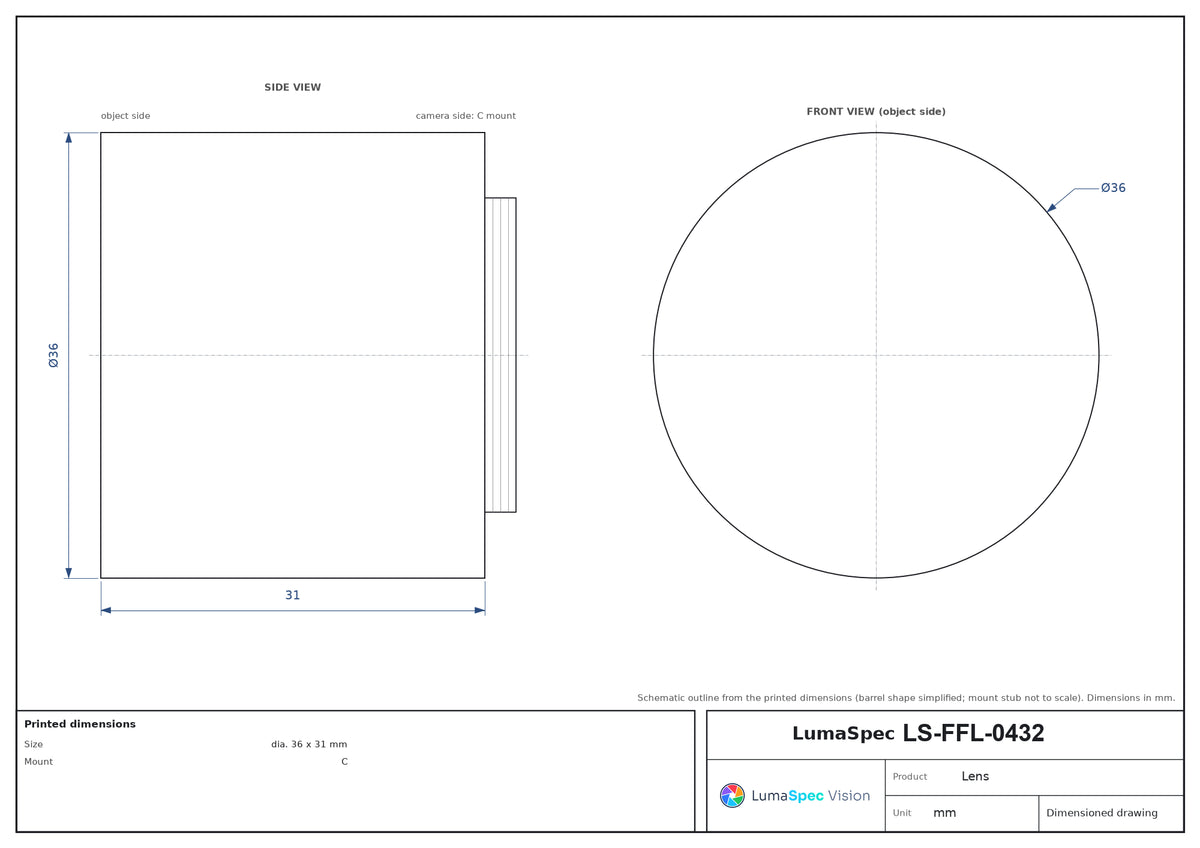

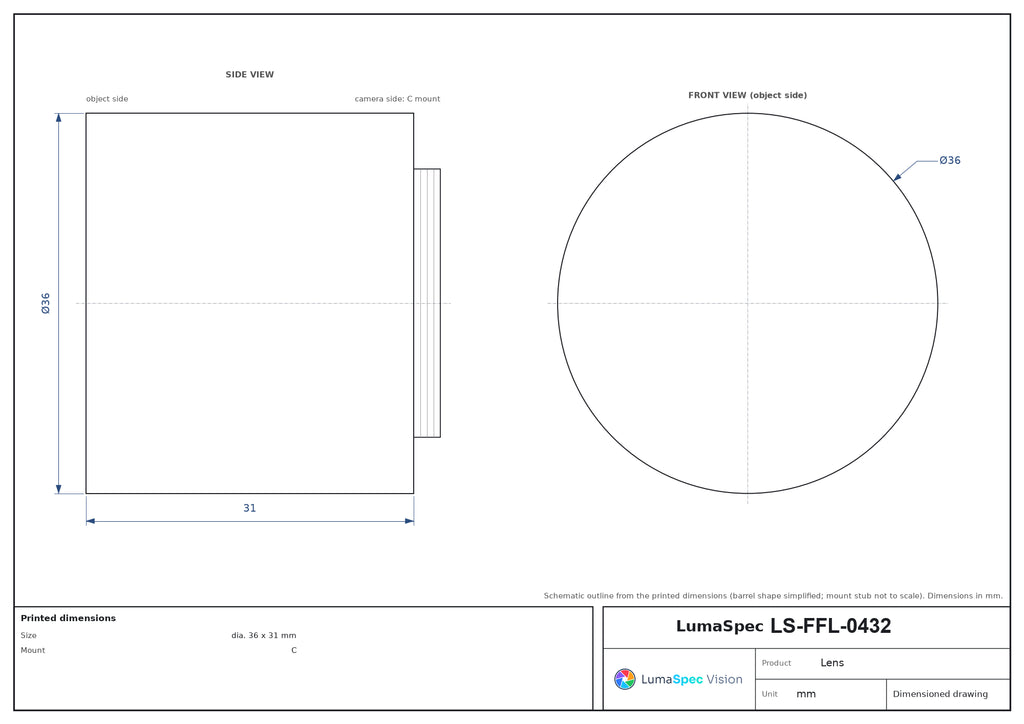

  • LS-FFL-0432 dimensions (mm)

Machine vision lenses

25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens, 0.1x, WD 252 mm (LS-FFL-0432)

Model LS-FFL-0432

  • Focal length25 mm
  • Magnification0.1x
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF5.6 Fixed iris
  • Resolution6.0 Megapixel
$269.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens, 0.1x, WD 252 mm (LS-FFL-0432)LS-FFL-0432

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens. Anti-vibration 0.1x fixed-magnification lens for 1/1.8" 6 MP sensors, 25 mm focal length, 252 mm working distance, F5.6 fixed iris, C-mount. At a glance: magnification 0.1x; focal length 25 mm; format 1/1.8" (Max dia. 9 mm); resolution 6.0 Megapixel; aperture F5.6 Fixed iris.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0432
Format1/1.8" (Max dia. 9 mm)
NA0.00894
W.D.252 mm

Optics

Focal length25 mm
Magnification0.1x
ApertureF5.6 Fixed iris
Field of view (1/1.8" 7.13 x 5.37)71.3 x 53.7 mm
Field of view (1/1.8" 7.43 x 4.9)74.3 x 49.0 mm
Distortion (image side)0.06%
Object-side resolution37.5um
Object-side depth of field44.8mm
MTF30 (image side)172lp/mm

Sensor and imaging

Resolution6.0 Megapixel

Mechanical

Sizedia. 36 x 31 mm
MountC
Shipping weight (estimated)0.38 kg
