Machine vision lenses

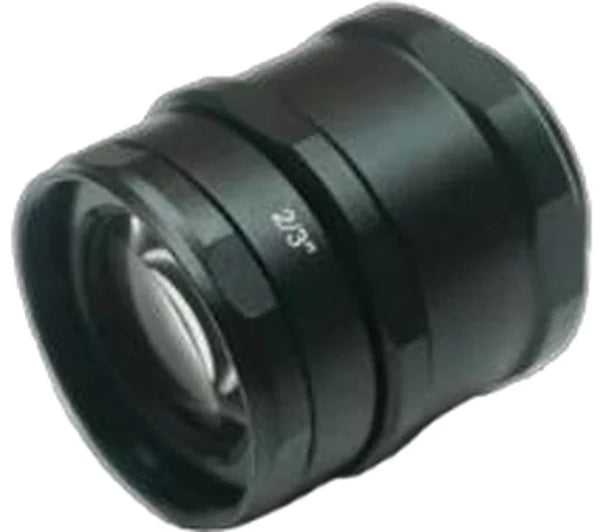

35 mm, 2/3", 5 MP, C-mount Anti-Vibration Machine Vision Lens (LS-FFL-0450)

Model LS-FFL-0450

Focal length35 mm
MountC-mount
Sensor2/3"
ApertureF1.4
Resolution5.0 Megapixel

$289.00

Ships in 2-3 weeks

0.25 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

35 mm, 2/3", 5 MP, C-mount Anti-Vibration Machine Vision Lens. 35 mm F1.4 anti-vibration lens for 2/3" cameras, rated 5 megapixel, with <-0.8% TV distortion. For automation and machine vision in areas with vibration. At a glance: focal length 35 mm; format 2/3"; resolution 5.0 Megapixel; aperture F1.4; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0450
Format	2/3"
Angle of view (2/3")	17.3 x 13.9 x 10.4 deg
Angle of view (1/2")	12.6 x 10.1 x 7.6 deg
Performance	Anti-shock

Optics

Focal length	35 mm
Aperture	F1.4
Distortion (TV)	<-0.8%
M.O.D.	0.2 m
Iris	Fixed / Manual iris optional
W.D. / magnification / FOV 2/3" (H x V mm)	900 mm: 0.037X (236.2 x 176.9); 850 mm: 0.040X (223.2 x 167.2); 800 mm: 0.042X (210.3 x 157.5); 750 mm: 0.045X (197.3 x 147.8); 700 mm: 0.048X (184.3 x 138.1); 650 mm: 0.052X (171.4 x 128.4); 600 mm: 0.056X (158.4 x 118.6); 550 mm: 0.061X (145.5 x 108.9); 500 mm: 0.067X (132.5 x 99.2); 450 mm: 0.074X (119.6 x 89.5); 400 mm: 0.083X (106.6 x 79.8); 350 mm: 0.094X (93.7 x 70.1); 300 mm: 0.110X (80.7 x 60.4); 250 mm: 0.131X (67.7 x 50.6); 200 mm: 0.162X (54.7 x 40.9); 150 mm: 0.213X (41.8 x 31.2)

Sensor and imaging

Resolution	5.0 Megapixel

Environment and compliance

Operating temperature	-10° ~ +50°

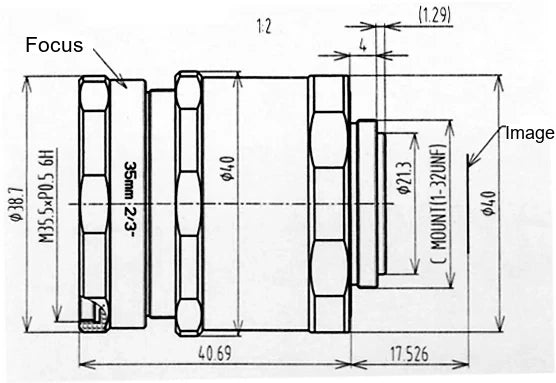

Mechanical

Filter size	M35.5 x P0.5 6H
Size	dia. 40 x 40.69 mm
Mount	C
Weight	105 g
Shipping weight (estimated)	0.25 kg
