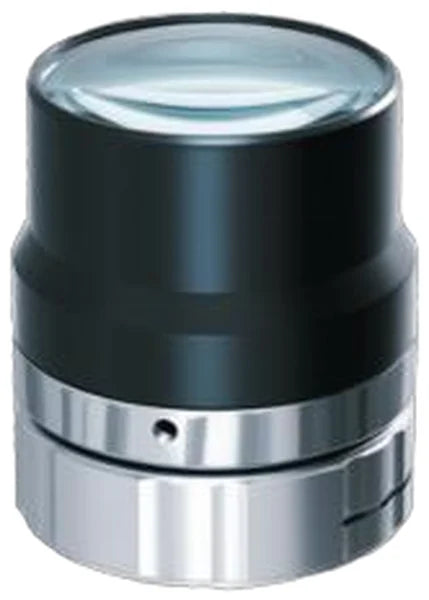

25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens, 0.3x, WD 135 mm (LS-FFL-0436)
  • 25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens, 0.3x, WD 135 mm (LS-FFL-0436)

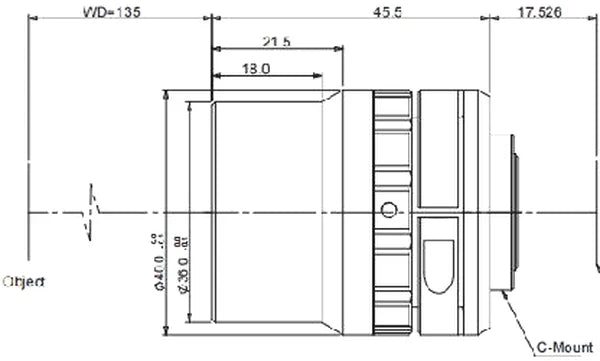

  • LS-FFL-0436 dimensions (mm)

Machine vision lenses

25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens, 0.3x, WD 135 mm (LS-FFL-0436)

Model LS-FFL-0436

  • Focal length25 mm
  • Magnification0.3x
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF6.0 Fixed iris
  • Resolution6.0 Megapixel
$269.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens, 0.3x, WD 135 mm (LS-FFL-0436)LS-FFL-0436

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens. Anti-vibration 0.3x fixed-magnification lens for 1/1.8" 6 MP sensors, 25 mm focal length, 135 mm working distance, F6.0 fixed iris, C-mount. At a glance: magnification 0.3x; focal length 25 mm; format 1/1.8" (Max dia. 9 mm); resolution 6.0 Megapixel; aperture F6.0 Fixed iris.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0436
Format1/1.8" (Max dia. 9 mm)
NA0.02493
W.D.135 mm

Optics

Focal length25 mm
Magnification0.3x
ApertureF6.0 Fixed iris
Field of view (1/1.8" 7.13 x 5.37)23.8 x 17.9 mm
Field of view (1/1.8" 7.43 x 4.9)24.8 x 16.3 mm
Distortion (image side)0.16%
Object-side resolution13.5um
Object-side depth of field5.3mm
MTF30 (image side)148lp/mm

Sensor and imaging

Resolution6.0 Megapixel

Mechanical

Sizedia. 40 x 45.5 mm
MountC
Shipping weight (estimated)0.38 kg

Other models in the Anti-Vibration Machine Vision lenses (LS-FFL-S78) series

See all 25 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0441 8 mm, 2/3", C-mount $239.00 Ships in 2-3 weeks View
LS-FFL-0442 12 mm, 2/3", C-mount $239.00 Ships in 2-3 weeks View
LS-FFL-0431 1/1.8" $249.00 Quote Ships in 2-3 weeks View
LS-FFL-0437 16 mm, 2/3", 8 MP, C-mount $249.00 Ships in 2-3 weeks View
LS-FFL-0443 16 mm, 2/3", C-mount $249.00 Ships in 2-3 weeks View
LS-FFL-0448 16 mm, 2/3", 5 MP, C-mount $249.00 Ships in 2-3 weeks View
LS-FFL-0432 25 mm, 1/1.8", 6 MP, C-mount $269.00 Ships in 2-3 weeks View
LS-FFL-0434 25 mm, 1/1.8", 6 MP, C-mount $269.00 Ships in 2-3 weeks View
LS-FFL-0429 25 mm, 1/1.8", 6 MP, C-mount $269.00 Ships in 2-3 weeks View
LS-FFL-0438 25 mm, 2/3", 8 MP, C-mount $269.00 Ships in 2-3 weeks View
LS-FFL-0444 25 mm, 2/3", C-mount $269.00 Ships in 2-3 weeks View
LS-FFL-0449 25 mm, 2/3", 5 MP, C-mount $269.00 Ships in 2-3 weeks View
LS-FFL-0433 35 mm, 1/1.8", 6 MP, C-mount $289.00 Ships in 2-3 weeks View
LS-FFL-0435 35 mm, 1/1.8", 6 MP, C-mount $289.00 Ships in 2-3 weeks View
LS-FFL-0439 35 mm, 2/3", 8 MP, C-mount $289.00 Ships in 2-3 weeks View
LS-FFL-0445 35 mm, 2/3", C-mount $289.00 Ships in 2-3 weeks View
LS-FFL-0450 35 mm, 2/3", 5 MP, C-mount $289.00 Ships in 2-3 weeks View
LS-FFL-0447 4 mm, 2/3", 5 MP, C-mount $299.00 Ships in 2-3 weeks View
LS-FFL-0428 45 mm, 1/1.8", 6 MP, C-mount $309.00 Ships in 2-3 weeks View
LS-FFL-0430 43 mm, 1/1.8", 6 MP, C-mount $309.00 Ships in 2-3 weeks View
LS-FFL-0440 50 mm, 2/3", 8 MP, C-mount $319.00 Ships in 2-3 weeks View
LS-FFL-0446 50 mm, 2/3", C-mount $319.00 Ships in 2-3 weeks View
LS-FFL-0451 50 mm, 2/3", 5 MP, C-mount $319.00 Ships in 2-3 weeks View
LS-FFL-0427 8 mm, 1.1", 5 MP, C-mount $379.00 Ships in 2-3 weeks View
