Machine vision lenses
4 mm, 2/3", 5 MP, C-mount Anti-Vibration Machine Vision Lens (LS-FFL-0447)
Model LS-FFL-0447
- Focal length4 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8
- Resolution5 MP
$299.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4 mm, 2/3", 5 MP, C-mount Anti-Vibration Machine Vision Lens. 4 mm 2/3" 5 MP anti-vibration lens with F2.8 aperture and TV distortion under 3%, for machine vision in vibrating environments. At a glance: focal length 4 mm; format 2/3" (11 x 8.44 x 7.06 mm); resolution 5 MP; aperture F2.8; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0447 |
|---|---|
| Format | 2/3" (11 x 8.44 x 7.06 mm) |
| Angle of view (2/3", HxVxD, WD 150 mm) | 92.3 x 82.7 x 105.7 deg (+/-5 deg) |
| Angle of view (1/1.8", HxVxD, WD 150 mm) | 82.7 x 66.9 x 94.5 deg (+/-5 deg) |
Optics
| Focal length | 4 mm |
|---|---|
| Aperture | F2.8 |
| TV distortion | <=3% (WD 150 mm) |
| M.O.D. | 0.03 m |
| TTL (far-near) | 58.4-61.1 mm |
| Back focus | 8 mm (min) |
| Relative illumination | 66% |
| Filter thread | M60 x P0.5 |
Sensor and imaging
| Resolution | 5 MP |
|---|
Light
| Wavelength | visible |
|---|
Environment and compliance
| Operating temperature | -10 to +50 C |
|---|---|
| Storage temperature | -20 to +60 C |
Mechanical
| Object dimension (2/3", WD 150 mm, HxVxD) | 344.3 x 290.9 x 436.3 mm |
|---|---|
| Mount | C |

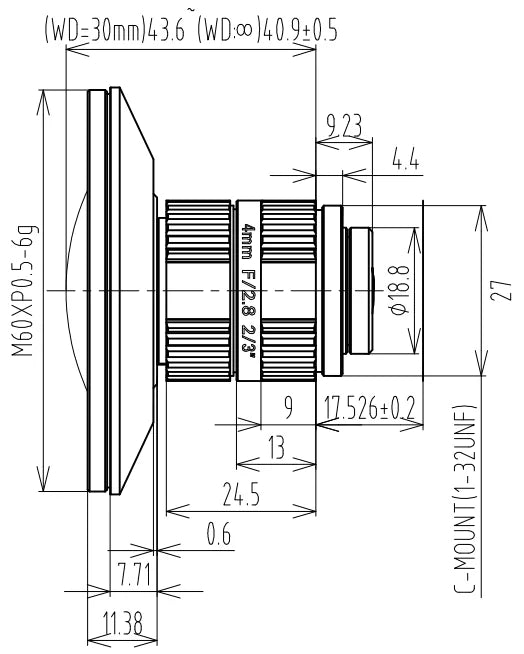

| Size | front dia. 60.8 mm, length 40.9-43.6 mm |
| Shipping weight (estimated) | 0.38 kg |
Photo shows a representative model of this series; see the specifications for this model.
