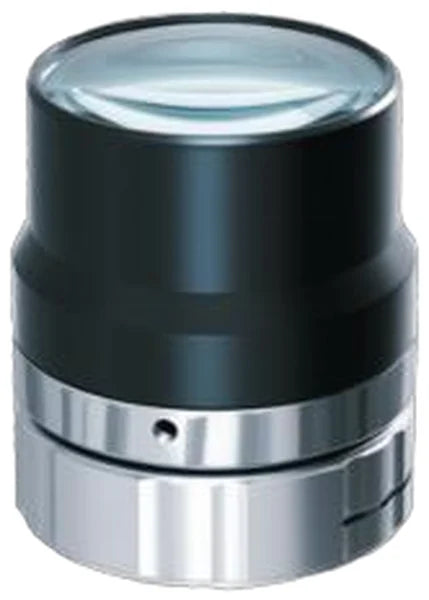

35 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens, 0.2x (LS-FFL-0435)
Model LS-FFL-0435
- Focal length35 mm
- Magnification0.2x
- MountC-mount
- Sensor1/1.8"
- ApertureF5.6 Fixed iris
- Resolution6.0 Megapixel
$289.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens. Anti-vibration 0.2x fixed-magnification lens for 1/1.8" 6 MP sensors, 35 mm focal length, 192 mm working distance, F5.6 fixed iris, C-mount. At a glance: magnification 0.2x; focal length 35 mm; format 1/1.8" (Max dia. 9 mm); resolution 6.0 Megapixel; aperture F5.6 Fixed iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0435 |
|---|---|
| Format | 1/1.8" (Max dia. 9 mm) |
| NA | 0.01777 |
| W.D. | 192 mm |
Optics
| Focal length | 35 mm |
|---|---|
| Magnification | 0.2x |
| Aperture | F5.6 Fixed iris |
| Field of view (1/1.8" 7.13 x 5.37) | 35.7 x 26.9 mm |
| Field of view (1/1.8" 7.43 x 4.9) | 37.2 x 24.5 mm |
| Distortion (image side) | 0.13% |
| Object-side resolution | 18.9um |
| Object-side depth of field | 11.2mm |
| MTF30 (image side) | 166lp/mm |
Sensor and imaging
| Resolution | 6.0 Megapixel |
|---|
Mechanical

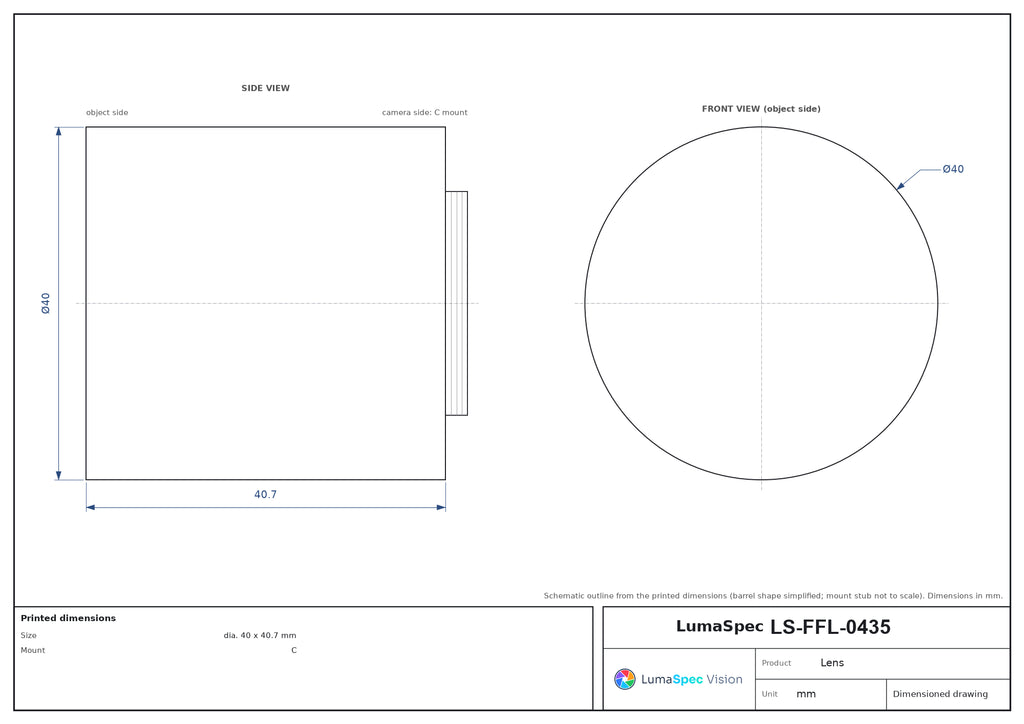

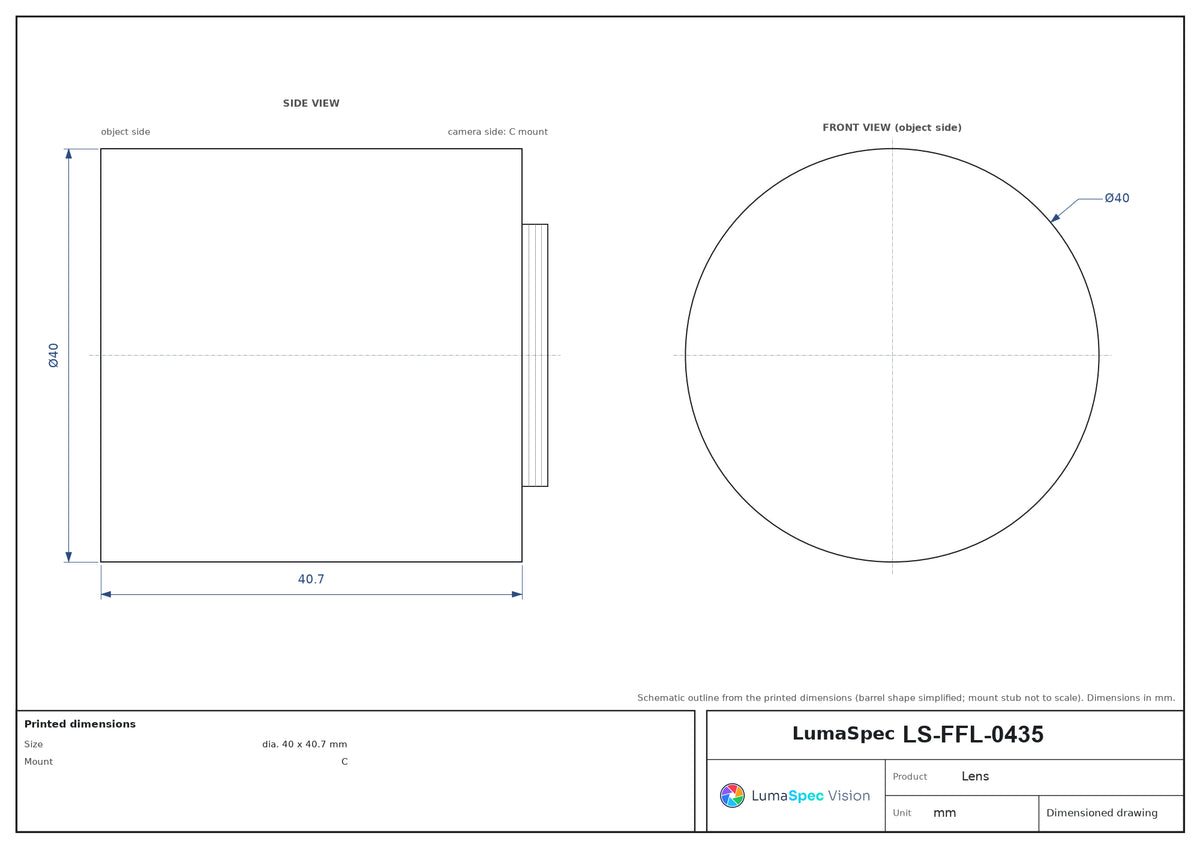

| Size | dia. 40 x 40.7 mm |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.38 kg |
