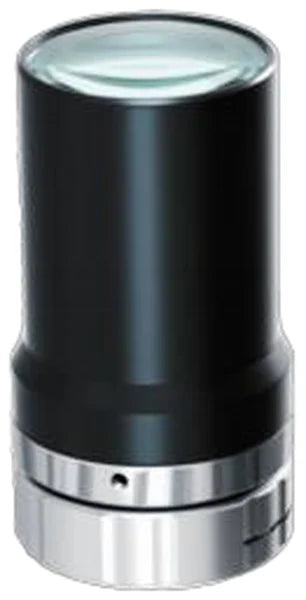

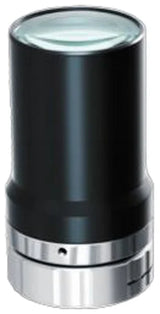

45 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens (LS-FFL-0428)
  • 45 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens (LS-FFL-0428)

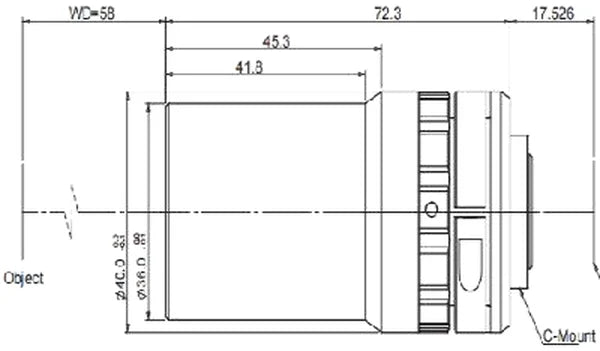

  • LS-FFL-0428 dimensions (mm)

Machine vision lenses

45 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens (LS-FFL-0428)

Model LS-FFL-0428

  • Focal length45 mm
  • Magnification0.1x
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF8.5 Fixed iris
  • Resolution6.0 Megapixel
$309.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

45 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens (LS-FFL-0428)LS-FFL-0428

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

45 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens. Anti-vibration 0.1x fixed-magnification lens for 1/1.8" 6 MP sensors, 45 mm focal length, 58 mm working distance, F8.5 fixed iris, C-mount. At a glance: magnification 0.1x; focal length 45 mm; format 1/1.8" (Max dia. 9 mm); resolution 6.0 Megapixel; aperture F8.5 Fixed iris.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0428
Format1/1.8" (Max dia. 9 mm)
NA0.05841
W.D.58 mm

Optics

Focal length45 mm
Magnification0.1x
ApertureF8.5 Fixed iris
Field of view (1/1.8" 7.13 x 5.37)7.13 x 5.37 mm
Field of view (1/1.8" 7.43 x 4.9)7.43 x 4.9 mm
Distortion (image side)<0.05%
Object-side resolution5.7um
Object-side depth of field0.7mm
MTF30 (image side)78lp/mm

Sensor and imaging

Resolution6.0 Megapixel

Mechanical

Sizedia. 36 x 72.3 mm
MountC
Shipping weight (estimated)0.38 kg
