Machine vision lenses

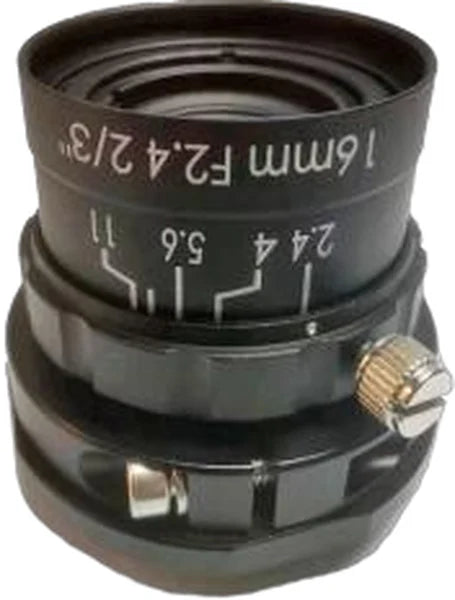

16 mm, 2/3", 8 MP, C-mount Anti-Vibration Machine Vision Lens (LS-FFL-0437)
Model LS-FFL-0437
- Focal length16 mm
- Magnification0.011x ~ 0.101x
- MountC-mount
- Sensor2/3"
- ApertureF2.4 Manual iris
- Resolution8.0 Megapixel (2.74 μm)
$249.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm, 2/3", 8 MP, C-mount Anti-Vibration Machine Vision Lens. 16 mm 2/3" 8 MP anti-vibration C-mount lens, F2.4 manual iris, magnification 0.011x ~ 0.101x. At a glance: magnification 0.011x ~ 0.101x; focal length 16 mm; format 2/3" (dia. 11 mm); resolution 8.0 Megapixel (2.74 μm); aperture F2.4 Manual iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0437 |
|---|---|
| Format | 2/3" (dia. 11 mm) |
| W.D. | 150 mm |
| Character | -20℃~+60℃ focusing |
Optics
| Focal length | 16 mm |
|---|---|
| Magnification | 0.011x ~ 0.101x |
| Aperture | F2.4 Manual iris |
| Field of view (2/3") | 76.9 x 76.7 mm (H x V @150mm) |
| Field of view (1/1.8") | 66.5 x 55.5 mm (H x V @150mm) |
| Filter thread | M27 x 0.5-6H |
| Distortion | -0.51% @300mm WD |
Sensor and imaging
| Resolution | 8.0 Megapixel (2.74 μm) |
|---|
Mechanical
| Size | dia. 35 x 29.6 mm |
|---|---|
| Mount | C |
| Weight | 72 g |
| Shipping weight (estimated) | 0.20 kg |
Other models in the Anti-Vibration Machine Vision lenses (LS-FFL-S78) series
See all 25 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0441 | 8 mm, 2/3", C-mount | $239.00 | Ships in 2-3 weeks | View |
| LS-FFL-0442 | 12 mm, 2/3", C-mount | $239.00 | Ships in 2-3 weeks | View |
| LS-FFL-0431 | 1/1.8" | $249.00 Quote | Ships in 2-3 weeks | View |
| LS-FFL-0443 | 16 mm, 2/3", C-mount | $249.00 | Ships in 2-3 weeks | View |
| LS-FFL-0448 | 16 mm, 2/3", 5 MP, C-mount | $249.00 | Ships in 2-3 weeks | View |
| LS-FFL-0432 | 25 mm, 1/1.8", 6 MP, C-mount | $269.00 | Ships in 2-3 weeks | View |
| LS-FFL-0434 | 25 mm, 1/1.8", 6 MP, C-mount | $269.00 | Ships in 2-3 weeks | View |
| LS-FFL-0436 | 25 mm, 1/1.8", 6 MP, C-mount | $269.00 | Ships in 2-3 weeks | View |
| LS-FFL-0429 | 25 mm, 1/1.8", 6 MP, C-mount | $269.00 | Ships in 2-3 weeks | View |
| LS-FFL-0438 | 25 mm, 2/3", 8 MP, C-mount | $269.00 | Ships in 2-3 weeks | View |
| LS-FFL-0444 | 25 mm, 2/3", C-mount | $269.00 | Ships in 2-3 weeks | View |
| LS-FFL-0449 | 25 mm, 2/3", 5 MP, C-mount | $269.00 | Ships in 2-3 weeks | View |
| LS-FFL-0433 | 35 mm, 1/1.8", 6 MP, C-mount | $289.00 | Ships in 2-3 weeks | View |
| LS-FFL-0435 | 35 mm, 1/1.8", 6 MP, C-mount | $289.00 | Ships in 2-3 weeks | View |
| LS-FFL-0439 | 35 mm, 2/3", 8 MP, C-mount | $289.00 | Ships in 2-3 weeks | View |
| LS-FFL-0445 | 35 mm, 2/3", C-mount | $289.00 | Ships in 2-3 weeks | View |
| LS-FFL-0450 | 35 mm, 2/3", 5 MP, C-mount | $289.00 | Ships in 2-3 weeks | View |
| LS-FFL-0447 | 4 mm, 2/3", 5 MP, C-mount | $299.00 | Ships in 2-3 weeks | View |
| LS-FFL-0428 | 45 mm, 1/1.8", 6 MP, C-mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-0430 | 43 mm, 1/1.8", 6 MP, C-mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-0440 | 50 mm, 2/3", 8 MP, C-mount | $319.00 | Ships in 2-3 weeks | View |
| LS-FFL-0446 | 50 mm, 2/3", C-mount | $319.00 | Ships in 2-3 weeks | View |
| LS-FFL-0451 | 50 mm, 2/3", 5 MP, C-mount | $319.00 | Ships in 2-3 weeks | View |
| LS-FFL-0427 | 8 mm, 1.1", 5 MP, C-mount | $379.00 | Ships in 2-3 weeks | View |
