16 mm, 1.1", 20 MP, C-mount machine vision lens, F2.8-22, <0.3% distortion
LS-FFL-0567
- Focal length 16 mm
- Mount C-mount
- Sensor 1.1"
$679.00
Ships in 2-3 weeks
Lenses
C-mount machine vision lenses
Choose the lens beyond its mountChoose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.
Products
12 mm, 1.1", 20 MP, C-mount machine vision lens, F2.8-22
LS-FFL-0566
- Focal length 12 mm
- Mount C-mount
- Sensor 1.1"
$669.00
Ships in 2-3 weeks
16 mm, 1.1", 20 MP, C-mount machine vision lens, F2.8 Manual iris
LS-FFL-0547
- Focal length 16 mm
- Mount C-mount
- Sensor 1.1"
$679.00
Ships in 2-3 weeks

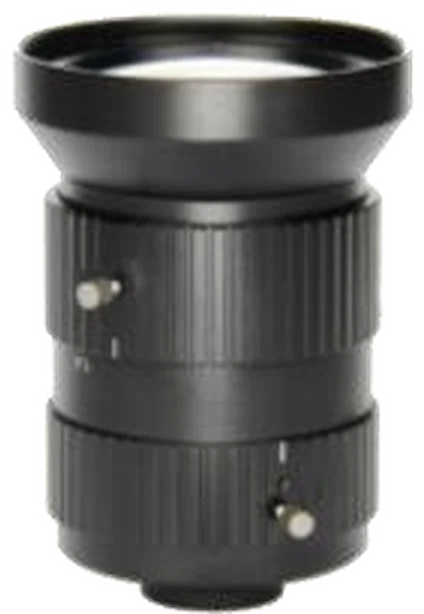

16 mm, 1.1", 25 MP, C-mount machine vision lens
LS-FFL-0546
- Focal length 16 mm
- Magnification 0.003X~0.132X
- Mount C-mount
$679.00
Ships in 2-3 weeks
16 mm, 1.1", 20 MP, C-mount machine vision lens
LS-FFL-0545
- Focal length 16 mm
- Mount C-mount
- Sensor 1.1"
$679.00
Ships in 2-3 weeks
16 mm, 1.1", 20 MP, C-mount machine vision lens, 1.1" (pixel 2.74 µm)
LS-FFL-0544
- Focal length 16 mm
- Mount C-mount
- Sensor 1.1"
$679.00
Ships in 2-3 weeks
12 mm, 1.1", 20 MP, C-mount machine vision lens, F2.8 Manual iris
LS-FFL-0543
- Focal length 12 mm
- Mount C-mount
- Sensor 1.1"
$669.00
Ships in 2-3 weeks
12 mm, 1.1", 25 MP, C-mount machine vision lens
LS-FFL-0542
- Focal length 12 mm
- Magnification 0.0025X~0.1055X
- Mount C-mount
$669.00
Ships in 2-3 weeks
12 mm, 1.1", 20 MP, C-mount machine vision lens
LS-FFL-0541
- Focal length 12 mm
- Magnification 0.002x ~ 0.103x
- Mount C-mount
$669.00
Ships in 2-3 weeks
12 mm, 1.1", 20 MP, C-mount machine vision lens, 1.1" (pixel 2.74 µm)
LS-FFL-0540
- Focal length 12 mm
- Mount C-mount
- Sensor 1.1"
$669.00
Ships in 2-3 weeks
12 mm, 1.1", 20 MP, C-mount machine vision lens, F2.2 Manual Iris
LS-FFL-0539
- Focal length 12 mm
- Mount C-mount
- Sensor 1.1"
$669.00
Ships in 2-3 weeks

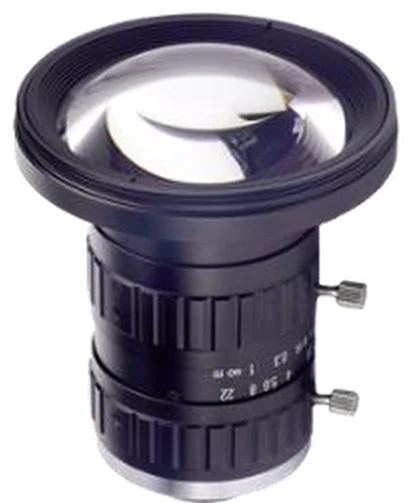

8 mm, 1.1", 25 MP, C-mount machine vision lens
LS-FFL-0537
- Focal length 8 mm
- Magnification 0.0016x ~ 0.0696x (5000-100 mm WD)
- Mount C-mount
$669.00
Ships in 2-3 weeks
8 mm, 1.1", 20 MP, C-mount machine vision lens
LS-FFL-0536
- Focal length 8 mm
- Magnification 0.0017x-0.066x (5000-100 mm WD)
- Mount C-mount
$669.00
Ships in 2-3 weeks
50 mm, 1.1", 10 MP machine vision lens
LS-FFL-0559
- Focal length 50 mm
- Mount C-mount
- Sensor 1.1"
$499.00
Ships in 2-3 weeks
50 mm, 1.1", 10 MP, C-mount machine vision lens
LS-FFL-0558
- Focal length 50 mm
- Mount C-mount
- Sensor 1.1"
$499.00
Ships in 2-3 weeks
35 mm, 1.1", 10 MP, C-mount machine vision lens
LS-FFL-0553
- Focal length 35 mm
- Mount C-mount
- Sensor 1.1"
$479.00
Ships in 2-3 weeks
25 mm, 1.1", 10 MP, C-mount machine vision lens
LS-FFL-0548
- Focal length 25 mm
- Mount C-mount
- Sensor 1.1"
$459.00
Ships in 2-3 weeks
12 mm, 1.1", 10 MP, C-mount machine vision lens
LS-FFL-0538
- Focal length 12 mm
- Mount C-mount
- Sensor 1.1"
$429.00
Ships in 2-3 weeks
8 mm, 1.1", 12 MP, C-mount machine vision lens
LS-FFL-0535
- Focal length 8 mm
- Magnification 0.01x ~ 0.064x
- Mount C-mount
$429.00
Ships in 2-3 weeks
6 mm, 1.1", 12 MP, C-mount machine vision lens
LS-FFL-0534
- Focal length 6.0 mm
- Magnification 0.007x ~ 0.049x
- Mount C-mount
$419.00
Ships in 2-3 weeks
75 mm, 1/1.8", 5 MP, C-mount machine vision lens
LS-FFL-0533
- Focal length 75 mm
- Mount C-mount
- Sensor 1/1.8"
$309.00
Ships in 2-3 weeks
50 mm, 1/1.8", 5 MP, C-mount machine vision lens
LS-FFL-0532
- Focal length 50 mm
- Mount C-mount
- Sensor 1/1.8"
$249.00
Ships in 2-3 weeks
35 mm, 1/1.8", 5 MP, C-mount machine vision lens
LS-FFL-0530
- Focal length 35 mm
- Mount C-mount
- Sensor 1/1.8"
$229.00
Ships in 2-3 weeks
25 mm, 1/1.8", 5 MP, C-mount machine vision lens
LS-FFL-0529
- Focal length 25 mm
- Mount C-mount
- Sensor 1/1.8"
$199.00
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-FFL-056716 mm, 1.1", 20 MP, C-mount machine vision lens, F2.8-22, <0.3% distortion
| 16 mm | C-mount | 1.1" | F2.8-22 | 20 Megapixel | - | $679.00 | Ships in 2-3 weeks | |
|
LS-FFL-056612 mm, 1.1", 20 MP, C-mount machine vision lens, F2.8-22
| 12 mm | C-mount | 1.1" | F2.8-22 | 20 Megapixel | - | $669.00 | Ships in 2-3 weeks | |
 LS-FFL-054716 mm, 1.1", 20 MP, C-mount machine vision lens, F2.8 Manual iris
| 16 mm | C-mount | 1.1" | F2.8 Manual iris | 20 Megapixel | - | $679.00 | Ships in 2-3 weeks | |
 LS-FFL-054616 mm, 1.1", 25 MP, C-mount machine vision lens
| 16 mm | C-mount | 1.1" | F2.8 | 25 Megapixel | 0.003X~0.132X | $679.00 | Ships in 2-3 weeks | |
 LS-FFL-054516 mm, 1.1", 20 MP, C-mount machine vision lens
| 16 mm | C-mount | 1.1" | F2.8 manual iris | 20 MP | - | $679.00 | Ships in 2-3 weeks | |
 LS-FFL-054416 mm, 1.1", 20 MP, C-mount machine vision lens, 1.1" (pixel 2.74 µm)
| 16 mm | C-mount | 1.1" | F2.4-16 Manual iris | 20 Megapixel | - | $679.00 | Ships in 2-3 weeks | |
|
LS-FFL-054312 mm, 1.1", 20 MP, C-mount machine vision lens, F2.8 Manual iris
| 12 mm | C-mount | 1.1" | F2.8 Manual iris | 20 Megapixel | - | $669.00 | Ships in 2-3 weeks | |
 LS-FFL-054212 mm, 1.1", 25 MP, C-mount machine vision lens
| 12 mm | C-mount | 1.1" | F2.8 | 25 Megapixel | 0.0025X~0.1055X | $669.00 | Ships in 2-3 weeks | |
 LS-FFL-054112 mm, 1.1", 20 MP, C-mount machine vision lens
| 12 mm | C-mount | 1.1" | F2.8 manual iris | 20 MP | 0.002x ~ 0.103x | $669.00 | Ships in 2-3 weeks | |
 LS-FFL-054012 mm, 1.1", 20 MP, C-mount machine vision lens, 1.1" (pixel 2.74 µm)
| 12 mm | C-mount | 1.1" | F2.4-16 Manual iris | 20 Megapixel | - | $669.00 | Ships in 2-3 weeks | |
 LS-FFL-053912 mm, 1.1", 20 MP, C-mount machine vision lens, F2.2 Manual Iris
| 12 mm | C-mount | 1.1" | F2.2 Manual Iris | 20 Megapixel | - | $669.00 | Ships in 2-3 weeks | |
 LS-FFL-05378 mm, 1.1", 25 MP, C-mount machine vision lens
| 8 mm | C-mount | 1.1" | F2.8 Manual iris | 25 Megapixel | 0.0016x ~ 0.0696x (5000-100 mm WD) | $669.00 | Ships in 2-3 weeks | |
 LS-FFL-05368 mm, 1.1", 20 MP, C-mount machine vision lens
| 8 mm | C-mount | 1.1" | F2.8-16 | 20 MP | 0.0017x-0.066x (5000-100 mm WD) | $669.00 | Ships in 2-3 weeks | |
 LS-FFL-055950 mm, 1.1", 10 MP machine vision lens
| 50 mm | C-mount | 1.1" | - | - | - | $499.00 | Ships in 2-3 weeks | |
 LS-FFL-055850 mm, 1.1", 10 MP, C-mount machine vision lens
| 50 mm | C-mount | 1.1" | F1.6 Manual Iris | 10 MP | - | $499.00 | Ships in 2-3 weeks | |
 LS-FFL-055335 mm, 1.1", 10 MP, C-mount machine vision lens
| 35 mm | C-mount | 1.1" | F1.4 Manual Iris | 10 MP | - | $479.00 | Ships in 2-3 weeks | |
 LS-FFL-054825 mm, 1.1", 10 MP, C-mount machine vision lens
| 25 mm | C-mount | 1.1" | F1.4 Manual Iris | 10 MP | - | $459.00 | Ships in 2-3 weeks | |
|
LS-FFL-053812 mm, 1.1", 10 MP, C-mount machine vision lens
| 12 mm | C-mount | 1.1" | F1.4 Manual Iris | 10 MP | - | $429.00 | Ships in 2-3 weeks | |
 LS-FFL-05358 mm, 1.1", 12 MP, C-mount machine vision lens
| 8 mm | C-mount | 1.1" | F1.4 Manual Iris | 12 MP | 0.01x ~ 0.064x | $429.00 | Ships in 2-3 weeks | |
 LS-FFL-05346 mm, 1.1", 12 MP, C-mount machine vision lens
| 6.0 mm | C-mount | 1.1" | F1.8 Manual Iris | 12 MP | 0.007x ~ 0.049x | $419.00 | Ships in 2-3 weeks | |
 LS-FFL-053375 mm, 1/1.8", 5 MP, C-mount machine vision lens
| 75 mm | C-mount | 1/1.8" | F2.8 | 5 MP | - | $309.00 | Ships in 2-3 weeks | |
|
LS-FFL-053250 mm, 1/1.8", 5 MP, C-mount machine vision lens
| 50 mm | C-mount | 1/1.8" | F2.8 | 5 MP | - | $249.00 | Ships in 2-3 weeks | |
 LS-FFL-053035 mm, 1/1.8", 5 MP, C-mount machine vision lens
| 35 mm | C-mount | 1/1.8" | F2.0 | 5 MP | - | $229.00 | Ships in 2-3 weeks | |
 LS-FFL-052925 mm, 1/1.8", 5 MP, C-mount machine vision lens
| 25 mm | C-mount | 1/1.8" | F2.0 | 5 MP | - | $199.00 | Ships in 2-3 weeks |
Choose the lens beyond its mount
A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.
- Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
- Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
- Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.
