Machine vision lenses
75 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens (LS-FFL-0533)
Model LS-FFL-0533
- Focal length75 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8
- Resolution5MP
$309.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
75 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens. Low-distortion 5 megapixel 1/1.8" FA lenses for machine vision in 4, 6, 8, 12, 16, 25, 35, 50 and 75 mm focal lengths. The 1/1.8" format also covers 1/2" and 1/3" cameras, and the compact size fits most applications. At a glance: focal length 75 mm; format 1/1.8"; resolution 5MP; aperture F2.8; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0533 |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8", HxVxD) | 5.4 x 4 x 5.84 deg |
| Angle of view (1/2.5", HxVxD) | 4.4 x 3.3 x 5.4 deg |
| Angle of view (1/3", HxVxD) | 3.66 x 2.75 x 4.6 deg |
| Flange back | 17.526 mm (in air) |
Optics
| Focal length | 75 mm |
|---|---|
| Aperture | F2.8 |
| Distortion | <0.05% |
| M.O.D. | 0.5 m |
| Filter thread | M30.5 x 0.5 |
| F-number range | F2.8-22 |
| Back focus | 42.2-55.5 mm (in air) |
Sensor and imaging
| Resolution | 5MP |
|---|
Environment and compliance
| Operating temperature | -10 to +50 °C |
|---|---|
| Storage temperature | -20 to +60 °C |
Mechanical
| Mount | C |
|---|---|
| Optical total length | 89.4 mm |

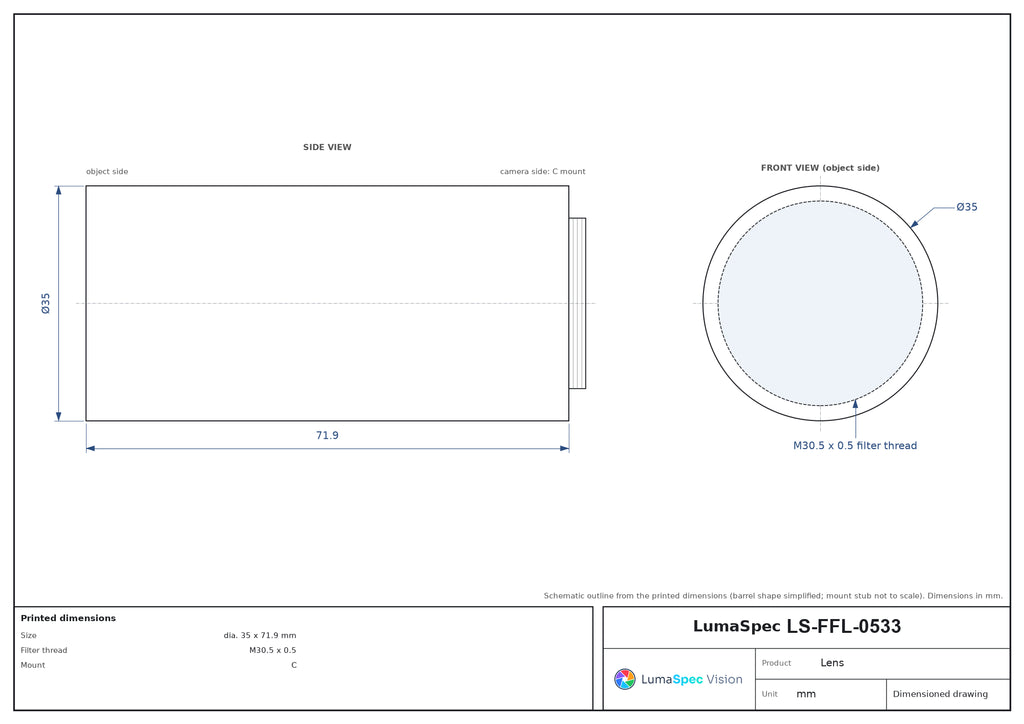

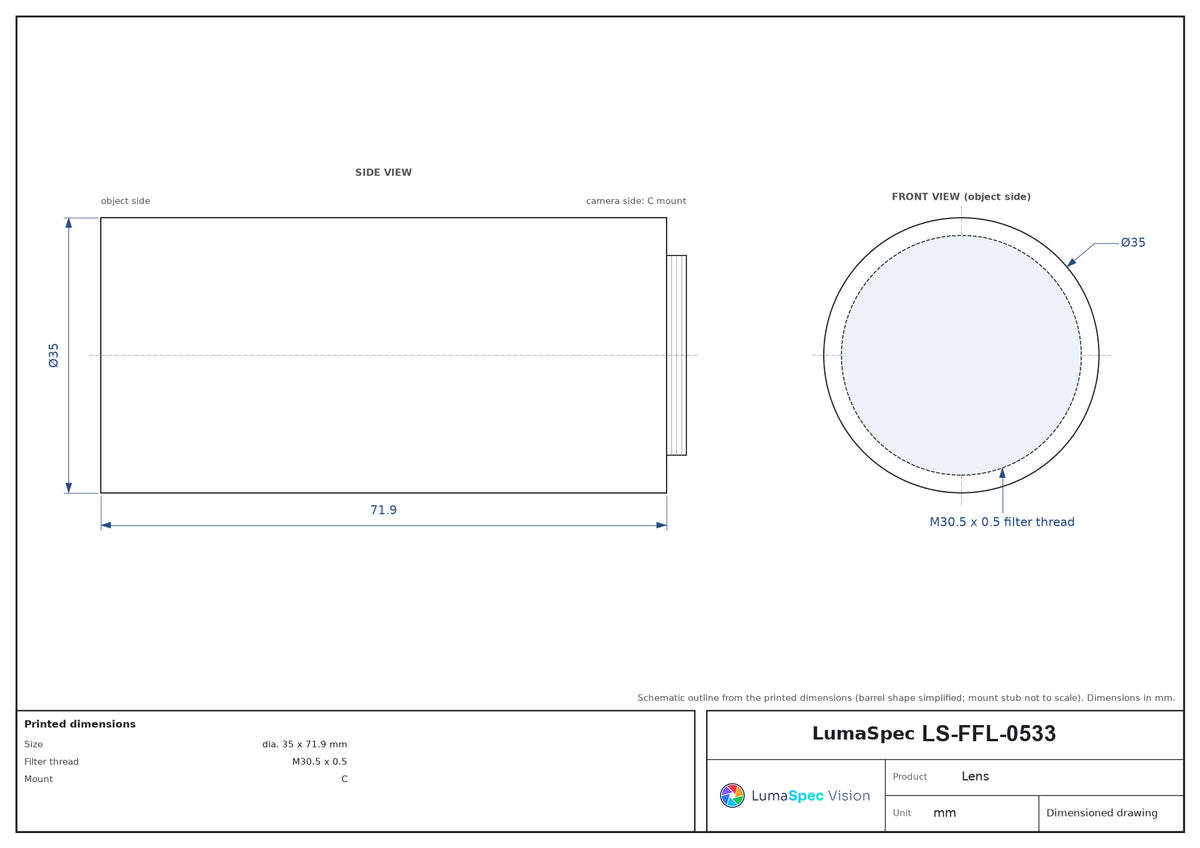

| Size | dia. 35 x 71.9 mm |
| Shipping weight (estimated) | 0.31 kg |

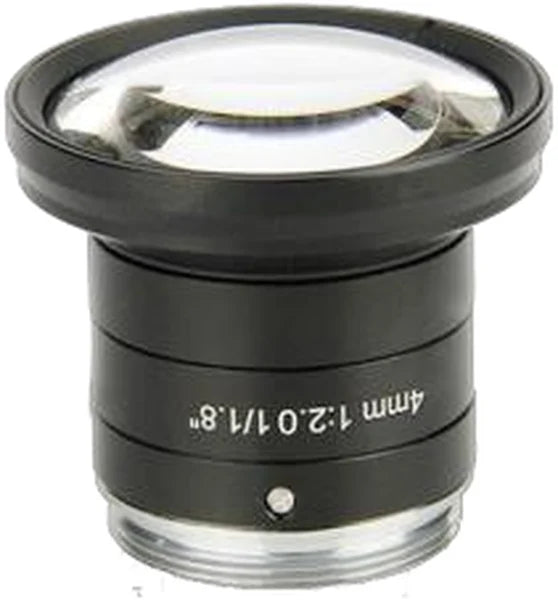

Photo shows a representative model of this series; see the specifications for this model.
