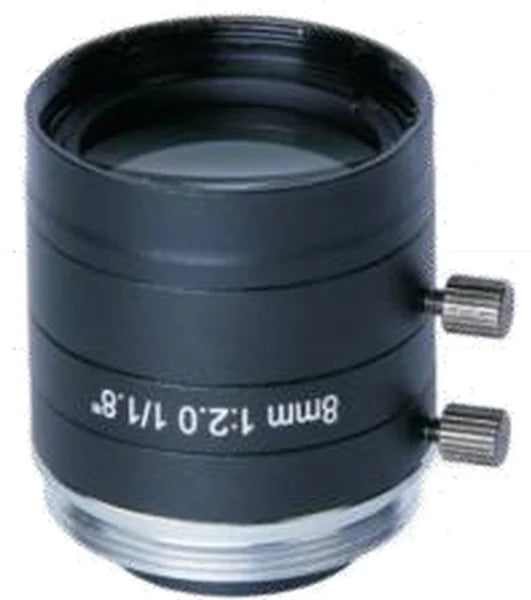

8 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0525)
  • 8 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0525)

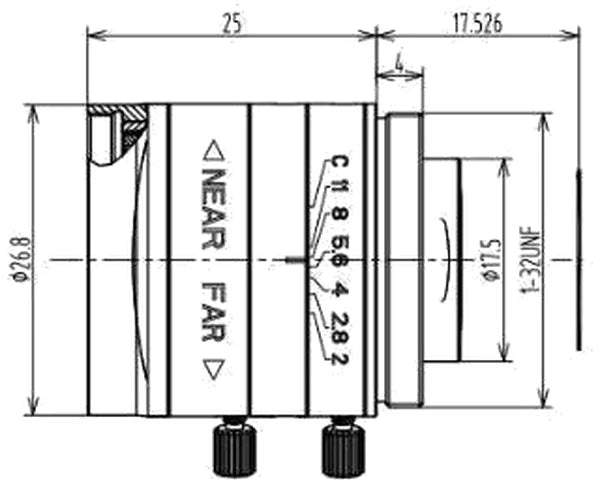

  • LS-FFL-0525 dimensions (mm)

Machine vision lenses

8 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0525)

Model LS-FFL-0525

  • Focal length8 mm
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF2.2 Manual iris
  • Resolution5.0 Megapixel
$169.00

Ships in 2-3 weeks

0.18 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0525)LS-FFL-0525

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens. At a glance: focal length 8 mm; format 1/1.8"; resolution 5.0 Megapixel; aperture F2.2 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0525
Format1/1.8"
Angle of view (1/1.8")52 x 42 x 38.2 deg

Optics

Focal length8 mm
ApertureF2.2 Manual iris
M.O.D.0.1 m
Distortion<0.1%
Filter threadM25.5 x P0.5

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

Sizedia. 26.8 x 25 mm
MountC
Weight55 g
Shipping weight (estimated)0.18 kg

Other models in the 1/1.8" machine vision lenses (LS-FFL-S83) series

See all 13 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0522 4 mm, 1/1.8", 5 MP, C-mount $159.00 Ships in 2-3 weeks View
LS-FFL-0521 3.5 mm, 1/1.8", 3 MP, C-mount $159.00 Ships in 2-3 weeks View
LS-FFL-0523 6 mm, 1/1.8", 5 MP, C-mount $169.00 Ships in 2-3 weeks View
LS-FFL-0524 8 mm, 1/1.8", 5 MP, C-mount $169.00 Ships in 2-3 weeks View
LS-FFL-0526 12 mm, 1/1.8", 5 MP, C-mount $179.00 Ships in 2-3 weeks View
LS-FFL-0527 12 mm, 1/1.8", 5 MP, C-mount $179.00 Ships in 2-3 weeks View
LS-FFL-0528 16 mm, 1/1.8", 5 MP, C-mount $189.00 Ships in 2-3 weeks View
LS-FFL-0529 25 mm, 1/1.8", 5 MP, C-mount $199.00 Ships in 2-3 weeks View
LS-FFL-0530 35 mm, 1/1.8", 5 MP, C-mount $229.00 Ships in 2-3 weeks View
LS-FFL-0531 35 mm, 1/1.8", 6 MP, C-mount $229.00 Ships in 2-3 weeks View
LS-FFL-0532 50 mm, 1/1.8", 5 MP, C-mount $249.00 Ships in 2-3 weeks View
LS-FFL-0533 75 mm, 1/1.8", 5 MP, C-mount $309.00 Ships in 2-3 weeks View
