Machine vision lenses

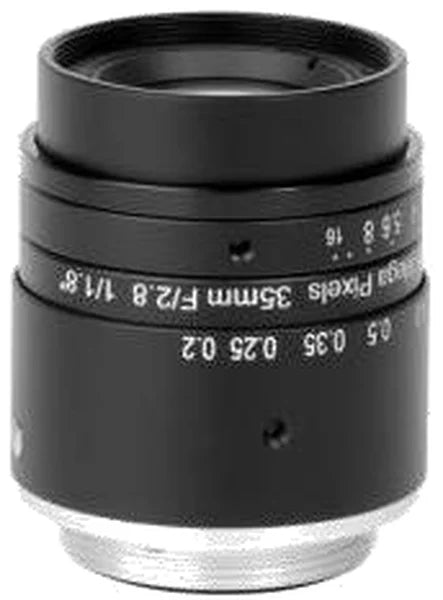

35 mm, 1/1.8", 6 MP, C-mount Machine Vision Lens (LS-FFL-0531)
Model LS-FFL-0531
- Focal length35 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8~16 Manual iris
- Resolution6.0 Megapixel (2.4 μm pixel size)
$229.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm, 1/1.8", 6 MP, C-mount Machine Vision Lens. SP-series 35 mm, 1/1.8" 6 MP C-mount machine vision lens, F2.8-16 manual iris, distortion -0.03%. At a glance: focal length 35 mm; format 1/1.8" (dia. 9.5 mm); resolution 6.0 Megapixel (2.4 μm pixel size); aperture F2.8~16 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0531 |
|---|---|
| Format | 1/1.8" (dia. 9.5 mm) |
| Angle of view (1/1.8") | 15 x 12 x 8 deg |
| Transmission | AT486~656nm T≥85% |
| CRA | 5.5° |
| Notes | 7G Element |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F2.8~16 Manual iris |
| M.O.D. | 0.2 m |
| Distortion (TV) | -0.03% |
| Filter thread | M27 x P0.5 |
| Relative illumination | 80% |
| Total track length (TTL) | 53.2 mm |
Sensor and imaging
| Resolution | 6.0 Megapixel (2.4 μm pixel size) |
|---|

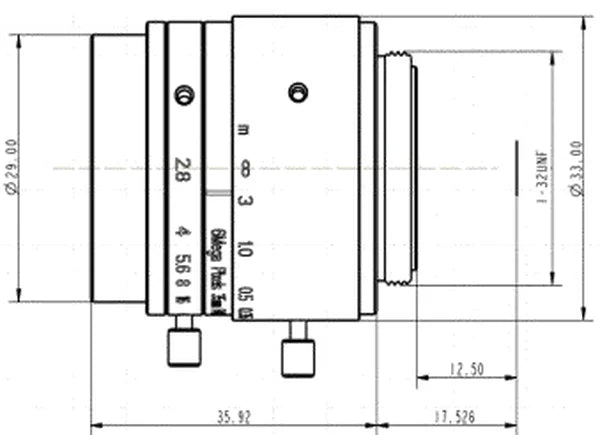

Mechanical
| Size | dia. 33 x 29.4 mm |
|---|---|
| Mount | C |
| Weight | 70 g |
| Shipping weight (estimated) | 0.20 kg |
Other models in the 1/1.8" machine vision lenses (LS-FFL-S83) series
See all 13 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0522 | 4 mm, 1/1.8", 5 MP, C-mount | $159.00 | Ships in 2-3 weeks | View |
| LS-FFL-0521 | 3.5 mm, 1/1.8", 3 MP, C-mount | $159.00 | Ships in 2-3 weeks | View |
| LS-FFL-0523 | 6 mm, 1/1.8", 5 MP, C-mount | $169.00 | Ships in 2-3 weeks | View |
| LS-FFL-0524 | 8 mm, 1/1.8", 5 MP, C-mount | $169.00 | Ships in 2-3 weeks | View |
| LS-FFL-0525 | 8 mm, 1/1.8", 5 MP, C-mount | $169.00 | Ships in 2-3 weeks | View |
| LS-FFL-0526 | 12 mm, 1/1.8", 5 MP, C-mount | $179.00 | Ships in 2-3 weeks | View |
| LS-FFL-0527 | 12 mm, 1/1.8", 5 MP, C-mount | $179.00 | Ships in 2-3 weeks | View |
| LS-FFL-0528 | 16 mm, 1/1.8", 5 MP, C-mount | $189.00 | Ships in 2-3 weeks | View |
| LS-FFL-0529 | 25 mm, 1/1.8", 5 MP, C-mount | $199.00 | Ships in 2-3 weeks | View |
| LS-FFL-0530 | 35 mm, 1/1.8", 5 MP, C-mount | $229.00 | Ships in 2-3 weeks | View |
| LS-FFL-0532 | 50 mm, 1/1.8", 5 MP, C-mount | $249.00 | Ships in 2-3 weeks | View |
| LS-FFL-0533 | 75 mm, 1/1.8", 5 MP, C-mount | $309.00 | Ships in 2-3 weeks | View |
