Machine vision lenses

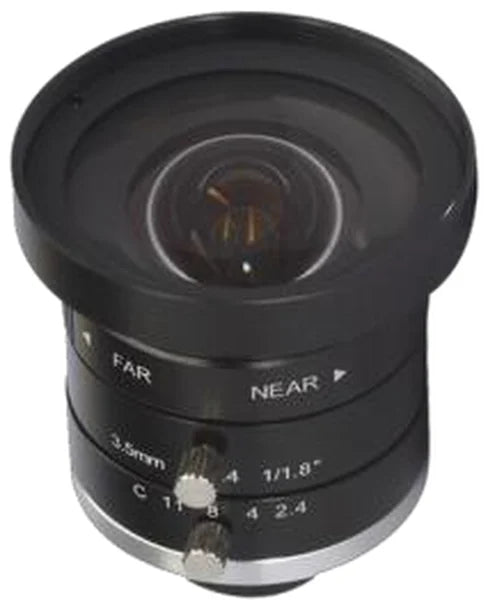

3.5 mm, 1/1.8", 3 MP, C-mount Machine Vision Lens (LS-FFL-0521)
Model LS-FFL-0521
- Focal length3.5 mm
- Magnification-0.032x
- MountC-mount
- Sensor1/1.8"
- ApertureF2.4 Manual iris
- Resolution3 Megapixel
$159.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.5 mm, 1/1.8", 3 MP, C-mount Machine Vision Lens. Compact 3.5 mm, 3 megapixel wide-angle C-mount machine vision lens for 1/1.8" sensors (also 1/2", 1/3"), distortion -1.23%. At a glance: magnification -0.032x; focal length 3.5 mm; format 1/1.8" (dia. 9 mm); resolution 3 Megapixel; aperture F2.4 Manual iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0521 |
|---|---|
| Format | 1/1.8" (dia. 9 mm) |
| Angle of view (1/1.8", DxHxV) | 105 x 94.3 x 78 deg (425 x 351 x 261mm) |
| Angle of view (1/2", DxHxV) | 100 x 88 x 71 deg (386 x 312 x 231mm) |
| Angle of view (1/3", DxHxV) | 84.2 x 71.1 x 55.6 deg (292 x 231 x 170mm) |
Optics
| Focal length | 3.5 mm |
|---|---|
| Aperture | F2.4 Manual iris |
| M.O.D. | 0.15 m |
| Distortion | <-1.23% @y=4.5 mm |
| Back focal length | 13.29 mm |
| Filter thread | M40.5 x 0.5 |
| Magnification | -0.032x |
Sensor and imaging
| Resolution | 3 Megapixel |
|---|
Mechanical
| Size | dia. 42 x 37.7 mm |
|---|---|
| Mount | C |
| Optical total length | 55.2 mm |
| Shipping weight (estimated) | 0.31 kg |
