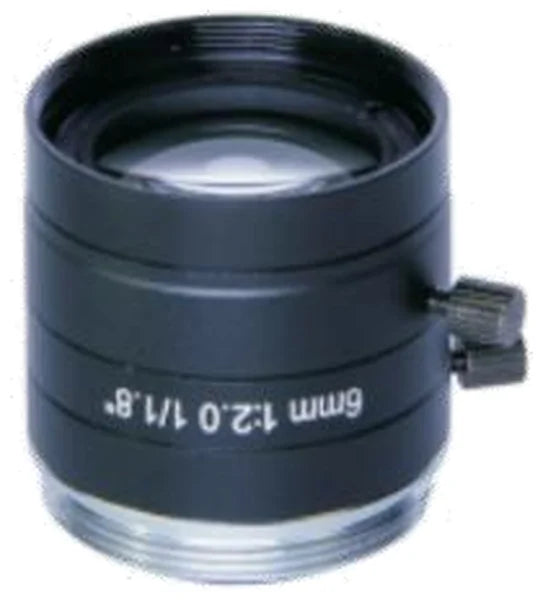

6 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens (LS-FFL-0523)
Model LS-FFL-0523
- Focal length6 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.0
- Resolution5MP
$169.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.17 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens. Low-distortion 5 megapixel 1/1.8" FA lenses for machine vision in 4, 6, 8, 12, 16, 25, 35, 50 and 75 mm focal lengths. The 1/1.8" format also covers 1/2" and 1/3" cameras, and the compact size fits most applications. At a glance: focal length 6 mm; format 1/1.8"; resolution 5MP; aperture F2.0; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0523 |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8", HxVxD) | 59.6 x 46 x 69.8 deg |
| Angle of view (1/2.5", HxVxD) | 48.7 x 36.5 x 60.9 deg |
| Angle of view (1/3", HxVxD) | 41.9 x 31.4 x 52.4 deg |
| Flange back | 17.526 mm (in air) |
| Angle of view (1/1.8") | 59.6 x 46 x 49.8 deg |
Optics
| Focal length | 6 mm |
|---|---|
| Aperture | F2.0 |
| Distortion | <0.1% |
| M.O.D. | 0.1 m |
| Filter thread | M25.5 x 0.5 |
| Back focus | 11.6 mm (in air) |
Sensor and imaging
| Resolution | 5MP |
|---|
Environment and compliance
| Operating temperature | -10 to +50 °C |
|---|---|
| Storage temperature | -20 to +60 °C |

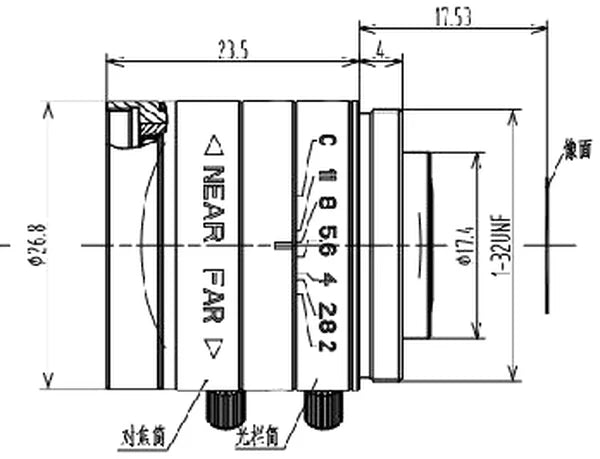

Mechanical
| Mount | C |
|---|---|
| Size | dia. 26.8 x 27.5 mm |
| Weight | 50 g |
| Optical total length | 41.3 mm |
| Shipping weight (estimated) | 0.17 kg |
