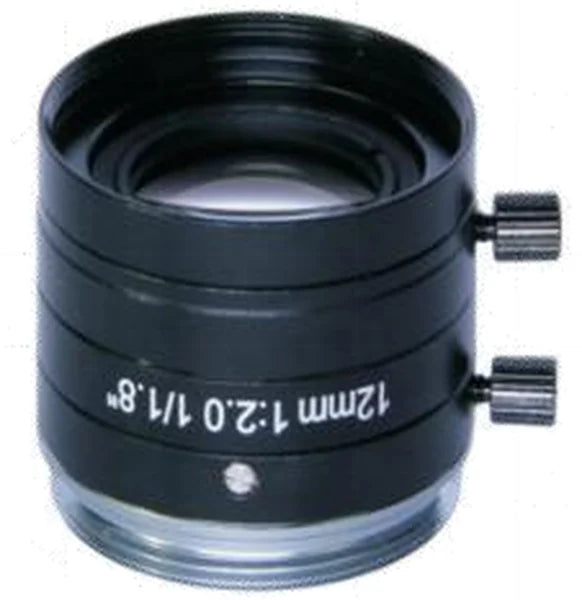

12 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0527)
  • 12 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0527)

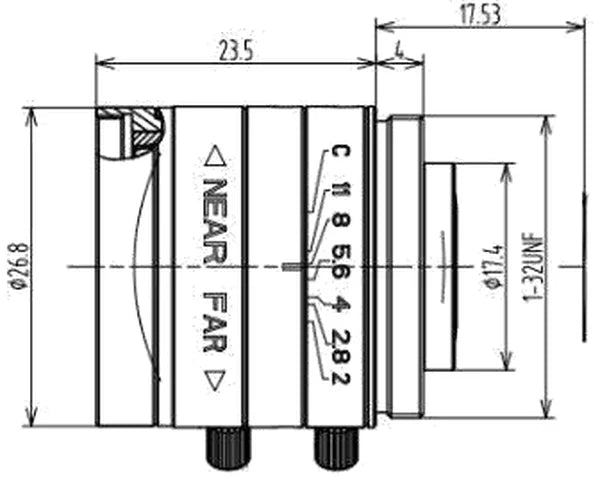

  • LS-FFL-0527 dimensions (mm)

Machine vision lenses

12 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0527)

Model LS-FFL-0527

  • Focal length12 mm
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF2.2 Manual iris
  • Resolution5.0 Megapixel
$179.00

Ships in 2-3 weeks

0.22 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel (LS-FFL-0527)LS-FFL-0527

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 1/1.8", 5 MP, C-mount Machine Vision Lens. At a glance: focal length 12 mm; format 1/1.8"; resolution 5.0 Megapixel; aperture F2.2 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0527
Format1/1.8"
Angle of view (1/1.8")37.3 x 30 x 23 deg

Optics

Focal length12 mm
ApertureF2.2 Manual iris
M.O.D.0.1
Distortion<0.3%
Filter threadM25.5 x P0.5

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

Sizedia. 26.8 x 23.5 mm
MountC
Weight85 g
Shipping weight (estimated)0.22 kg

Other models in the 1/1.8" machine vision lenses (LS-FFL-S83) series

See all 13 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0522 4 mm, 1/1.8", 5 MP, C-mount $159.00 Ships in 2-3 weeks View
LS-FFL-0521 3.5 mm, 1/1.8", 3 MP, C-mount $159.00 Ships in 2-3 weeks View
LS-FFL-0523 6 mm, 1/1.8", 5 MP, C-mount $169.00 Ships in 2-3 weeks View
LS-FFL-0524 8 mm, 1/1.8", 5 MP, C-mount $169.00 Ships in 2-3 weeks View
LS-FFL-0525 8 mm, 1/1.8", 5 MP, C-mount $169.00 Ships in 2-3 weeks View
LS-FFL-0526 12 mm, 1/1.8", 5 MP, C-mount $179.00 Ships in 2-3 weeks View
LS-FFL-0528 16 mm, 1/1.8", 5 MP, C-mount $189.00 Ships in 2-3 weeks View
LS-FFL-0529 25 mm, 1/1.8", 5 MP, C-mount $199.00 Ships in 2-3 weeks View
LS-FFL-0530 35 mm, 1/1.8", 5 MP, C-mount $229.00 Ships in 2-3 weeks View
LS-FFL-0531 35 mm, 1/1.8", 6 MP, C-mount $229.00 Ships in 2-3 weeks View
LS-FFL-0532 50 mm, 1/1.8", 5 MP, C-mount $249.00 Ships in 2-3 weeks View
LS-FFL-0533 75 mm, 1/1.8", 5 MP, C-mount $309.00 Ships in 2-3 weeks View
