Machine vision lenses
75 mm, 1.1", 12 MP, C-mount Macro Lens (LS-FFL-1453)
Model LS-FFL-1453
- Focal length75 mm
- Magnification0.18x-0.38x
- MountC-mount
- Sensor1.1"
- Working distance257-471 mm
- ApertureF3.8 Manual Iris
$589.00
Ships in 2-3 weeks
0.39 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
75 mm, 1.1", 12 MP, C-mount Macro Lens. Industrial macro lenses for measuring small objects at short distances where space is restricted; they solve many tasks that previously needed ultra-long focal length or even telecentric lenses. Variable magnification, variable working distance and an adjustable aperture make them flexible to use. At a glance: magnification 0.18x-0.38x; working distance 257-471 mm; focal length 75 mm; format 1.1"; resolution 12 Megapixel.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1453 |
|---|---|
| Format | 1.1" |
| Flange back | 17.526 mm |
| Object to image distance (O/I) | 357-557 mm |
| Angle of view (1.1", HxV) | 78 x 58 deg |
Optics
| Focal length | 75 mm |
|---|---|
| Aperture | F3.8 Manual Iris |
| Working distance | 257-471 mm |
| Magnification | 0.18x-0.38x |
| Distortion | <0.05% |
| Field of view (1.1", HxV) | 78 x 58 mm at 0.18x |
| F-number range | F3.8-16 (±10%) |
| Filter thread | M27 x P0.5-6H |
| M.O.D. | 0.257 m |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|
Environment and compliance
| Storage temperature | -20 to +60 °C |
|---|

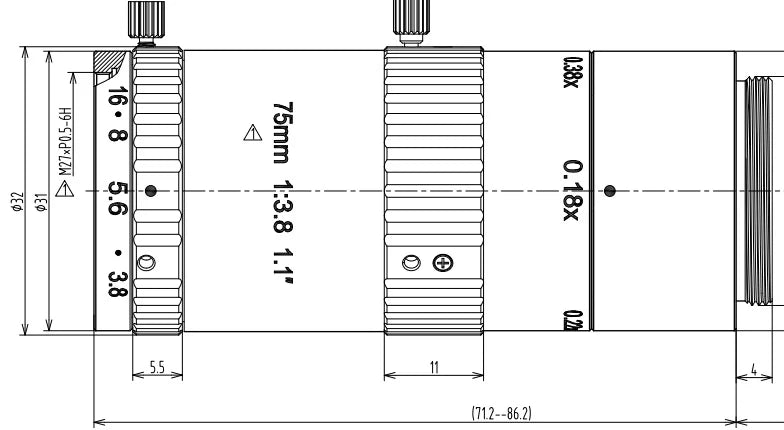

Mechanical
| Size | dia. 32 x 75.2 mm |
|---|---|
| Mount | C |
| Weight | 210 g |
| Shipping weight (estimated) | 0.39 kg |
Other models in the Macro lenses (LS-FFL-S131) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1449 | 16 mm, 1.1", 12 MP, C-mount | $489.00 | Ships in 2-3 weeks | View |
| LS-FFL-1450 | 25 mm, 1.1", 12 MP, C-mount | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-1451 | 35 mm, 1.1", 12 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-1452 | 50 mm, 1.1", 12 MP, C-mount | $549.00 | Ships in 2-3 weeks | View |
| LS-FFL-1448 | 90 mm, 1.2", 20 MP, C-mount | $849.00 | Ships in 2-3 weeks | View |
