Machine vision lenses
16 mm, 1.1", 12 MP, C-mount Macro Lens (LS-FFL-1449)
Model LS-FFL-1449
- Focal length16mm
- Magnification-0.25x ~ -0.03x
- MountC-mount
- Sensor1.1"
- Working distance52-546mm
- ApertureF2.8~16 (+/-10%)
$489.00
Ships in 2-3 weeks
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm, 1.1", 12 MP, C-mount Macro Lens. A 16 mm F2.8 C-mount industrial macro lens for 1.1" 12-megapixel cameras with variable magnification (-0.25x to -0.03x), 52-546 mm working distance and adjustable aperture. At a glance: magnification -0.25x ~ -0.03x; working distance 52-546mm; focal length 16mm; format 1.1" (dia. 17.6); resolution 12 Megapixel.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1449 |
|---|---|
| Format | 1.1" (dia. 17.6) |
| Flange back | 17.526mm |
| FOV at 52 mm WD (1.1", HxV) | 56.6 x 42 mm |
| FOV at 546 mm WD (1.1", HxV) | 474 x 356 mm |
| Angle of view (1.1", HxV) | 56.6 x 42 deg |
Optics
| Focal length | 16mm |
|---|---|
| Aperture | F2.8~16 (+/-10%) |
| Object-to-image distance | 115.5~606.9mm |
| Distortion (TV) | <0.33% |
| Working distance | 52-546mm |
| Magnification | -0.25x ~ -0.03x |
| Filter thread | M28.5 x P0.5-6H |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|
Environment and compliance
| Storage temperature | -20~+60°C |
|---|

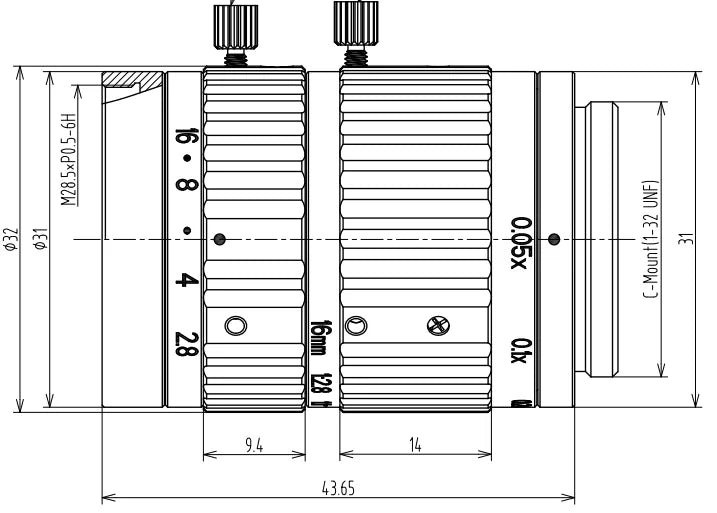

Mechanical
| Mount | C-Mount |
|---|---|
| Size | dia. 32 x 43.65 mm |
| Shipping weight (estimated) | 0.52 kg |
