35 mm, 1.1", 10 MP, C-mount Liquid-Lens Autofocus Lens (LS-FFL-1417)
  • 35 mm, 1.1", 10 MP, C-mount Liquid-Lens Autofocus Lens (LS-FFL-1417)

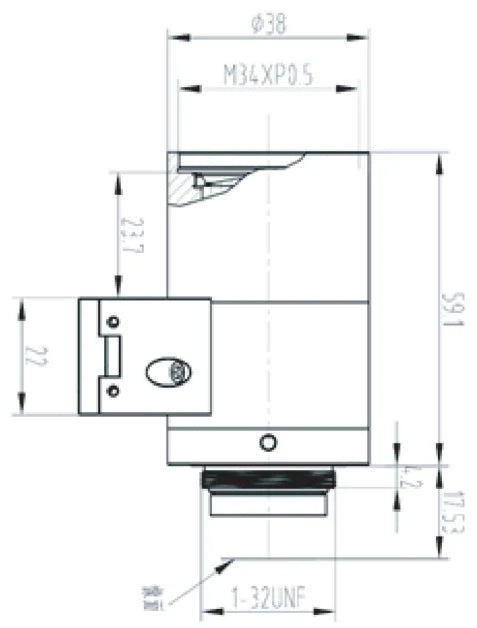

  • LS-FFL-1417 dimensions (mm)

Machine vision lenses

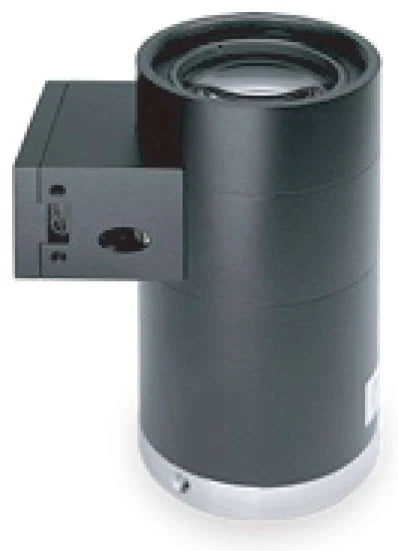

35 mm, 1.1", 10 MP, C-mount Liquid-Lens Autofocus Lens (LS-FFL-1417)

Model LS-FFL-1417

  • Focal length35 mm
  • MountC-mount
  • Sensor1.1"
  • ApertureF6.3
  • Resolution0.3 > @110 lp/mm
$959.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 mm, 1.1", 10 MP, C-mount Liquid-Lens Autofocus Lens (LS-FFL-1417)LS-FFL-1417

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35 mm, 1.1", 10 MP, C-mount Liquid-Lens Autofocus Lens. Liquid-lens 35 mm autofocus lens for 1.1" sensors (10 MP) driven by the passive random-access autofocus algorithm, focusing in under 0.8 s on objects of unknown size, with ROI focus and depth-of-field merging. At a glance: effective working distance 250-1000 mm; focal length 35 mm; sensor resolution 10 MP; resolution 0.3 > @110 lp/mm; aperture F6.3.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1417
Angle of view (1.1", DxHxV)26.5 x 21.5 x 15.8 deg
Angle of view (2/3", DxHxV)16.8 x 13 x 10.9 deg
Aliaspassive autofocus-RT-L-11FA3563

Optics

Image sizedia. 17.6 mm
Focal length35 mm
Effective working distance250-1000 mm
Suggested working distance250-500 mm
ApertureF6.3
Distortion<0.2%
Filter threadM34 x P0.5
Autofocus time<0.8 s
IrisFixed
Focus controlMotorized

Sensor and imaging

Resolution0.3 > @110 lp/mm
Sensor resolution10 MP

Interfaces and I/O

ConnectorMicro

Light

Wavelengthvisible

Electrical

Input voltage4.5-5.5 V
Input current<50 mA

Mechanical

MountC
Sizedia. 38 x 46.25 mm
Shipping weight (estimated)0.52 kg

Other models in the Liquid-Lens Autofocus lenses (LS-FFL-S126) series

See all 4 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-1415 16 mm, 1.1", 10 MP, C-mount $959.00 Ships in 2-3 weeks View
LS-FFL-1416 18 mm, 1.1", 10 MP, C-mount $959.00 Ships in 2-3 weeks View
LS-FFL-1418 75 mm, 1.2", 10 MP, C-mount $959.00 Ships in 2-3 weeks View
