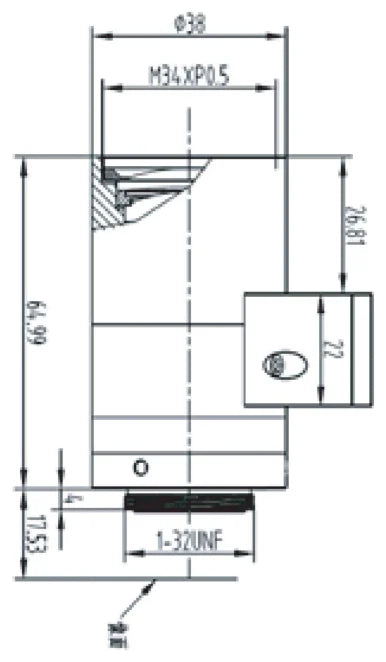

  • LS-FFL-1416 dimensions (mm)

Machine vision lenses

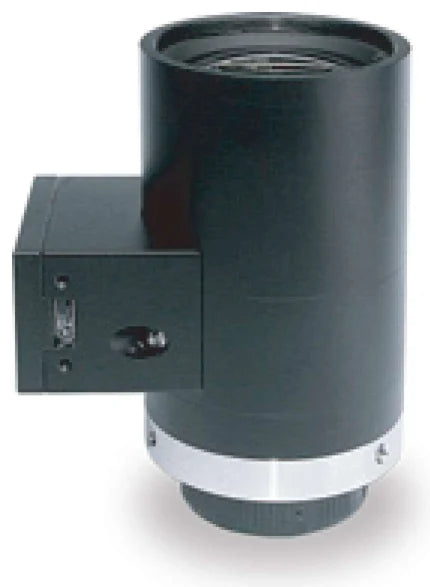

18 mm, 1.1", 10 MP, C-mount Liquid-Lens Autofocus Lens (LS-FFL-1416)

Model LS-FFL-1416

  • Focal length18 mm
  • MountC-mount
  • Sensor1.1"
  • ApertureF5.6
  • Resolution0.3 > @125 lp/mm
$959.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

18 mm, 1.1", 10 MP, C-mount Liquid-Lens Autofocus Lens (LS-FFL-1416)LS-FFL-1416

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

18 mm, 1.1", 10 MP, C-mount Liquid-Lens Autofocus Lens. Liquid-lens 18 mm autofocus lens for 1.1" sensors (10 MP) driven by the passive random-access autofocus algorithm, focusing in under 0.8 s on objects of unknown size, with ROI focus and depth-of-field merging. At a glance: effective working distance 100-2000 mm; focal length 18 mm; sensor resolution 10 MP; resolution 0.3 > @125 lp/mm; aperture F5.6.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1416
Angle of view (1.1", DxHxV)47 x 42 x 23 deg
Angle of view (2/3", DxHxV)27 x 21.6 x 16.3 deg
Aliaspassive autofocus-RT-L-11FA1856

Optics

Image sizedia. 17.6 mm
Focal length18 mm
Effective working distance100-2000 mm
Best working distance200-500 mm
ApertureF5.6
Distortion<0.5%
Filter threadM34 x P0.5
Autofocus time<0.8 s
IrisFixed
Focus controlMotorized

Sensor and imaging

Resolution0.3 > @125 lp/mm
Sensor resolution10 MP

Interfaces and I/O

ConnectorMicro

Light

Wavelengthvisible

Electrical

Input voltage4.5-5.5 V
Input current<50 mA

Mechanical

MountC
Sizedia. 38 x 64.99 mm
Shipping weight (estimated)0.52 kg
