Lenses

C-mount machine vision lenses

Choose the lens beyond its mount

Choose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.

All Machine vision lenses

1330 models Configure a systemAll lenses
C-mount machine vision lenses

1273-1296 of 1330 models

Products

Compare
LS-FFL-044316 mm, 2/3", C-mount anti-vibration machine vision lens 16 mmC-mount2/3"100~1500 mmF1.6-$249.00 Ships in 2-3 weeks
LS-FFL-044212 mm, 2/3", C-mount anti-vibration machine vision lens 12 mmC-mount2/3"100~1500 mmF1.6-$239.00 Ships in 2-3 weeks

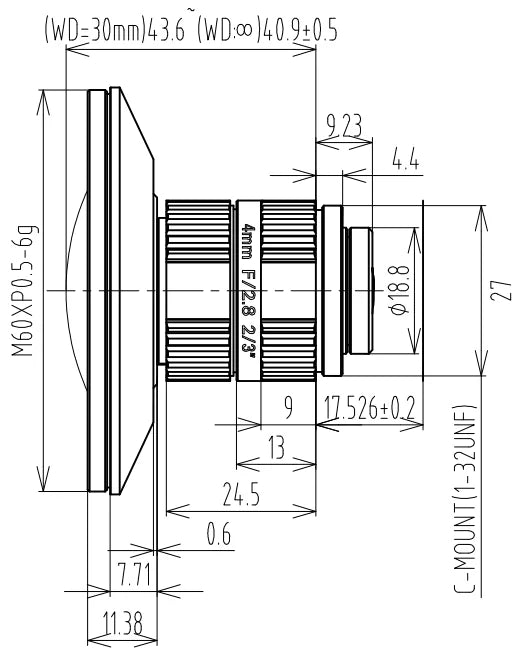

LS-FFL-04474 mm, 2/3", 5 MP, C-mount anti-vibration machine vision lens 4 mmC-mount2/3"-F2.85 MP$299.00 Ships in 2-3 weeks
LS-FFL-04418 mm, 2/3", C-mount anti-vibration machine vision lens 8 mmC-mount2/3"100~1500 mmF1.6-$239.00 Ships in 2-3 weeks
LS-FFL-038450 mm, 2/3", 12 MP, C-mount machine vision lens, WD 100 mm 50 mmC-mount2/3"100-300 mm--$199.00 Ships in 2-3 weeks
LS-FFL-039050 mm, 2/3", 12 MP, C-mount machine vision lens, WD 300 mm 50 mmC-mount2/3"300-INF.--$199.00 Ships in 2-3 weeks
LS-FFL-038335 mm, 2/3", 12 MP, C-mount machine vision lens, WD 80 mm 35 mmC-mount2/3"80-220 mm--$259.00 Ships in 2-3 weeks
LS-FFL-038935 mm, 2/3", 12 MP, C-mount machine vision lens, WD 150 mm, M30.5 * P0.5 filter thread 35 mmC-mount2/3"150-1500 mm--$259.00 Ships in 2-3 weeks
LS-FFL-038825 mm, 2/3", 12 MP, C-mount machine vision lens, M30.5 * P0.5 filter thread 25 mmC-mount2/3"100-1500 mm--$229.00 Ships in 2-3 weeks
LS-FFL-038716 mm, 2/3", 12 MP, C-mount machine vision lens, M30.5 * P0.5 filter thread 16 mmC-mount2/3"100-1500 mm--$209.00 Ships in 2-3 weeks
LS-FFL-038612 mm, 2/3", 12 MP, C-mount machine vision lens, WD 100 mm 12 mmC-mount2/3"100-1500 mm--$139.00 Ships in 2-3 weeks
LS-FFL-03858 mm, 2/3", 12 MP, C-mount machine vision lens 8 mmC-mount2/3"150-INF.--$139.00 Ships in 2-3 weeks
LS-FFL-038250 mm, 4/3", C-mount machine vision lens 50 mmC-mount4/3"300-INF.--$319.00 Ships in 2-3 weeks
LS-FFL-038135 mm, 4/3", C-mount machine vision lens 35 mmC-mount4/3"200-INF.--$419.00 Ships in 2-3 weeks
LS-FFL-038025 mm, 4/3", C-mount machine vision lens 25 mmC-mount4/3"150-INF.--$399.00 Ships in 2-3 weeks
LS-FFL-037916 mm, 4/3", C-mount machine vision lens 16 mmC-mount4/3"100-INF.--$269.00 Ships in 2-3 weeks
LS-FFL-037812 mm, 4/3", C-mount machine vision lens 12 mmC-mount4/3"150-INF.--$259.00 Ships in 2-3 weeks
LS-FFL-037750 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm 50 mmC-mount1.2"150-INF.--$409.00 Ships in 2-3 weeks
LS-FFL-037635 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm 35 mmC-mount1.2"150-INF.--$449.00 Ships in 2-3 weeks
LS-FFL-037525 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm 25 mmC-mount1.2"150-INF.--$519.00 Ships in 2-3 weeks
LS-FFL-037420 mm, 1.2", 25 MP, C-mount machine vision lens 20 mmC-mount1.2"150-INF.--$359.00 Ships in 2-3 weeks
LS-FFL-037316 mm, 1.2", 25 MP, C-mount machine vision lens, WD 150 mm 16 mmC-mount1.2"150-INF.--$349.00 Ships in 2-3 weeks
LS-FFL-037275 mm, 1", 20 MP, C-mount machine vision lens 75 mmC-mount1"200-INF.--$449.00 Ships in 2-3 weeks
LS-FFL-037012 mm, 1.1", 20 MP, C-mount machine vision lens, WD 100 mm 12 mmC-mount1.1"100-INF.--$339.00 Ships in 2-3 weeks

Choose the lens beyond its mount

A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.

  • Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
  • Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
  • Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.

Configure a system · Browse all Machine vision lenses
